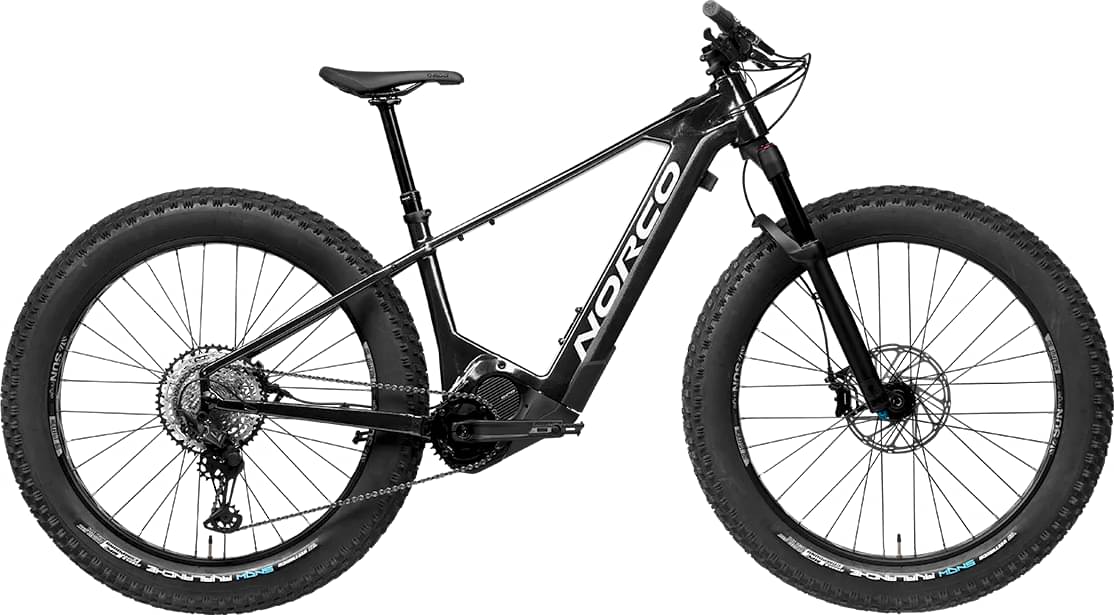

Norco Bigfoot VLT 1 2025
2025 E-bike
Estimate price |
5,598$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Manitou Mastodon Pro
-
Groupset XT, SLX -
Suspension Hardtail -
Motor Shimano 85Nm mid-drive -
Battery Removable. 900Wh, 720Wh and 540Wh Options. -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 166cm
MD
163cm - 175cm
LG
172cm - 184cm
XL
181cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Butted X6 Aluminum
Suspension Fork
Manitou Mastodon Pro EXT, 100mm Travel
Drivetrain
Rear Derailleur
Shimano XT RD-M8100
Front Derailleur
N/A
Shift Levers
Shimano SLX SL-M7100-IR
Cassette
Shimano SLX, 10/51, 12 Speed
Crank
Samox Alloy, 32T, 165mm
Chain
Shimano Deore
Pedals
Nylon Flat
Wheels
Front Hub
Bear Pawls Sealed Bearing, 15x150mm, 6-bolt
Rear Hub
Bear Pawls Sealed Bearing, 12x197mm, Micro Spline, 6 bolt
Rims
Sun Ringle Mulefut SL V2, 27.5", 32H
Tires
Front: Vee Snow Avalanche, TLR, 4.5", 120 TPI, Studdable, Rear: Vee Snow Avalanche, TLR, 4.5", 120 TPI, Studdable
Brakes
Brakes
Front: SRAM DB8, Sintered Pads, Rear: SRAM DB8, Sintered Pads
Brake Levers
SRAM DB8
Cockpit
Stem
6061 Alloy, 50mm Length, 35mm Clamp
Handlebar
Butted 6061 Alloy, 780mm, 20mm Rise
Grips
WTB Waffle Lock-On
Headset
FSA No.55R Tapered
Seat
Saddle
SDG Bel-Air V3
Seatpost
TranzX YSI22PLQ Dropper, 34.9mm, 150mm (S), 170mm (M, L), 200mm (XL)
Motor & Battery
Motor
Shimano EP8 Drive Unit
Battery
Removable. 900Wh, 720Wh and 540Wh Options.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.502 mm | 1.402 mm | 1.333 mm | 1.273 mm |
| Bottom Bracket Height | 321 mm | 321 mm | 321 mm | 321 mm |
| Front Center | 705 mm | 735 mm | 769 mm | 803 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 105 mm | 105 mm | 105 mm | 105 mm |
| Stack | 631 mm | 631 mm | 640 mm | 649 mm |
| Reach | 420 mm | 450 mm | 480 mm | 510 mm |
| Top Tube Length | 579 mm | 605 mm | 633 mm | 661 mm |
| Seat Tube Angle | 75.9 ° | 76.2 ° | 76.5 ° | 76.8 ° |
| Seat Tube Length | 385 mm | 390 mm | 410 mm | 460 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1156 mm | 1186 mm | 1220 mm | 1254 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 677 mm | 678 mm | 688 mm | 726 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 163 cm | 172 cm | 181 cm |
| Rider Max Height | 166 cm | 175 cm | 184 cm | 191 cm |
