Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Tiagra, FSA -
Suspension Rigid -
Drivetrain 3 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Cabot Touring Double Butted Chromoly
Suspension Fork
Cabot Touring Chromoly
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Tiagra RD-4600
Front Derailleur
Shimano Tiagra FD-4603
Shift Levers
Shift cable casing - Grey
Cassette
Shimano Tiagra CS-4600 12-30T 10spd
Crank
FSA Gossamer 50/39/30 - Black
Bottom Bracket
FSA MegaExo
Chain
Shimano Tiagra CN-4601
Chain Tensioner
N/A
Pedals
Alloy silver body w/black alloy cage
Wheels
Front Hub
Shimano Tiagra HB-4600 36hole - Silver
Rear Hub
Shimano Tiagra FH-4600 36hole - Silver
Rims
Freedom Ryder 23 700c 36hole - Black
Tires
Continental CityRIDE 700c x 32c
Brakes
Brakes
Tektro Oryx 992A canti - Black
Brake Levers
Shimano Tiagra ST-4500
Disk Rotors
N/A
Cockpit
Stem
Norco High Rise 35degree - Black
Handlebar
Ritchey BioMax
Grips
Shockproof Wrap - Black
Headset
FSA Orbit DL - Black
Seat
Saddle
Norco Comfort Touring - Dark Brown
Seatpost
Norco - Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | - | - | - | - | - |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.55 mm | 1.59 mm | 1.64 mm | 1.68 mm |
| Bottom Bracket Height | 277 mm | 277 mm | 277 mm | 277 mm | 277 mm |
| Front Center | 596 mm | 602 mm | 608 mm | 612 mm | 616 mm |
| Rake | 51 mm | 52 mm | 52 mm | 51 mm | 52 mm |
| Trail | 65 mm | 61 mm | 58 mm | 56 mm | 51 mm |
| Stack | 542 mm | 563 mm | 584 mm | 605 mm | 626 mm |
| Reach | 360 mm | 363 mm | 367 mm | 370 mm | 372 mm |
| Top Tube Length | 512 mm | 527 mm | 542 mm | 557 mm | 572 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72.5 ° |
| Head Tube Length | 110 mm | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1028 mm | 1034 mm | 1040 mm | 1044 mm | 1048 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

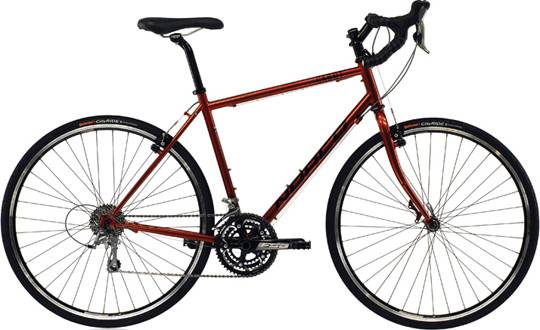

Cabot is a Norco Cabot model. There are 7 bikes that carry this model name.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Touring bikes average price
Our math shows that the average cost of a dependable Touring bike is 1007$. However, this doesn’t mean that if you spend less money on a Touring bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1199$. Comparing the average cost of a Touring bike to this one, you will see that Cabot price is 19.07% more expensive.
Cabot components
Fork material
When it comes to the fork, this bike has a steel one, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels
When leaving the production line, the Cabot model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco Cabot has Rim brakes installed. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
