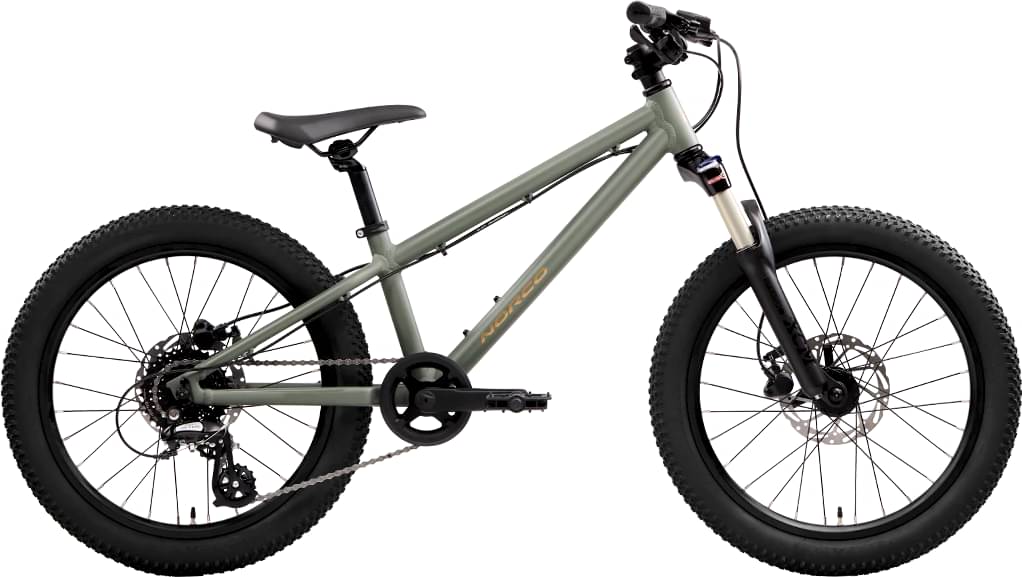

Norco Charger Youth 20 2025
2025 Youth
Estimate price |
679$
Weight | 10.63 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour XCR Air
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 1 × 8 -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
20"
115cm - 129cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum, 9x135mm QR, 20"
Suspension Fork
SR Suntour XCR Air w/LO, 63mm, 9X100 QR
Drivetrain
Rear Derailleur
Shimano Acera RD-M3020-8, 8sp, SGS
Shift Levers
Shimano Altus SL-M315-8R, 8sp, Rapid Fire plus
Cassette
Shimano Altus CS-HG31, 11-30T, 8sp
Crank
Alloy 3pc, 140mm, 28T Narrow Wide
Bottom Bracket
Sealed bearing, ST 68mm
Chain
KMC Z9
Pedals
Jr. MTB Flat, 9/16"
Wheels
Front Hub
Formula DC-1420 , 9x100mm QR, 28h, 6-bolt
Rear Hub
Formula DC-1425,10x135mm QR, HG, 28H, 6-bolt
Rims
Aluminum DW, 28h, 20" MTB
Tires
Front: CY Trail, 20x2.25", Wire, Rear: CY Trail, 20x2.25", Wire
Brakes
Brakes
Front: Tektro HD-M286, Resin Pads, Rear: Tektro HD-M286, Resin Pads
Brake Levers
Tektro HD-M286, Hydraulic 2-Finger Jr. Levers
Cockpit
Stem
Alloy 35mm Length, 31.8mm Clamp
Handlebar
Alloy Jr. Riser, 540mm, 30mm Rise
Grips
Norco Youth, 115mm Length
Headset
External Cup Ball Bearing, 1-1/8" EC 34
Seat
Saddle
Norco Youth, Steel Rail
Seatpost
Norco Alloy 27.2mm, 250mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 20" |
|---|---|
| Stack Reach Ratio | 1.312 mm |
| Bottom Bracket Height | 253 mm |
| Front Center | 573 mm |
| Rake | 40 mm |
| Trail | 77 mm |
| Stack | 433 mm |
| Reach | 330 mm |
| Top Tube Length | 462 mm |
| Seat Tube Angle | 73 ° |
| Seat Tube Length | 255 mm |
| Head Tube Angle | 65 ° |
| Head Tube Length | 90 mm |
| Chainstay Length | 338 mm |
| Wheelbase | 911 mm |
| Bottom Bracket Drop | 7 mm |
| Standover Height | 468 mm |
| Wheels | 20" |
| Rider Min Height | 115 cm |
| Rider Max Height | 129 cm |
