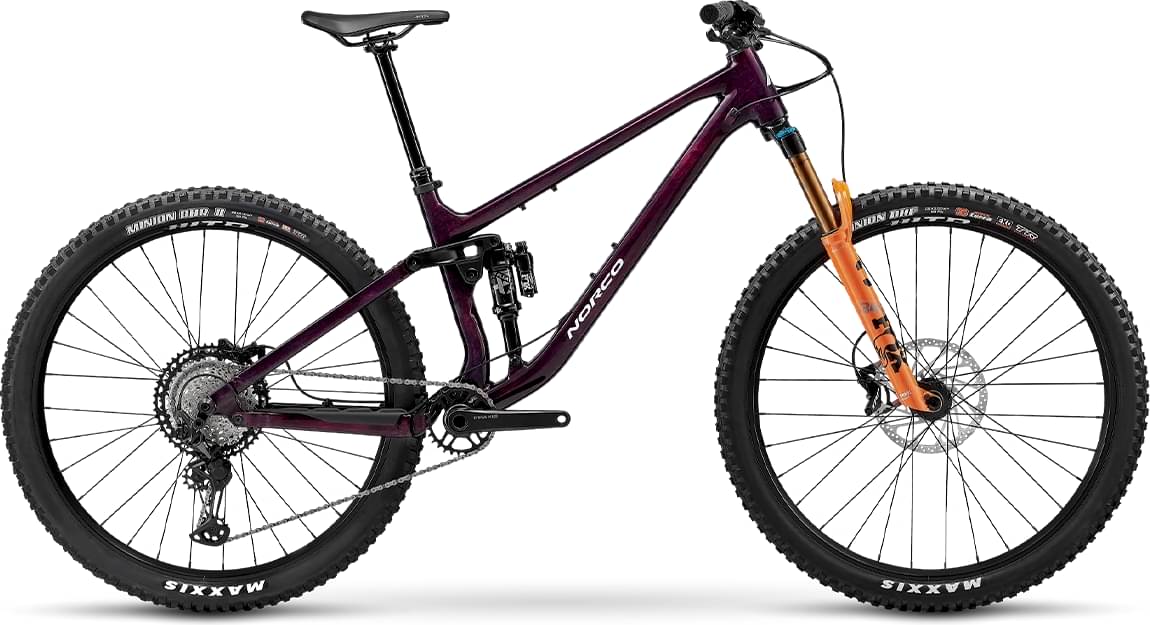

Norco Fluid FS A1 2025
2025 Mountain
Estimate price |
3,610$
Weight | 15.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Factory Float 34
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes TRP Trail EVO Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 166cm
MD
163cm - 175cm
LG
172cm - 184cm
XL
181cm - 193cm
XXL
190cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, 130mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™
Suspension Fork
Fox 34 Factory GRIP2, 140mm Travel, 44mm Offset
Rear Shock
Fox FLOAT X Performance Elite, 2-pos, 210x50mm, Custom Tune
Drivetrain
Rear Derailleur
Shimano XT RD-M8100
Shift Levers
Shimano XT SL-M8100-IR I-Spec EV
Cassette
Shimano XT CS-M8100, 10-51, 12 Speed
Crank
Praxis G2 Cadet M24, 30T, 170mm (S), 175mm (M - XXL)
Bottom Bracket
Praxis M24, BSA Threaded
Chain
Shimano XT CN-M8100
Pedals
VP Nylon Flat
Wheels
Front Hub
Bear Pawls Sealed Bearing, 15x110mm Boost, 6 Bolt
Rear Hub
Bear Pawls Sealed Bearing, 12x148mm Boost, Micro Spline, 6 Bolt
Rims
WTB ST Light, 29", 32H
Tires
Front: Continental Kryptotal Trail 2.4", Folding, Rear: Continental Xynotal Trail 2.4", Folding
Brakes
Brakes
Front: TRP Trail EVO, 4 Piston, Organic Pads, Rear: TRP Trail EVO, 4 Piston, Organic Pads
Brake Levers
TRP Trail EVO
Cockpit
Stem
6061 Alloy, 40mm Length, 35mm Clamp
Handlebar
6061 Butted Alloy, 800mm, 25mm Rise
Grips
WTB Wavelength
Headset
Sealed Bearing, Tapered
Seat
Saddle
SDG Bel Air V3 Lux Alloy
Seatpost
TranzX YSI34 Dropper, 34.9mm, 150mm (S), 170mm (M), 200mm (L, XL, XXL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.469 mm | 1.391 mm | 1.323 mm | 1.263 mm | 1.209 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm | 348 mm |
| Front Center | 743 mm | 777 mm | 812 mm | 846 mm | 880 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 128 mm | 128 mm | 128 mm | 128 mm | 128 mm |
| Stack | 617 mm | 626 mm | 635 mm | 644 mm | 653 mm |
| Reach | 420 mm | 450 mm | 480 mm | 510 mm | 540 mm |
| Top Tube Length | 574 mm | 602 mm | 630 mm | 659 mm | 687 mm |
| Seat Tube Angle | 76 ° | 76.3 ° | 76.7 ° | 77 ° | 77.3 ° |
| Seat Tube Length | 360 mm | 390 mm | 410 mm | 460 mm | 510 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 425 mm | 430 mm | 435 mm | 440 mm | 445 mm |
| Wheelbase | 1166 mm | 1205 mm | 1245 mm | 1284 mm | 1323 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 678 mm | 690 mm | 699 mm | 736 mm | 767 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 163 cm | 172 cm | 181 cm | 190 cm |
| Rider Max Height | 166 cm | 175 cm | 184 cm | 193 cm | 200 cm |
