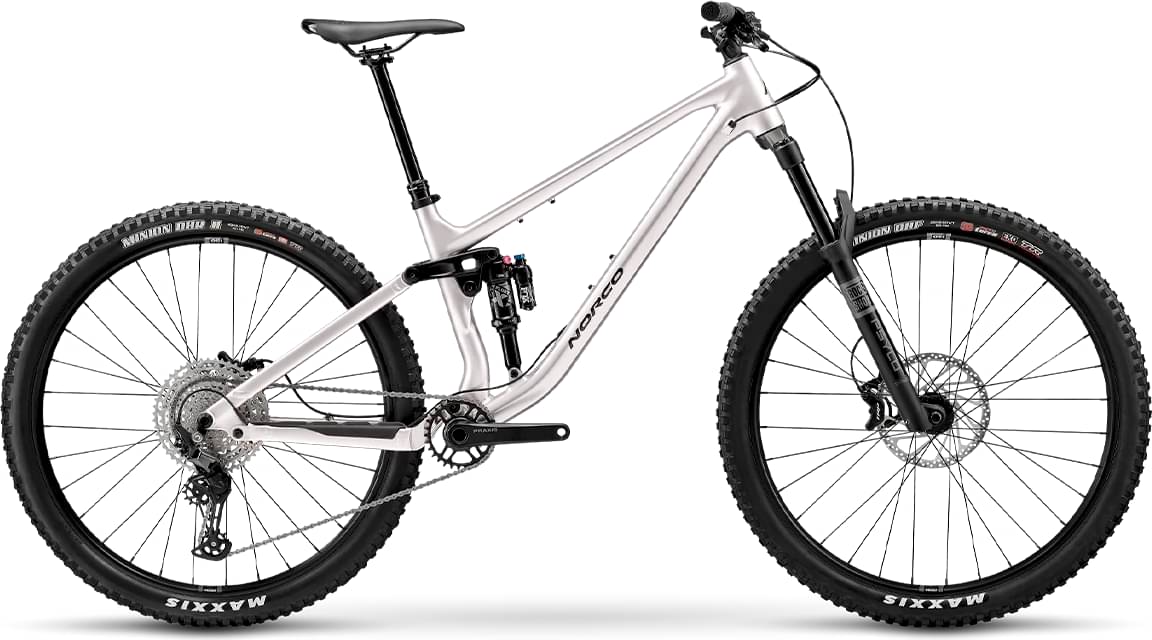

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Psylo
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes TRP Slate EVO Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 166cm
MD
163cm - 175cm
LG
172cm - 184cm
XL
181cm - 193cm
XXL
190cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fluid FS 6061 Alloy Frame 130mm
Suspension Fork
Rock Shox Psylo Gold 140mm, 29"
Rear Shock
Fox Float X Performance Elite, 2 Pos Lever/LSC/LSR/LV EVOL
Drivetrain
Rear Derailleur
Shimano Deore RD-M6100 12spd
Shift Levers
Shimano Deore SL-M6100-R 12spd
Cassette
Shimano Deore CS-M6100-12 10/51T 12spd
Crank
Praxis G2 Cadet M24 30T
Bottom Bracket
Praxis M24 BSA Threaded
Chain
Shimano Deore CN-M6100 12spd
Pedals
VP Nylon Flat Pedal
Wheels
Front Hub
Bear Pawls BMB-013 110x15 32H
Rear Hub
Bear Pawls BMB-004 148x12, 6 Bolt
Rims
WTB ST 29", 32H
Tires
Front: Continental Kryptotal Trail 29" x 2.4", Rear: Continental Xynotal Trail 29" x 2.4"
Brakes
Brakes
Front: TRP Slate EVO, Metallic Pads, Rear: TRP Slate EVO, Metallic Pads
Brake Levers
TRP Slate EVO
Cockpit
Stem
Norco 6061 Alloy 40mm/35mm
Handlebar
Norco 6061 DB Alloy, 800mm, 25mm
Grips
WTB Wavelength Grip
Headset
Zero Stack Sealed Cartridge Bearings - Tapered
Seat
Saddle
SDG Bel Air V3
Seatpost
TranzX YSI34 Post 34.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.469 mm | 1.391 mm | 1.323 mm | 1.263 mm | 1.209 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm | 348 mm |
| Front Center | 743 mm | 777 mm | 812 mm | 846 mm | 880 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 128 mm | 128 mm | 128 mm | 128 mm | 128 mm |
| Stack | 617 mm | 626 mm | 635 mm | 644 mm | 653 mm |
| Reach | 420 mm | 450 mm | 480 mm | 510 mm | 540 mm |
| Top Tube Length | 574 mm | 602 mm | 630 mm | 659 mm | 687 mm |
| Seat Tube Angle | 76 ° | 76.3 ° | 76.7 ° | 77 ° | 77.3 ° |
| Seat Tube Length | 360 mm | 390 mm | 410 mm | 460 mm | 510 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 425 mm | 430 mm | 435 mm | 440 mm | 445 mm |
| Wheelbase | 1166 mm | 1205 mm | 1245 mm | 1284 mm | 1323 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 678 mm | 690 mm | 699 mm | 736 mm | 767 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 163 cm | 172 cm | 181 cm | 190 cm |
| Rider Max Height | 166 cm | 175 cm | 184 cm | 193 cm | 200 cm |
