Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox Sektor
-
Groupset NX Eagle, Shimano -
Suspension Hardtail -
Motor Shimano 250W 70Nm mid-drive -
Battery In-Tube Battery, 630Wh Capacity -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Norco Fluid VLT, Aluminum, Boost 12x148mm Dropouts, Shimano Motor Mount
Suspension Fork
RockShox Sektor RL, 120mm Travel, Boost 15x110mm TA
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12 Speed
Shift Levers
SRAM NX Eagle, 12 Speed
Cassette
SRAM NX Eagle PG-1230, 11-50T, 12 Speed
Crank
Shimano FC-E8000, 165mm
Chain
SRAM NX Eagle, 12 Speed
Pedals
VP Nylon Flat Pedals, 9/16"
Wheels
Front Hub
Shimano Deore HB-M6010-B, Boost 15x110mm, CenterLock
Rear Hub
Shimano Deore FH-M6010-B, Boost 12x148mm, CenterLock
Rims
Alex EM30 650B Plus, 32 Hole, 30mm Internal Width, E-Bike Rated
Tires
WTB Trail Boss, 27.5x2.6", Comp
Brakes
Brakes
SRAM Guide T 4 Piston Hydraulic Disc, 200mm Center Lock Rotor
Brake Levers
Shimano Deore BL-M6000
Cockpit
Stem
6061 Aluminum, 50mm Length, 31.8mm Clamp Diameter
Handlebar
Norco 6061 Aluminum, 800mm Wide, 20mm Rise, 35mm Diameter
Grips
VP, Lock-On
Headset
ACROS AZ-44BL Block Lock Upper, AZ-56 Lower, Zero Stack Internal
Seat
Saddle
WTB Volt Sport
Seatpost
TranzX YSP-23JL Stealth Dropper, 100mm (S) | 125mm (M) | 130mm (L/XL) Travel, 31.6mm, 1x Lever
Motor & Battery
Motor
Shimano STEPS E8000
Battery
In-Tube Battery, 630Wh Capacity
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.35 mm | 1.28 mm | 1.22 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm |
| Front Center | 694 mm | 728 mm | 762 mm | 796 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 101 mm | 101 mm | 101 mm | 101 mm |
| Stack | 590 mm | 599 mm | 608 mm | 617 mm |
| Reach | 415 mm | 445 mm | 475 mm | 505 mm |
| Top Tube Length | 572 mm | 604 mm | 637 mm | 669 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 405 mm | 435 mm | 470 mm | 510 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1132 mm | 1166 mm | 1200 mm | 1234 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 760 mm | 766 mm | 772 mm | 778 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

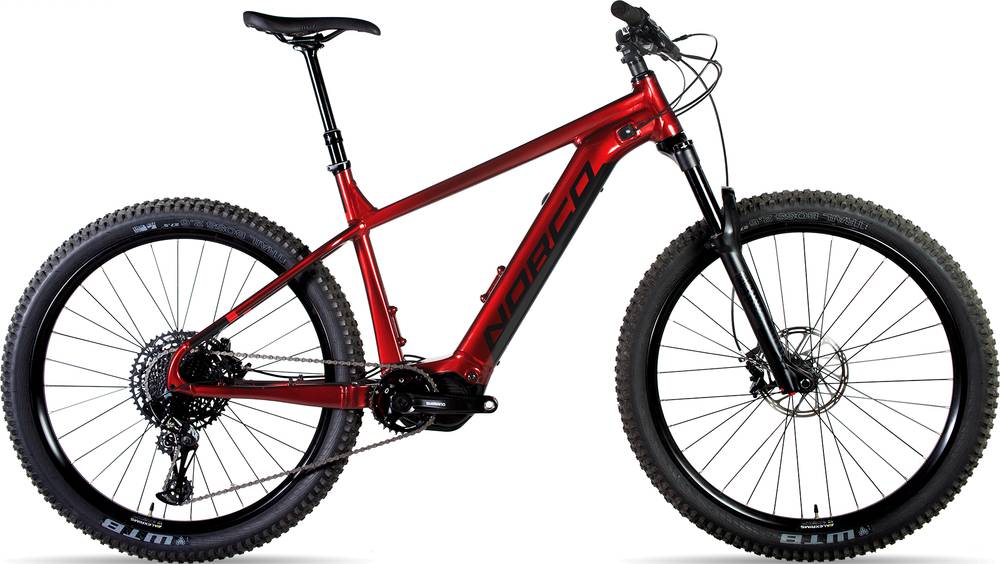

Fluid VLT 1 completes the Norco E Fluid model. There are 7 e-bikes that carry this model name.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Norco released this model in 2019, its price was 4499$. Comparing the average cost of a Trail e-bike to this one, you will see that Fluid VLT 1 price is 33.7% more expensive.
Fluid VLT 1 components
Fork
The fork installed on this bike is the RockShox Sektor model. The travel on this model is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
As for the wheels, Norco Fluid VLT 1 2019, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Fluid VLT 1 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Norco Fluid VLT 1 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Norco Fluid VLT 1 includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
