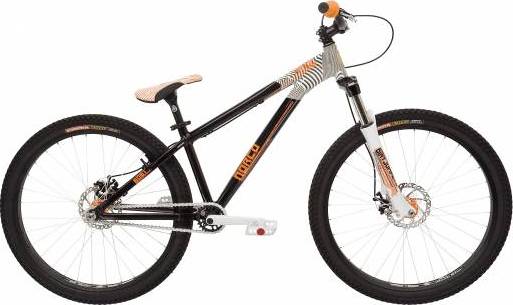

Norco HAVOC 2009
2009 Mountain
Estimate price |
925$
Weight | 14.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork Marzocchi
-
Suspension Hardtail -
Drivetrain Single Speed -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 alloy, slotted dropout, integrated headset, ISCG mount
Suspension Fork
Marzocchi Dirt Jumper 3, 100mm travel, 1-1/8” steer tube
Rear Shock
N/A
Drivetrain
Rear Derailleur
N/A
Front Derailleur
N/A
Shift Levers
N/A
Cassette
Single 14T conversion sprocket with spacers
Crank
CR-24C chromoly BMX crank, 28T 3 mm thick sprocket
Bottom Bracket
48 spline, 19 mm axle BMX BB for Euro BB
Chain
KMC K-710 BMX white nano plated
Pedals
Oddessey Twisted pedal, white plastic
Wheels
Front Hub
KT alloy disc hub, 32 h, orange
Rear Hub
KT 135 x 10 nutted, 8 spd, 32 H, orange
Rims
Alien Nation PBR 26”, 32 hole, black
Spokes
Stainless White 2.0
Tires
Kenda K-Rad 26 x 2.30
Brakes
Brakes
Hayes MX-4 mechanical, 6” rotor
Brake Levers
Tektro MT-2.0
Cockpit
Stem
AS-13 alloy stem 31.8 mm bar, 60 mm ext
Handlebar
Alloy 31.8 mm , 670 mm width 50 mm rise bar, black
Grips
Alien Nation Mr. Hand rubber, orange
Headset
FSA Impact 8D integrated
Seat
Saddle
Pivotal thin seat, custom Norco design cover, hollow bolt
Seatpost
Pivotal forged alloy, 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Bottom Bracket Height | 323 mm | 323 mm |
| Front Center | 656 mm | 669 mm |
| Top Tube Length | 563 mm | 576 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 330 mm | 330 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° |
| Head Tube Length | 115 mm | 115 mm |
| Chainstay Length | 393 mm | 393 mm |
| Wheelbase | 1049 mm | 1061 mm |
| Bottom Bracket Drop | 20 mm | 20 mm |
| Standover Height | 733 mm | 729 mm |
| Wheels | 26" | 26" |
About this model
HAVOC belongs to the Norco Havoc model. There are 8 bikes that carry this model name.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Dirt Jump bikes average price
If you want to purchase a solid Dirt Jump bike, it is important to know that the average cost is 863$. However, you could also get a good Dirt Jump bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Norco released this model in 2009, its price was 925$. In conclusion, this bike price is 7.18% higher than the price of the average Dirt Jump bike.
Dirt Jump bikes average weight
Dirt Jump bikes have an average weight of 12.37 kg (27.27 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
HAVOC weighs 14.5 kg (31.97 lbs) and is much heavier than the average. In short, the average Dirt Jump bike weight is 17.22% lower than this one.
HAVOC components
Fork
The fork installed on this bike is the Marzocchi model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The HAVOC 2009 bike is equipped with 26″ aluminum wheels when leaving the factory. Being a little smaller, these wheels will fit both small and tall riders. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Nothing is more important on a bike than its ability to brake properly. Norco HAVOC is equipped with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
