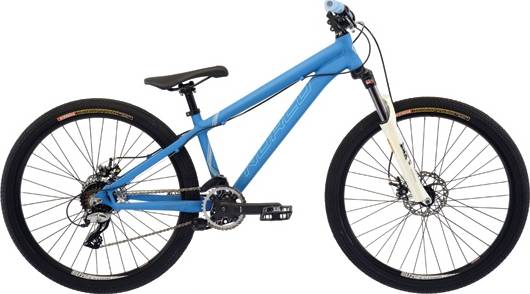

Norco Magnum 2012
2012 Mountain
Estimate price |
725$
Weight | 14.95 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork RST
-
Groupset KMC -
Suspension Hardtail -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy Dirt/Street frames, Semi integrated headtube, mechnically formed TT and DT
Suspension Fork
RST DIRT
Rear Shock
N/A
Drivetrain
Rear Derailleur
N/A
Front Derailleur
N/A
Shift Levers
N/A
Cassette
Shimano Acera 8spd
Crank
KMC 8spd
Bottom Bracket
FSA Step Up Cranks DH Single 36T
Chain
Shimano 8spd
Pedals
E 13 LS1
Wheels
Front Hub
Alloy Flat Pedals
Rear Hub
KT Alloy Disc
Rims
Stainless steel
Spokes
KT Alloy 8spd Disc
Tires
Kenda K-Rad 26 x 2.30
Brakes
Brakes
Promax 6" mechanical disc brake"
Brake Levers
Tektro Alloy
Cockpit
Stem
Alloy 6061 50mm
Handlebar
Alloy 6061 740mm/25mm
Grips
Lock on grips
Headset
FSA Internal Headset
Seat
Saddle
Norco Custom Saddle
Seatpost
Alloy 6061
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Short | Long |
|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.38 mm |
| Bottom Bracket Height | 325 mm | 325 mm |
| Front Center | 656 mm | 669 mm |
| Rake | 44 mm | 44 mm |
| Trail | 88 mm | 88 mm |
| Stack | 558 mm | 558 mm |
| Reach | 392 mm | 405 mm |
| Top Tube Length | 563 mm | 576 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 330 mm | 330 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° |
| Head Tube Length | 115 mm | 115 mm |
| Chainstay Length | 418 mm | 418 mm |
| Wheelbase | 1074 mm | 1087 mm |
| Bottom Bracket Drop | 15 mm | 15 mm |
| Standover Height | 736 mm | 732 mm |
| Front Travel | 100 mm | 100 mm |
| Wheels | 26" | 26" |
Model Overview
Magnum belongs to the Norco Magnum model. Norco released 7 bikes variations of this model so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Dirt Jump bikes
According to our math, the average price for a trustworthy Dirt Jump bike is 863$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Dirt Jump bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Norco released this model in 2012, its price was 725$. Comparing this to the average Dirt Jump bike price, we see that the price is 19.03% smaller.
Average weight for Dirt Jump bikes
On a deeper look, we notice that the average weight of a Dirt Jump bike is 12.37 kg (27.27 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Norco Magnum it’s weighing 14.95 kg (32.96 lbs). At this weight, is much heavier than average. In other words, this model is 20.86% heavier than the average Dirt Jump bike.
Magnum components
Fork
The Magnum comes factory-installed with the RST fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The Magnum 2012 bike is equipped with 26″ aluminum wheels when leaving the factory. These wheels give you great handling over your bike. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco Magnum has Mechanical Disc brakes installed. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
