Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork RST
-
Groupset Acera, FSA -
Suspension Hardtail -
Drivetrain 1 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy Magnum Frame
Suspension Fork
RST DIRT 100mm
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Acera 8spd
Front Derailleur
N/A
Shift Levers
Jagwire
Cassette
Shimano 8spd 11/34
Crank
FSA Step Up Cranks DH Single 36T
Bottom Bracket
FSA Isis BB
Chain
KMC 8spd Chain
Chain Tensioner
E-13 LS1 Chainguide
Pedals
Kore Composite Pedals - Black
Wheels
Front Hub
Norco Alloy Disc 32H
Rear Hub
Norco Alloy 8spd Disc 32H
Rims
Alex TD25 DW 32H
Tires
Geax AKA 2.2
Brakes
Brakes
Tektro Novela 160mm Mech Disc Brake
Brake Levers
Tektro Alloy
Disk Rotors
N/A
Cockpit
Stem
Norco Alloy 6061 50mm
Handlebar
Norco Alloy 6061 740mm/25mm
Grips
T-One H20 Lock On Grips
Headset
FSA No. 10 w/16mm conical spacer
Seat
Saddle
Norco Custom Saddle
Seatpost
Norco Alloy 31.8
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | - | - |
|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.38 mm |
| Bottom Bracket Height | 325 mm | 325 mm |
| Front Center | 656 mm | 669 mm |
| Rake | 44 mm | 44 mm |
| Trail | 88 mm | 88 mm |
| Stack | 558 mm | 558 mm |
| Reach | 392 mm | 405 mm |
| Top Tube Length | 563 mm | 576 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 330 mm | 330 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° |
| Head Tube Length | 115 mm | 115 mm |
| Chainstay Length | 418 mm | 418 mm |
| Wheelbase | 1074 mm | 1087 mm |
| Bottom Bracket Drop | 15 mm | 15 mm |
| Front Travel | 100 mm | 100 mm |
| Wheels | 26" | 26" |
About this model

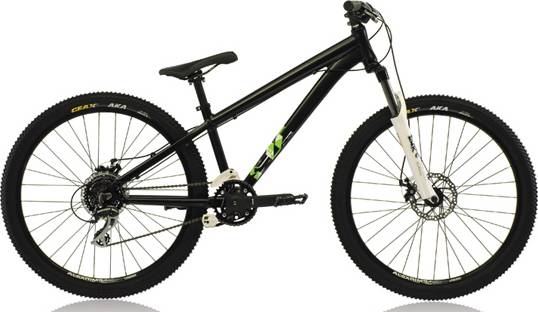

Magnum is a Norco Magnum model. 7 bikes variations carry this model name so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Dirt Jump bikes average price
If you want to purchase a solid Dirt Jump bike, it is important to know that the average cost is 863$. However, you could also get a good Dirt Jump bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Norco released this model in 2013, its price was 773$. Comparing this to the average Dirt Jump bike price, we see that the price is 11.64% lower.
Magnum components
Fork
The fork installed on this bike is the RST model. The travel on this model is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The Magnum 2013 bike is equipped with 26″ aluminum wheels when leaving the factory. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Nothing is more important on a bike than its ability to brake properly. Norco Magnum is equipped with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
