Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork RST
-
Groupset Altus -
Suspension Hardtail -
Drivetrain 1 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy Magnum Frame
Suspension Fork
RST DIRT 100mm
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Altus RD-M310 8spd
Front Derailleur
N/A
Shift Levers
N/A
Cassette
Shimano 8spd 11/34
Crank
Alloy 28T Cranks
Bottom Bracket
External Threaded BB
Chain
KMC Z-72
Chain Tensioner
Seat tube Mount Chainguide
Pedals
VP Grind
Wheels
Front Hub
Joytech D041DSE Alloy Disc QR
Rear Hub
Joytech D142TSE Alloy Disc QR 9spd
Rims
Alex MUS 30 26""
Tires
Kenda Small Block Eight 26" x 2.25"""
Brakes
Brakes
Tektro MD-280 160mm Mech Disc
Brake Levers
Tektro Alloy
Disk Rotors
N/A
Cockpit
Stem
Norco Alloy 6061 50mm
Handlebar
Norco 6061 DB Alloy 740mm/25mm
Grips
Norco Small Flange 130mm Grips w/bar end plugs
Headset
FSA No. 10 w/1.6mm Spacer
Seat
Saddle
Norco Dirt Saddle
Seatpost
Norco Alloy 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Short | Long |
|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.38 mm |
| Bottom Bracket Height | 325 mm | 325 mm |
| Front Center | 656 mm | 669 mm |
| Rake | 44 mm | 44 mm |
| Trail | 88 mm | 88 mm |
| Stack | 558 mm | 558 mm |
| Reach | 392 mm | 405 mm |
| Top Tube Length | 563 mm | 576 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 330 mm | 330 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° |
| Head Tube Length | 115 mm | 115 mm |
| Chainstay Length | 418 mm | 418 mm |
| Wheelbase | 1074 mm | 1087 mm |
| Bottom Bracket Drop | 15 mm | 15 mm |
| Standover Height | 736 mm | 732 mm |
| Front Travel | 100 mm | mm |
| Wheels | 26" | 26" |
About this model

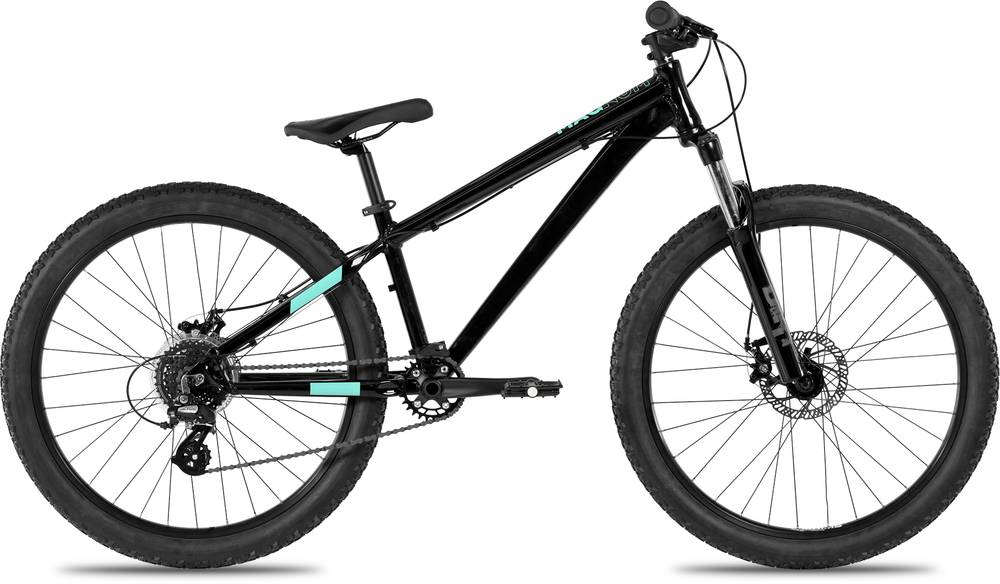

Magnum 6.1 is part of the Norco Magnum model. Norco released 7 bikes variations of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Dirt Jump bikes
According to our math, the average price for a trustworthy Dirt Jump bike is 863$. However, you could also get a good Dirt Jump bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 629$. Comparing this to the average Dirt Jump bike price, we see that the price is 37.2% smaller.
Overview of components
Fork
The fork installed on this bike is the RST model. The travel on this model is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on Magnum 6.1 are the 26″ aluminum type. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
Nothing is more important on a bike than its ability to brake properly. Norco Magnum 6.1 is equipped with Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
