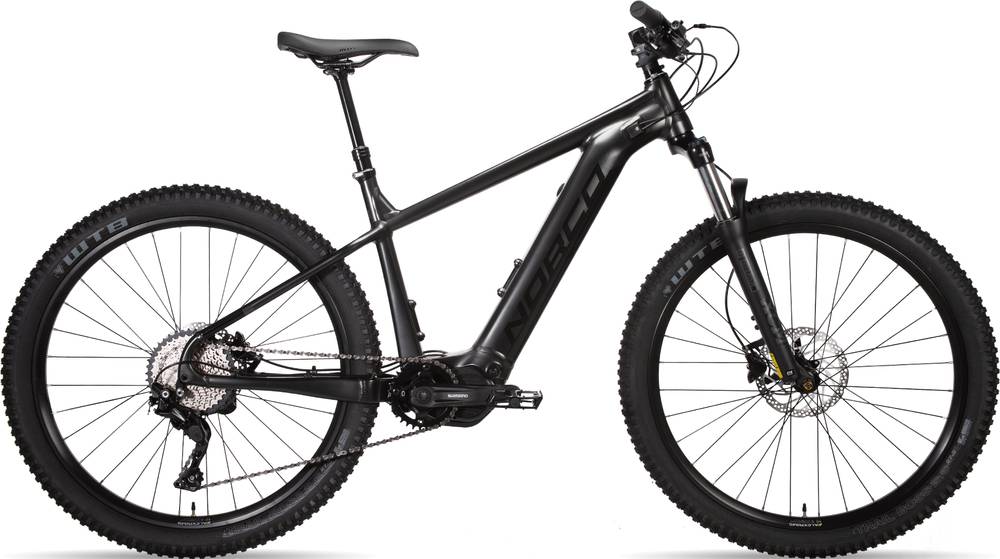

Norco Fluid VLT E-Mountain Bike 2019
2019 E-bike
Estimate price |
3,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery In-Tube Battery, 500Wh Capacity -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Norco Fluid VLT, Aluminum, Boost 12x148mm Dropouts, Shimano Motor Mount
Suspension Fork
SR Suntour XCM 34 LOR DS, 100mm Travel, Boost 15x110mm TA
Drivetrain
Rear Derailleur
Shimano Deore RD-M6000-GS, 10 Speed
Shift Levers
Shimano Deore SL-M6000-R, 10 Speed, Rapidfire Plus
Cassette
Shimano Deore CS-HG500, 11-42T, 10 Speed
Crank
Shimano FC-E8000, 165mm
Chain
KMC X10, 10 Speed, E-Bike Rated
Pedals
VP Nylon Flat Pedals, 9/16"
Wheels
Front Hub
Shimano Deore HB-M6010-B, Boost 15x110mm, CenterLock
Rear Hub
Shimano Deore FH-M6010-B, Boost 12x148mm, CenterLock
Rims
Alex EM30 650B Plus, 32 Hole, 30mm Internal Width, E-Bike Rated
Tires
WTB Trail Boss, 27.5x2.6", Comp
Brakes
Brakes
Shimano Altus BR-M365, Hydraulic Disc, 203mm Rotors
Brake Levers
Shimano Altus BR-M365, Hydraulic Disc
Cockpit
Stem
6061 Aluminum, 50mm Length, 31.8mm Clamp Diameter
Handlebar
Norco 6061 Aluminum, 800mm Wide, 20mm Rise, 35mm Diameter
Grips
VP, Lock-On
Headset
FSA Orbit 1.5 ZS No.57 HBS, Zero Stack Internal
Seat
Saddle
WTB Volt Sport
Seatpost
TranzX YSP-18JL Stealth Dropper, 100mm (S) | 125mm (M) | 130mm (L/XL) Travel, 31.6mm, 1x Lever
Motor & Battery
Motor
Shimano STEPS E7000
Battery
In-Tube Battery, 500Wh Capacity
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.35 mm | 1.28 mm | 1.22 mm |
| Bottom Bracket Height | 326 mm | 326 mm | 326 mm | 326 mm |
| Front Center | 696 mm | 730 mm | 764 mm | 798 mm |
| Rake | 47 mm | 48 mm | 48 mm | 48 mm |
| Trail | 100 mm | 99 mm | 99 mm | 99 mm |
| Stack | 590 mm | 599 mm | 608 mm | 617 mm |
| Reach | 415 mm | 445 mm | 475 mm | 505 mm |
| Top Tube Length | 572 mm | 604 mm | 637 mm | 669 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 405 mm | 435 mm | 470 mm | 510 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1134 mm | 1168 mm | 1202 mm | 1236 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 761 mm | 767 mm | 773 mm | 779 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Norco Fluid VLT E-Mountain Bike completes the Norco E Norco model. There are 2 e-bikes that carry this model name.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry e-bikes average price
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Norco Norco Fluid VLT E-Mountain Bike price was 3999$. Comparing this to the average Crosscountry e-bike price, we see that the price is 63.02% higher.
Overview of components
Fork
The fork installed on this bike is the SunTour XCM model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the Norco Fluid VLT E-Mountain Bike model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Norco Fluid VLT E-Mountain Bike comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the Norco Fluid VLT E-Mountain Bike. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
