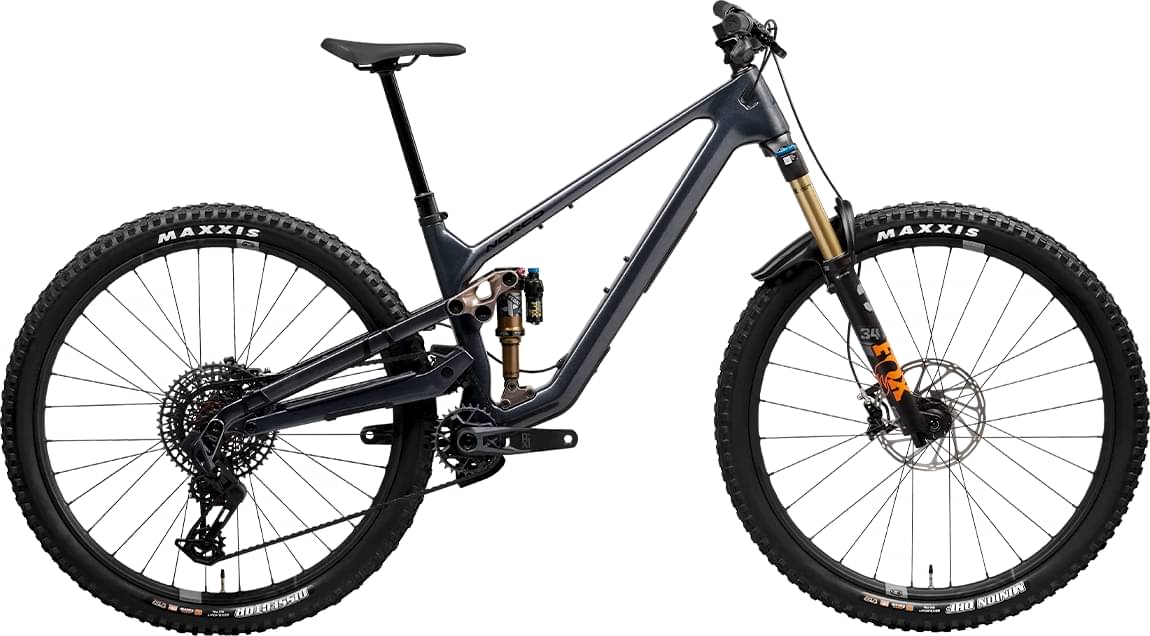

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 125mm -
Fork Fox Factory Float 34
-
Groupset X0 Eagle Transmission, SRAM -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
1
154cm - 165cm
2
162cm - 172cm
3
170cm - 180cm
4
177cm - 188cm
5
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Optic Carbon, VPS HP, 125mm Travel, UDH Compatible
Suspension Fork
Fox Factory 34 FLOAT GRIP2, HSC, LSC, HSR, LSR, LNT, 140mm Travel, 44mm Offset, Fender Included
Rear Shock
Fox FLOAT X Factory, 185x50mm Trunnion
Drivetrain
Rear Derailleur
SRAM X0 AXS Eagle T-Type
Shift Levers
SRAM Pod Controller
Cassette
SRAM Eagle T-Type 1295, 10-52T
Crank
SRAM X0 Eagle T-Type, Boost, 30T AL Ring, 170mm
Bottom Bracket
SRAM DUB BSA Threaded
Chain
SRAM XO Eagle T-Type
Chain Guide
Norco Idler Guide and Lower Guide
Wheels
Front Hub
Industry Nine 1/1 12x110mm Boost, 6-Bolt
Rear Hub
Industry Nine 1/1, 12x148mm Boost, XD, 6-Bolt
Rims
We Are One Union Carbon
Tires
Front: Maxxis Minion DHF 2.5", 3C, MaxxTerra / EXO / TR, Folding, Rear: Maxxis Dissector 2.4" WT, 3C, MaxxTerra / EXO / TR, Folding
Brakes
Brakes
Front: SRAM Level Stealth Silver, 4-Piston, Sintered Pads, Rear: SRAM Level Stealth Silver, 4-Piston, Sintered Pads
Brake Levers
SRAM Level Silver
Cockpit
Stem
CNC Alloy, 40mm Length, 35mm Clamp
Handlebar
Deity Skywire Carbon 800mm, 25mm Rise
Grips
DMR DeathGrip
Headset
FSA #57 E, Sealed Bearing
Seat
Saddle
Fizik Alpaca Terra, Wingflex
Seatpost
One Up Adjustable Dropper, 34.9mm, 150mm (1), 180mm (2), 210mm (3, 4), 240mm (5)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.439 mm | 1.379 mm | 1.325 mm | 1.276 mm | 1.233 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm |
| Front Center | 740 mm | 770 mm | 799 mm | 828 mm | 857 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 128 mm | 128 mm | 128 mm | 128 mm | 128 mm |
| Stack | 608 mm | 617 mm | 626 mm | 635 mm | 644 mm |
| Reach | 422.5 mm | 447.5 mm | 472.5 mm | 497.5 mm | 522.5 mm |
| Top Tube Length | 568 mm | 593 mm | 617 mm | 641 mm | 665 mm |
| Seat Tube Angle | 76.5 ° | 76.75 ° | 77 ° | 77.25 ° | 77.5 ° |
| Seat Tube Length | 350 mm | 370 mm | 385 mm | 430 mm | 445 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 421 mm | 425 mm | 429 mm | 433 mm | 437 mm |
| Wheelbase | 1159 mm | 1193 mm | 1226 mm | 1259 mm | 1292 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm | 32 mm |
| Standover Height | 675 mm | 677 mm | 678 mm | 707 mm | 705 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 162 cm | 170 cm | 177 cm | 185 cm |
| Rider Max Height | 165 cm | 172 cm | 180 cm | 188 cm | 195 cm |
