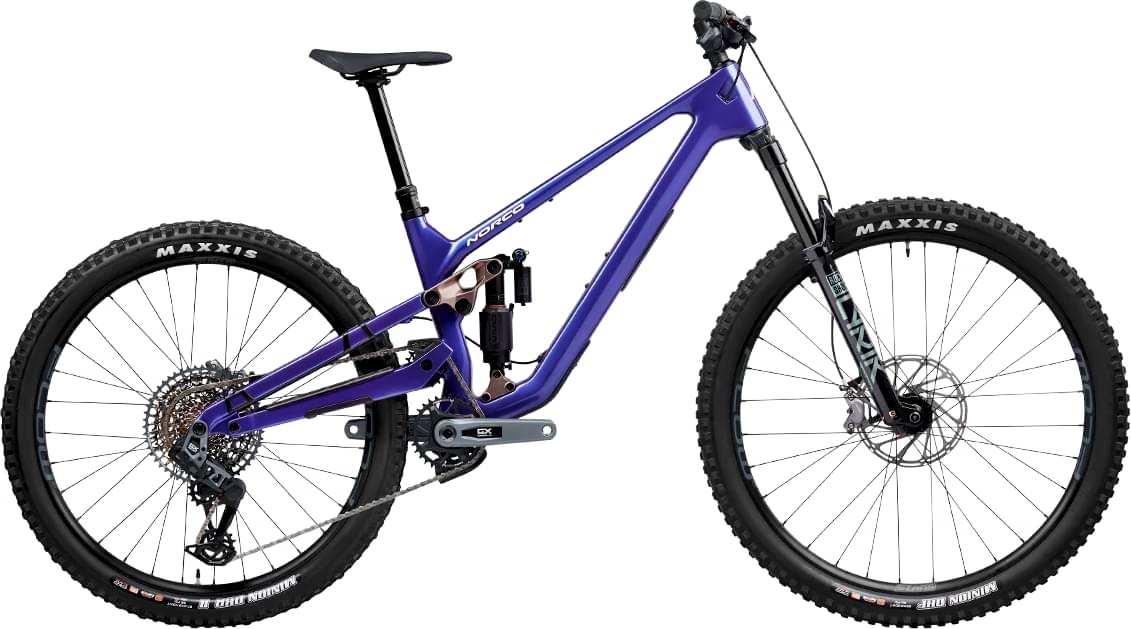

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 125mm -
Fork RockShox Lyrik Select+
-
Groupset GX Eagle Transmission, SRAM -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
1
154cm - 165cm
2
162cm - 172cm
3
170cm - 180cm
4
177cm - 188cm
5
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Optic Carbon, VPS HP, 125mm Travel, UDH Compatible
Suspension Fork
RockShox Lyrik Select +, Charger 3 RC2, DebonAir+ 140mm Travel, 44mm Offset, Fender Included
Rear Shock
RockShox Vivid Select +, 185x50mm Trunnion
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS T-Type
Shift Levers
SRAM Pod Controller
Cassette
SRAM T-Type 1275 10-52T
Crank
SRAM GX Eagle T-Type, 32T, 170mm
Bottom Bracket
SRAM DUB BSA Threaded
Chain
SRAM GX Eagle T-Type
Chain Guide
Norco Idler Guide and Lower Guide
Wheels
Front Hub
Race Face Trace, 15x110mm Boost, 6-Bolt
Rear Hub
Race Face Trace, 12x148mm Boost, XD, 6-Bolt
Rims
Stan's Flow S2, 32H, 29" Front, 27.5" Rear
Tires
Front: Maxxis Minion DHF 2.5" 3C, MaxxTerra / EXO+ / TR, Folding, Rear: Maxxis Minion DHRII 2.4" 3C, MaxxTerra / EXO+ / TR, Folding
Brakes
Brakes
Front: SRAM Code R, 4-Piston, Sintered Pads, Rear: SRAM Code R, 4-Piston, Sintered Pads
Brake Levers
SRAM Code R
Cockpit
Stem
Alloy 40mm Length, 35mm Clamp
Handlebar
Deity Ridgeline 35, 800mm, 25mm rise
Grips
DMR DeathGrip
Headset
FSA #57 E, Sealed Bearing
Seat
Saddle
Fizik Alpaca Terra, Wingflex
Seatpost
TranzX YS105 Dropper, 34.9mm, 150mm (1), 170mm (2), 200mm (3, 4), 230mm (5)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.439 mm | 1.379 mm | 1.325 mm | 1.276 mm | 1.233 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm |
| Front Center | 741 mm | 771 mm | 800 mm | 829 mm | 858 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 128 mm | 128 mm | 128 mm | 128 mm | 128 mm |
| Stack | 608 mm | 617 mm | 626 mm | 635 mm | 644 mm |
| Reach | 422.5 mm | 447.5 mm | 472.5 mm | 497.5 mm | 522.5 mm |
| Top Tube Length | 568 mm | 593 mm | 617 mm | 641 mm | 665 mm |
| Seat Tube Angle | 76.5 ° | 76.75 ° | 77 ° | 77.25 ° | 77.5 ° |
| Seat Tube Length | 350 mm | 370 mm | 385 mm | 430 mm | 445 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 415 mm | 419 mm | 423 mm | 427 mm | 431 mm |
| Wheelbase | 1154 mm | 1188 mm | 1221 mm | 1254 mm | 1287 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm | 32 mm | 32 mm |
| Standover Height | 675 mm | 677 mm | 678 mm | 707 mm | 705 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 162 cm | 170 cm | 177 cm | 185 cm |
| Rider Max Height | 165 cm | 172 cm | 180 cm | 188 cm | 195 cm |
