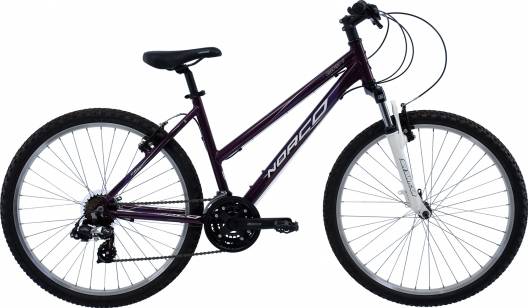

Norco ORN 2011
2011 Mountain
Estimate price |
335$
Weight | 14.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 63mm -
Fork SunTour
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Forma step-through 6061 alloy frame
Suspension Fork
Suntour M-2025 w/63mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Tourney RD-TX51
Front Derailleur
Shimano Tourney FD-TX50
Shift Levers
Shimano Altus Easy-Fire 50 21speed
Cassette
Shimano MF-TZ21 14-28T 7speed
Crank
SR Suntour CW-XCC-T102 42/34/24T - Black
Bottom Bracket
Cartridge BB
Chain
KMC Z-50
Chain Tensioner
N/A
Pedals
Black Resin
Wheels
Front Hub
Kun Teng alloy hub 36h - Black
Rear Hub
Kun Teng alloy freewheel hub 36h - Black
Rims
Alloy 36h w/CNC sidewalls - Silver
Spokes
Stainless w/brass nipples
Tires
Kenda K831 26" x 1.95"""
Brakes
Brakes
Tektro 837AL v-brakes - Black
Brake Levers
Shimano Altus Easy-Fire 50 w/2-finger levers
Cockpit
Stem
Alloy 15degree - Black
Handlebar
Steel 30mm riser bar - Black
Grips
Norco Shield dual density grip
Headset
Semi-cartridge threadless
Seat
Saddle
Norco Forma Comfort
Seatpost
Alloy - Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13" | 15" | 17" |
|---|---|---|---|
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm |
| Front Center | 631 mm | 625 mm | 635 mm |
| Top Tube Length | 543 mm | 548 mm | 563 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 330 mm | 381 mm | 432 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° |
| Head Tube Length | 125 mm | 125 mm | 125 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1056 mm | 1051 mm | 1060 mm |
| Bottom Bracket Drop | 43 mm | 43 mm | 43 mm |
| Standover Height | 684 mm | 673 mm | 656 mm |
| Wheels | 26" | 26" | 26" |
About this model
ORN completes the Norco Orn model. 2 bikes variations carry this model name so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2011 and its price was 335$. Doing a quick comparison, we notice that ORN price is 468.66% smaller than the average cost of a Crosscountry bike.
Average weight for Crosscountry bikes
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 14.1 kg (31.09 lbs), Norco bike is considerably heavier than average. In conclusion, the average Crosscountry bike weighs 13.71% less than ORN.
Overview of components
Fork
The ORN comes factory-installed with the SunTour fork. This has a travel range of 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When leaving the production line, the ORN model has 26″ aluminum wheels. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
