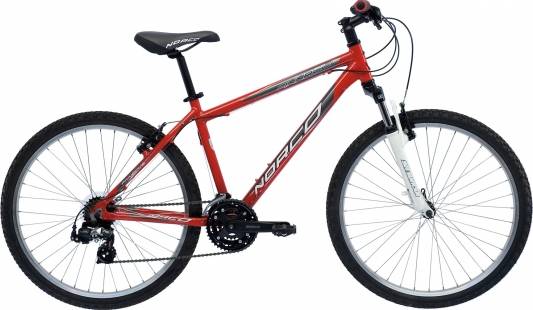

Norco Pinnacle 2011
2011 Mountain
Estimate price |
335$
Weight | 13.97 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 63mm -
Fork SunTour
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
7005 alloy frame
Suspension Fork
Suntour M-2025 w/63mm travel fork
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Tourney RD-TX51
Front Derailleur
Shimano Tourney FD-TX50
Shift Levers
Shimano Altus Easy-Fire 50 21speed
Cassette
Shimano MF-TZ21 14-28T 7speed
Crank
SR Suntour CW-XCC-T102 42/34/24T - Black
Bottom Bracket
Cartridge BB
Chain
KMC Z-50
Chain Tensioner
N/A
Pedals
Black Resin
Wheels
Front Hub
Kun Teng alloy hub 36h - Black
Rear Hub
Kun Teng alloy freewheel hub 36h - Black
Rims
Alloy 36h w/CNC sidewalls - Silver
Spokes
Stainless w/brass nipples
Tires
Kenda K831 26" x 1.95"""
Brakes
Brakes
Tektro 837AL v-brakes black
Brake Levers
Shimano Altus Easy-Fire 50 w/2-finger levers
Cockpit
Stem
Alloy 15degree - Black
Handlebar
Steel 30mm riser bar - Black
Grips
Norco Shield dual density grip
Headset
Semi-cartridge threadless
Seat
Saddle
Norco Adventure Saddle - Grey/Black
Seatpost
Alloy - Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 12.5" | 15" | 17" | 18.5" | 20" | 22" |
|---|---|---|---|---|---|---|
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm |
| Front Center | 618 mm | 624 mm | 639 mm | 649 mm | 660 mm | 670 mm |
| Top Tube Length | 543 mm | 558 mm | 573 mm | 588 mm | 603 mm | 618 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 318 mm | 381 mm | 432 mm | 470 mm | 508 mm | 559 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1049 mm | 1054 mm | 1070 mm | 1080 mm | 1090 mm | 1100 mm |
| Bottom Bracket Drop | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Standover Height | 694 mm | 720 mm | 745 mm | 765 mm | 788 mm | 819 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" |
About this model
Pinnacle is part of the Norco Pinnacle model. Norco launched 6 bikes of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2011 and its price was 335$. If we compare this with the average Crosscountry bike cost we notice that the price is 468.66% lower.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
considerably heavier than average, Pinnacle has a weight of 13.97 kg (30.8 lbs). In conclusion, the average Crosscountry bike weighs 12.66% less than Pinnacle.
Pinnacle components
Fork
This bike has the SunTour fork installed. The fork’s travel is 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the Pinnacle model has 26″ aluminum wheels. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Norco Pinnacle has Rim brakes installed. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
