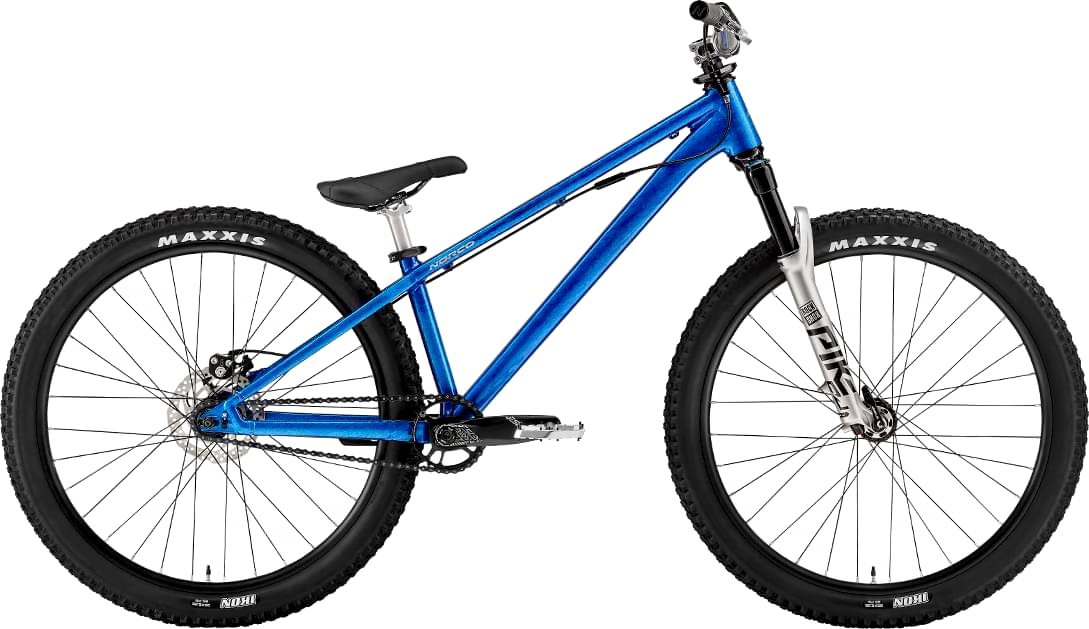

Norco Rampage Team 2025
2025 Mountain
Estimate price |
2,299$
Weight | 12.11 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork RockShox Pike DJ
-
Groupset Truvativ Descendant -
Suspension Hardtail -
Drivetrain Single Speed -
Brakes Tektro MD Mechanical Disc
Sizing
Recommended size guide.
Short
143cm - 165cm
MD
158cm - 180cm
Long
174cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum DJ 26"
Suspension Fork
Rockshox Pike DJ, 100mm, 40mm offset, 15x100mm
Drivetrain
Cassette
Single speed, 14T
Crank
Truvativ Descendant, 30T, 165mm
Bottom Bracket
SRAM DUB, BSA 73mm, MTB
Chain
KMC Z1, 1/2 x 3/32"
Pedals
Title Connect pedal
Wheels
Front Hub
KT sealed bearing, 15x100, 32H, 6 bolt
Rear Hub
KT sealed bearing, 3/8" nutted axle, 32H, 14T SS sproket, 6 bolt
Rims
Alex DP 25, 32h, F/R-26"
Tires
Front: Maxxis Ikon, 3C Maxx Speed, 26"x 2.35, Folding, Rear: Maxxis Ikon, 3C Maxx Speed, 26"x 2.35, Folding
Brakes
Brakes
Front: Tektro MD-280, Mechanical, Resin pads (not pictured), Rear: Shimano Sora BR-R317, Mechanical, Resin Pads
Brake Levers
Title rear brake lever
Cockpit
Stem
Title ST1, 35mm length, 31.8 clamp
Handlebar
Title AH1, 800mm, 38mm rise
Grips
Norco Single lock on, 135mm length, Dual Density
Headset
Tapered 1-1/8"- 1.5",(ZS44/28.6 | ZS56/40)
Seat
Saddle
Title JS1
Seatpost
Title AP1, 27.2mm, 300 Length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Short | MD | Long |
|---|---|---|---|
| Stack Reach Ratio | 1.368 mm | 1.297 mm | 1.232 mm |
| Bottom Bracket Height | 328 mm | 328 mm | 328 mm |
| Front Center | 659 mm | 693 mm | 726 mm |
| Rake | 40 mm | 40 mm | 40 mm |
| Trail | 94 mm | 94 mm | 94 mm |
| Stack | 554 mm | 564 mm | 573 mm |
| Reach | 405 mm | 435 mm | 465 mm |
| Top Tube Length | 554 mm | 586 mm | 619 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 300 mm | 300 mm | 300 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 379 mm | 379 mm | 379 mm |
| Wheelbase | 1037 mm | 1071 mm | 1104 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm |
| Standover Height | 599 mm | 599 mm | 599 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 143 cm | 158 cm | 174 cm |
| Rider Max Height | 165 cm | 180 cm | 195 cm |
