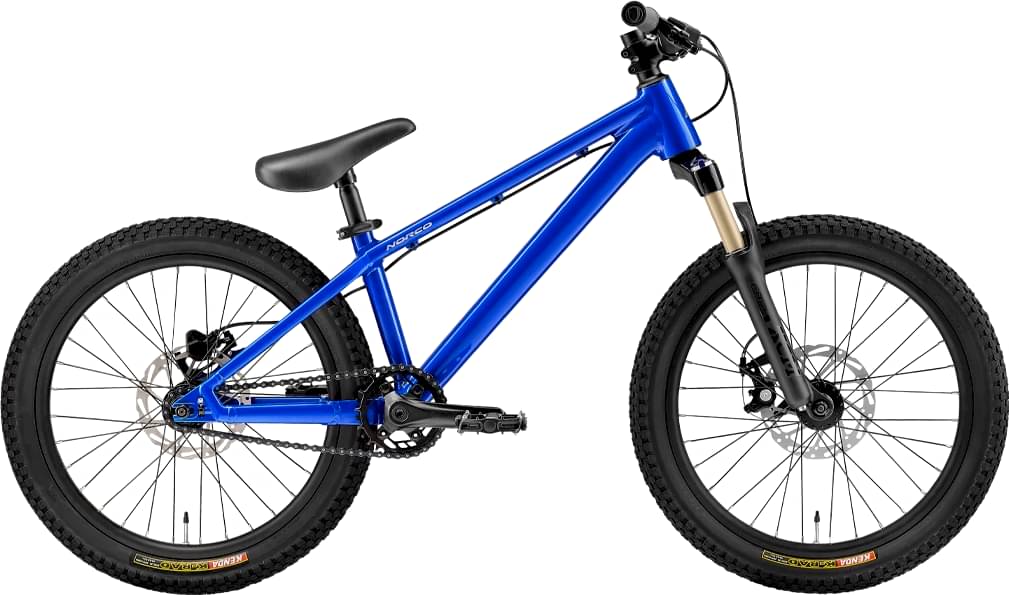

Norco Rampage Youth 20 2025
2025 Mountain
Estimate price |
749$
Weight | 10.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Suntour XCM
-
Suspension Hardtail -
Drivetrain Single Speed -
Brakes Tektro MD Mechanical Disc
Sizing
Recommended size guide.
20"
115cm - 129cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum DJ 20"
Suspension Fork
SR Suntour XCM Jr Air, 80mm, 9x100mm
Drivetrain
Cassette
Single speed, 13T
Crank
Prowheel 3pc, 30T, 127mm
Bottom Bracket
Square Taper, 73mm, 122.5mm axle
Chain
KMC Z1 natural black 1/2 x 3/32" single speed chain
Pedals
FM Composite Jr Flat Pedal
Wheels
Front Hub
KT sealed bearing, 3/8" nutted axle, 32H, 6 bolt
Rear Hub
KT sealed bearing, 3/8" nutted axle, 32H, 13T SS sproket, 6 bolt
Rims
XD-181 DW, 32h, F/R-20", 24.7mm ID
Tires
Front: Kenda K-Rad, 20x2.35", Wire Bead, Rear: Kenda K-Rad, 20x2.35", Wire Bead
Brakes
Brakes
Front: Tektro MD-280, Mechanical, Resin pads, Rear: Tektro HD-M286, Hydraulic, Resin pads
Brake Levers
Tektro Alloy
Cockpit
Stem
Norco, 40mm Length, 31.8 Clamp
Handlebar
Norco 6061 alloy, 640mm, 30mm rise
Grips
Norco JR Single lock on, 92mm length
Headset
Tapered 1-1/8"- 1.5",(ZS44/28.6 | ZS56/40)
Seat
Saddle
Norco One Piece
Seatpost
Integrated w/saddle, 27.2mm ID, 200mm Length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 20" |
|---|---|
| Stack Reach Ratio | 1.287 mm |
| Bottom Bracket Height | 261.5 mm |
| Rake | 40 mm |
| Trail | 60 mm |
| Stack | 444 mm |
| Reach | 345 mm |
| Top Tube Length | 464 mm |
| Seat Tube Angle | 75 ° |
| Seat Tube Length | 260 mm |
| Head Tube Angle | 68.5 ° |
| Head Tube Length | 100 mm |
| Chainstay Length | 295 mm |
| Wheelbase | 858 mm |
| Standover Height | 492 mm |
| Wheels | 20" |
| Rider Min Height | 115 cm |
| Rider Max Height | 129 cm |
