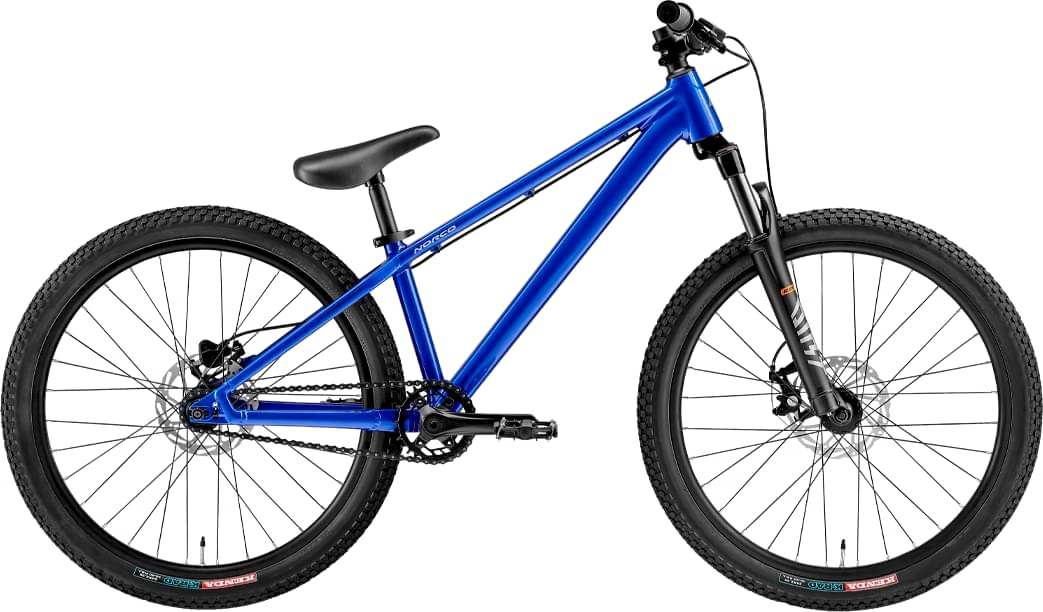

Norco Rampage Youth 24 2025
2025 Mountain
Estimate price |
799$
Weight | 12.18 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork RST DIRT
-
Suspension Hardtail -
Drivetrain Single Speed -
Brakes Tektro MD Mechanical Disc
Sizing
Recommended size guide.
24"
128cm - 142cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum DJ 24"
Suspension Fork
RST Dirt ,80 mm, 9x100mm
Drivetrain
Cassette
Single speed, 14T
Crank
Prowheel 3pc, 30T, 140mm
Bottom Bracket
Sealed Cartridge, ISIS 73mm
Chain
KMC Z1, 1/2 x 3/32"
Pedals
VP Jr Flat Pedal
Wheels
Front Hub
KT sealed bearing, 3/8" nutted axle, 32H, 6 bolt
Rear Hub
KT sealed bearing, 3/8" nutted axle, 32H, 14T SS sproket, 6 bolt
Rims
XD-181 DW, 32h, F/R-24", 24.7mm ID
Tires
Front: Kenda K-Rad, 24x2.30", Wire Bead, Rear: Kenda K-Rad, 24x2.30", Wire Bead
Brakes
Brakes
Front: Tektro MD-280, Mechanical, Resin pads, Rear: Tektro MD-280, Mechanical, Resin pads
Brake Levers
Tektro Alloy
Cockpit
Stem
Norco, 45mm Length, 31.8 Clamp
Handlebar
Norco Alloy, 760mm, 45mm rise
Grips
Norco w/small flange, 130mm length
Headset
Tapered 1-1/8"- 1.5",(ZS44/28.6 | ZS56/40)
Seat
Saddle
Norco One Piece
Seatpost
Integrated w/saddle, 27.2mm ID, 200mm Length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 24" |
|---|---|
| Stack Reach Ratio | 1.397 mm |
| Bottom Bracket Height | 298 mm |
| Front Center | 619 mm |
| Rake | 40 mm |
| Trail | 80 mm |
| Stack | 524 mm |
| Reach | 375 mm |
| Top Tube Length | 515 mm |
| Seat Tube Angle | 75 ° |
| Seat Tube Length | 290 mm |
| Head Tube Angle | 68.5 ° |
| Head Tube Length | 100 mm |
| Chainstay Length | 353 mm |
| Wheelbase | 971 mm |
| Bottom Bracket Drop | 15 mm |
| Standover Height | 559 mm |
| Wheels | 24" |
| Rider Min Height | 128 cm |
| Rider Max Height | 142 cm |
