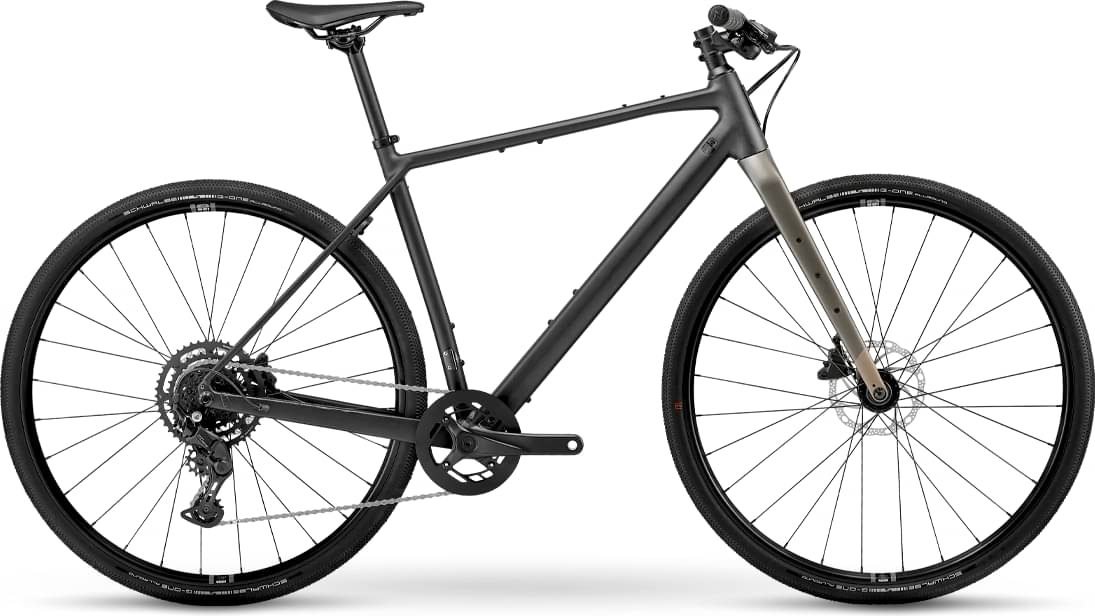

Norco Search A Flat Bar Gen 3 2025
2025 Road
Estimate price |
999$
Weight | 12.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset CUES -
Suspension Rigid -
Drivetrain 1 × 9 -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
1
154cm - 165cm
2
162cm - 172cm
3
170cm - 180cm
4
177cm - 188cm
5
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Search Butted Aluminum w/Smooth Welds
Suspension Fork
Search Carbon, 51mm Offset, 12x100mm TA
Drivetrain
Rear Derailleur
Shimano CUES RD-U4000
Shift Levers
Shimano CUES SL-U4000 Rapid Fire
Cassette
Shimano CS-LG300, 11-46T, 9sp
Crank
Prowheel, 38T, ST, 170mm (S1,S2,S3,S4) - 172.5mm (S5)
Bottom Bracket
Shimano Cartridge Bearing, 68mm BSA
Chain
KMC Z9
Wheels
Front Hub
Formula, 12x100mm, 28H, 6-Bolt
Rear Hub
Formula, 12x142mm, HG, 28h, 6-Bolt
Rims
WTB ST i25 2.0, 28h, 25mm ID
Tires
Front: Schwalbe G-One Comp, K-Guard Recyclable, 700x40c, Rear: Schwalbe G-One Comp, K-Guard Recyclable, 700x40c
Brakes
Brakes
Front: Tektro HD-R280 Hydraulic, Rear: Tektro HD-R280 Hydraulic
Brake Levers
Tektro HD-R280 Hydraulic Hydro 3-Finger Levers w/ Reach Adjust
Cockpit
Stem
Norco Alloy 70mm Length, 31.8mm Clamp
Handlebar
Norco Alloy, 620mm (S1,S2) 640mm (S3,S4,S5), 15mm rise
Grips
Norco Lock On, 130 length
Headset
FSA Integrated Sealed Bearings No. 42 ; Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 )
Seat
Saddle
Selle Royale SRX Gravel, 148mm
Seatpost
Aluminum 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.439 mm | 1.41 mm | 1.414 mm | 1.421 mm | 1.425 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 623 mm | 642 mm | 665 mm | 689 mm | 713 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Stack | 554 mm | 564 mm | 587 mm | 611 mm | 634 mm |
| Reach | 385 mm | 400 mm | 415 mm | 430 mm | 445 mm |
| Top Tube Length | 539 mm | 559 mm | 583 mm | 608 mm | 633 mm |
| Seat Tube Angle | 74.5 ° | 74.25 ° | 74 ° | 73.75 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 475 mm | 510 mm | 545 mm | 580 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 100 mm | 110 mm | 135 mm | 160 mm | 185 mm |
| Chainstay Length | 425 mm | 425 mm | 427 mm | 430 mm | 430 mm |
| Wheelbase | 1037 mm | 1056 mm | 1082 mm | 1108 mm | 1132 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 682 mm | 715 mm | 748 mm | 781 mm | 814 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 154 cm | 162 cm | 170 cm | 177 cm | 185 cm |
| Rider Max Height | 165 cm | 172 cm | 180 cm | 188 cm | 195 cm |
