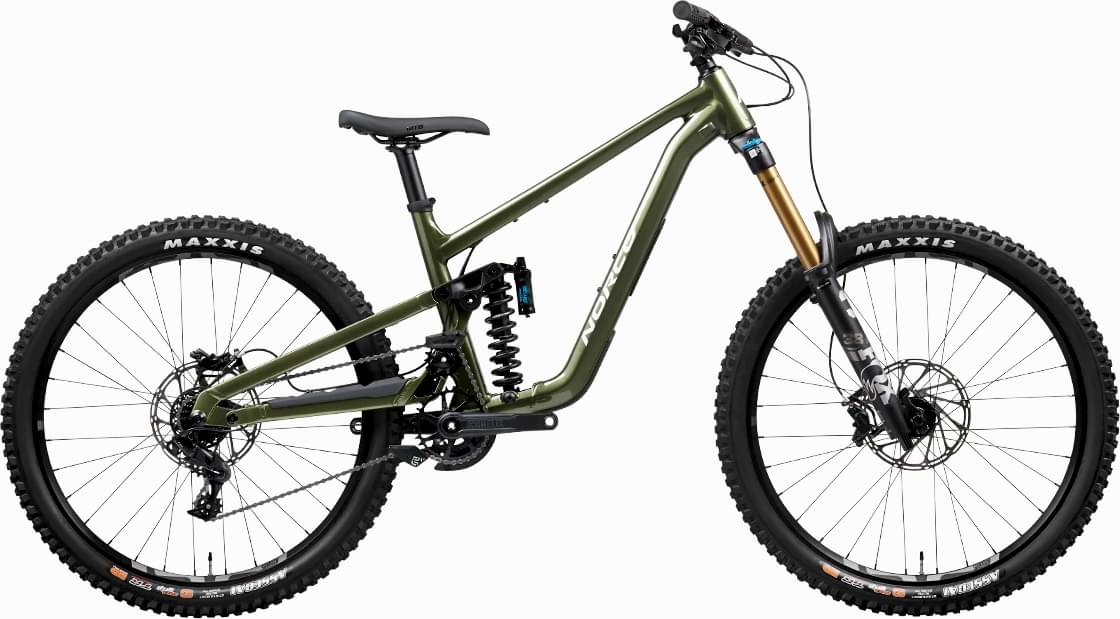

Norco Shore A Park Fox 38 2024
2024 Mountain
Estimate price |
6,165$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 180mm -
Travel Rear 190mm -
Fork Fox Factory Float 38
-
Groupset GX, Praxis -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 166cm
MD
163cm - 175cm
LG
172cm - 184cm
XL
181cm - 192cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Park, 190mm Travel, UDH, Ride Aligned™
Suspension Fork
Fox 38 Factory Grip 2, 180mm, 44mm Offset
Rear Shock
RockShox Super Deluxe Coil Ultimate DH, Custom Tune, 225x75mm
Drivetrain
Rear Derailleur
SRAM GX DH Mid Cage
Shift Levers
SRAM GX 1
Cassette
SRAM CS PG720 DH, 11-25T, 7 Speed
Crank
Praxis Cadet HD, 36T, 165mm
Bottom Bracket
Praxis Sealed Bearing, BSA Threaded
Chain
SRAM PC 1110
Chain Guide
e*thirteen Vario Chain Guide and Lower Guard
Wheels
Front Hub
Sealed Bearing, 20x110mm Boost, 6 Bolt
Rear Hub
SRAM MTH-746 Sealed Bearing, 12x148mm Boost, HG, 6 bolt
Rims
e*thirteen LG1 DH 27.5
Tires
Front: Maxxis Assegai 2.5", 3C Maxx Grip/DD/TR, Rear: Maxxis Assegai 2.5", 3C Maxx Grip/DD/TR
Brakes
Brakes
Front: SRAM Code R, 4 Piston, Metallic Pads, Rear: SRAM Code R, 4 Piston, Metallic Pads
Brake Levers
SRAM Code R
Cockpit
Stem
Race Face Chester DM, 50mm Length, 35mm Clamp
Handlebar
6061 Alloy, 800mm, 25mm Rise
Grips
SDG Thrice Grips
Headset
FSA #57E Sealed Bearing
Seat
Saddle
WTB Volt 250 Sport
Seatpost
Alloy Double Bolt, 34.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.426 mm | 1.36 mm | 1.304 mm | 1.253 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm | 347 mm |
| Front Center | 771 mm | 808 mm | 845 mm | 882 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 130 mm | 130 mm | 130 mm | 130 mm |
| Stack | 599 mm | 612 mm | 626 mm | 639 mm |
| Reach | 420 mm | 450 mm | 480 mm | 510 mm |
| Top Tube Length | 558 mm | 588 mm | 617 mm | 646 mm |
| Seat Tube Angle | 77 ° | 77.3 ° | 77.7 ° | 78 ° |
| Seat Tube Length | 365 mm | 395 mm | 410 mm | 455 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm | 145 mm |
| Chainstay Length | 435 mm | 440 mm | 445 mm | 450 mm |
| Wheelbase | 1206 mm | 1248 mm | 1290 mm | 1332 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm | 10 mm |
| Standover Height | 684 mm | 681 mm | 683 mm | 674 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 163 cm | 172 cm | 181 cm |
| Rider Max Height | 166 cm | 175 cm | 184 cm | 192 cm |
