Bike details
Overview
Key information split into simple groups.

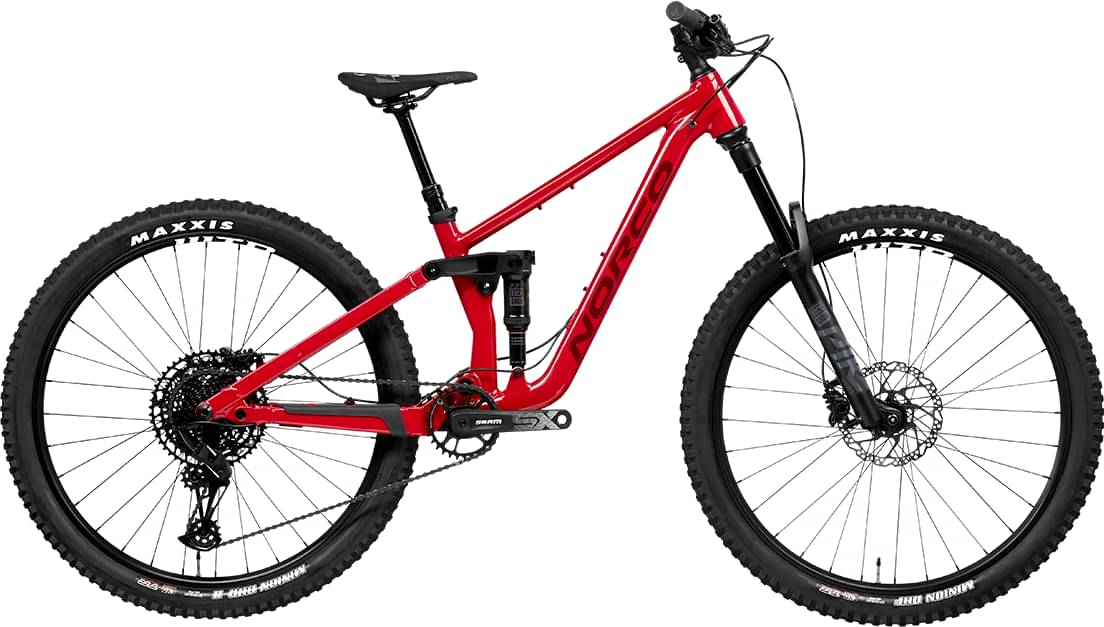

Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Pike
-
Groupset SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Youth All-Mountain, 140mm Travel, 27.5", UDH
Suspension Fork
RockShox Pike, Charger Damper, 150mm Travel, 37mm Offset
Rear Shock
Rockshox Deluxe R Select, DebonAir, 185x50 Trunnion
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle
Cassette
SRAM Eagle 11-50T
Crank
SRAM SX Eagle, 30T, 165mm
Bottom Bracket
SRAM Power Spline, BSA Threaded
Chain
SRAM Eagle
Pedals
SDG Composite Jr.
Wheels
Front Hub
Shimano Deore 15x110mm Boost, Center Lock
Rear Hub
Shimano Deore, 12x148mm Boost, HG, Center Lock
Rims
WTB STP I25, 32H, 27.5"
Tires
Front: Maxxis Minion DHF, 2.3", EXO/TR, Folding Bead, Rear: Maxxis Minion DHR II, 2.3", EXO/TR, Folding Bead
Brakes
Brakes
Front: Shimano BR-MT500, Resin Pads, Rear: Shimano BR-MT500, Resin Pads
Brake Levers
Shimano BR-MT500
Cockpit
Stem
Alloy, 35mm Length, 31.8mm Clamp
Handlebar
Alloy 720mm, 15mm Rise
Grips
SDG Slater Lock-On
Headset
FSA #57 E
Seat
Saddle
SDG Fly Jr.
Seatpost
TranzX Light Action Dropper, 31.6mm, 120mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 27.5" |
|---|---|
| Stack Reach Ratio | 1.458 mm |
| Bottom Bracket Height | 342 mm |
| Front Center | 716 mm |
| Rake | 37 mm |
| Trail | 137 mm |
| Stack | 576 mm |
| Reach | 395 mm |
| Top Tube Length | 531 mm |
| Seat Tube Angle | 76.7 ° |
| Seat Tube Length | 350 mm |
| Head Tube Angle | 63.5 ° |
| Head Tube Length | 100 mm |
| Chainstay Length | 425 mm |
| Wheelbase | 1141 mm |
| Bottom Bracket Drop | 15 mm |
| Standover Height | 650 |
| Wheels | 27" |
