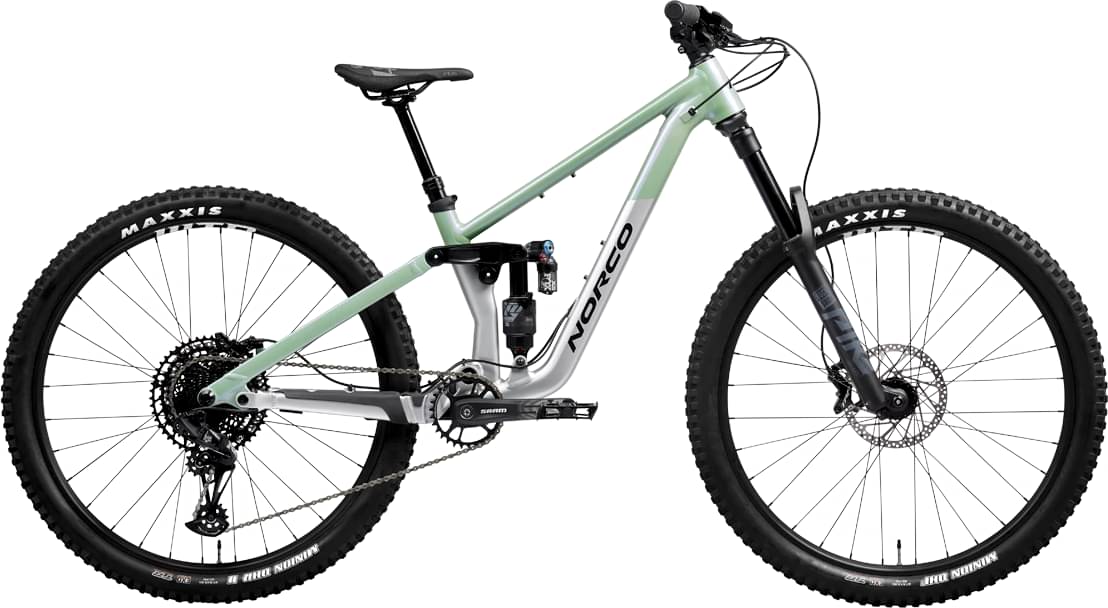

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 150mm -
Fork RockShox Lyrik
-
Groupset SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Youth All-Mountain, 150mm Travel, Ride Aligned™
Suspension Fork
RockShox Pike/Lyrik RC, Charger Damper, 150mm, 37mm Offset
Rear Shock
Fox FLOAT X2 Performance Elite, 2 Pos, Light Tune 185x50mm Trunnion
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle
Cassette
SRAM Eagle 11-50T
Crank
SRAM SX Eagle, 30T, 165mm
Bottom Bracket
SRAM Power Spline, BSA Threaded
Chain
SRAM Eagle
Pedals
SDG Composite Jr.
Wheels
Front Hub
Bear Pawl 15x110mm Boost, 6-Bolt
Rear Hub
SRAM 746, 12x148mm Boost, HG, 6-Bolt
Rims
WTB STP I25, Tubeless Ready
Tires
Front: Maxxis Minion DHF 2.3" EXO/TR, Folding, Rear: Maxxis Minion DHR II 2.4" EXO/TR, Folding
Brakes
Brakes
Front: TRP Slate EVO, Rear: TRP Slate EVO
Brake Levers
TRP Slate EVO
Cockpit
Stem
Alloy, 35mm Length, 31.8mm Clamp
Handlebar
Alloy, 720mm, 15mm Rise
Grips
SDG Slater Lock-On
Headset
FSA #57 E Sealed Bearing, Tapered
Seat
Saddle
SDG Fly Jr.
Seatpost
JD TranzX Light Action Dropper, 31.6mm, 120mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 27.5" |
|---|---|
| Stack Reach Ratio | 1.458 mm |
| Bottom Bracket Height | 342 mm |
| Front Center | 716 mm |
| Rake | 37 mm |
| Trail | 137 mm |
| Stack | 576 mm |
| Reach | 395 mm |
| Top Tube Length | 531 mm |
| Seat Tube Angle | 76.7 ° |
| Seat Tube Length | 350 mm |
| Head Tube Angle | 63.5 ° |
| Head Tube Length | 100 mm |
| Chainstay Length | 425 mm |
| Wheelbase | 1141 mm |
| Bottom Bracket Drop | 15 mm |
| Standover Height | 650 |
| Wheels | 27" |
