Bike details
Overview
Key information split into simple groups.

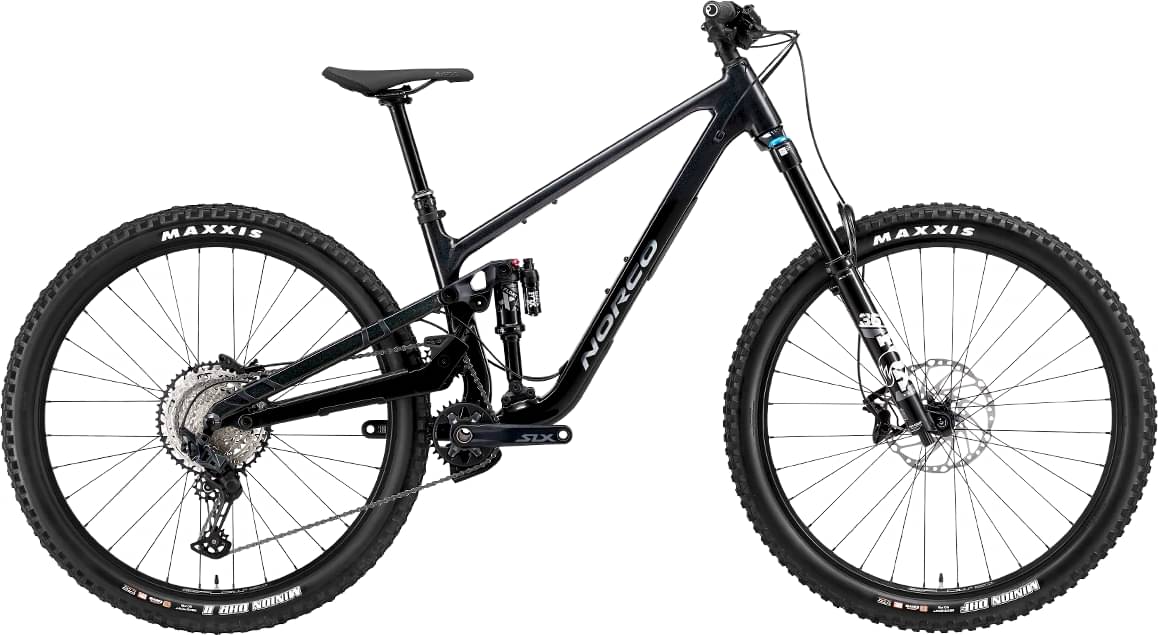

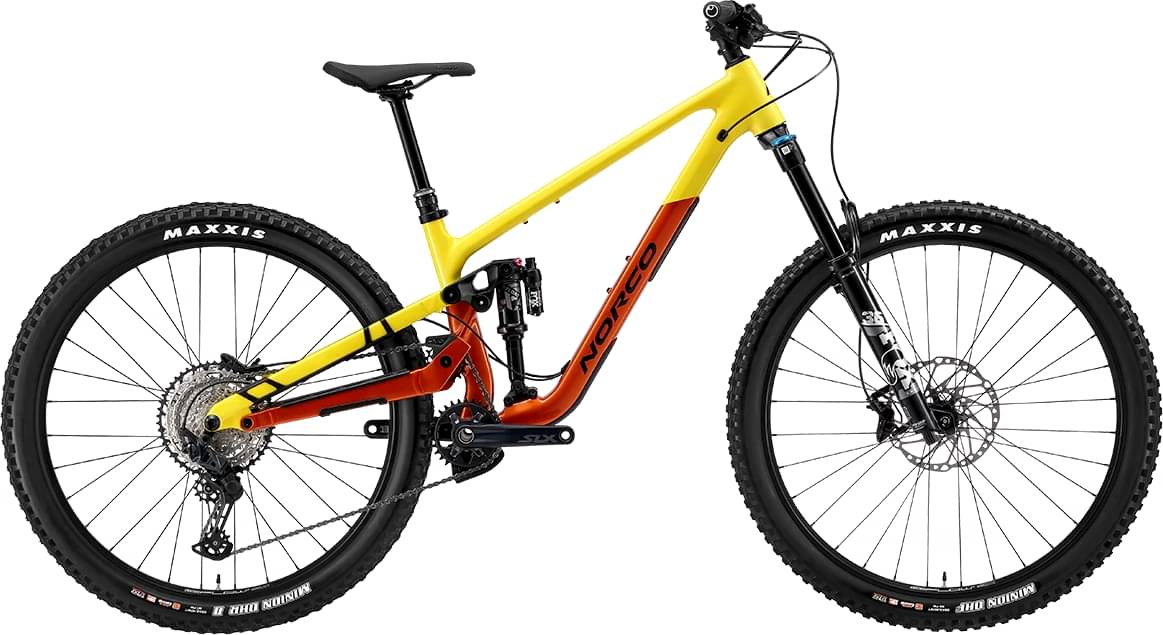

Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Rhythm Float 36
-
Groupset SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
1
154cm - 165cm
2
162cm - 172cm
3
170cm - 180cm
4
177cm - 188cm
5
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sight Aluminum, VPS HP, 150mm Travel, UDH Compatible
Suspension Fork
Fox FLOAT 36 Rhythm, Sweep Adjust, 160mm, 44mm Offset
Rear Shock
Fox FLOAT X Performance, LSC LSR, 205x60mm Trunnion
Drivetrain
Rear Derailleur
Shimano SLX RD-M7100
Shift Levers
Shimano SLX SL-M7100-R
Cassette
Shimano SLX CS-M7100-12, 10-51T, 12 Speed
Crank
Shimano SLX HollowTech 2, FC-M7100, 32T, 170mm
Bottom Bracket
Shimano Sealed Bearing BSA Threaded
Chain
Shimano Deore CN-M6100
Chain Guide
Norco Idler Guide and Lower Guide
Wheels
Front Hub
Shimano SLX 15x110mm Boost, Center Lock
Rear Hub
Shimano SLX FH-M7110, Micro Spline, Center Lock
Rims
Stan's Flow D, Black 32H, 29"/29"
Tires
Front: Maxxis Minion DHF 2.5", 3C, MaxxTerra / EXO+ / TR, Folding, Rear: Maxxis Minion DHR II 2.4" WT, 3C, MaxxTerra / EXO+ / TR, Folding
Brakes
Brakes
Front: Shimano Deore MT520 4 Piston, Metallic Pads, Rear: Shimano Deore MT520 4 Piston, Metallic Pads
Brake Levers
Shimano Deore MT-520
Cockpit
Stem
Alloy, 40mm Length, 35mm Clamp
Handlebar
6061 Alloy, 800mm, 25mm Rise
Grips
SDG THRICE
Headset
FSA #57 E Sealed Bearing
Seat
Saddle
SDG Bel Air V3
Seatpost
TranzX YS105 Dropper, 34.9mm, 150mm (1), 170mm (2), 200 (3, 4), 230mm (5)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.463 mm | 1.401 mm | 1.346 mm | 1.296 mm | 1.252 mm |
| Bottom Bracket Height | 353 mm | 353 mm | 353 mm | 353 mm | 353 mm |
| Front Center | 761 mm | 790 mm | 820 mm | 849 mm | 878 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 135 mm | 135 mm | 135 mm | 135 mm | 135 mm |
| Stack | 618 mm | 627 mm | 636 mm | 645 mm | 654 mm |
| Reach | 422.5 mm | 447.5 mm | 472.5 mm | 497.5 mm | 522.5 mm |
| Top Tube Length | 565 mm | 589 mm | 613 mm | 637 mm | 661 mm |
| Seat Tube Angle | 77 ° | 77.25 ° | 77.5 ° | 77.75 ° | 78 ° |
| Seat Tube Length | 350 mm | 370 mm | 385 mm | 430 mm | 445 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 426 mm | 430 mm | 434 mm | 438 mm | 442 mm |
| Wheelbase | 1186 mm | 1219 mm | 1253 mm | 1286 mm | 1319 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 666 mm | 680 mm | 689 mm | 710 mm | 720 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 162 cm | 170 cm | 177 cm | 185 cm |
| Rider Max Height | 165 cm | 172 cm | 180 cm | 188 cm | 195 cm |
