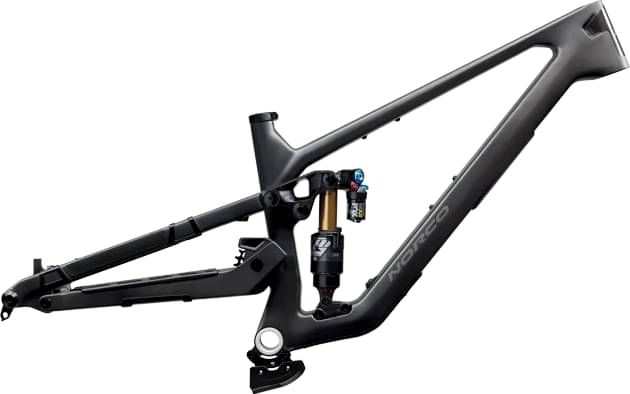

Norco Sight C Framekit 2025
2025 Mountain
Estimate price |
3,799$
Weight | 3.2 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Travel Rear 150mm -
Suspension Full
Sizing
Recommended size guide.
1
154cm - 165cm
2
162cm - 172cm
3
170cm - 180cm
4
177cm - 188cm
5
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sight Aluminum, VPSHP, 150mm Travel, UDH Compatible
Rear Shock
Fox Factory Float X2, 205x60mm TR
Drivetrain
Chain Guide
Norco Idler Guide and Lower Guide
Seat
Seatpost
Norco Alloy Nutted Clamp, 38.5 ID
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.463 mm | 1.401 mm | 1.346 mm | 1.296 mm | 1.252 mm |
| Bottom Bracket Height | 353 mm | 353 mm | 353 mm | 353 mm | 353 mm |
| Front Center | 762 mm | 791 mm | 820 mm | 850 mm | 879 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 135 mm | 135 mm | 135 mm | 135 mm | 135 mm |
| Stack | 618 mm | 627 mm | 636 mm | 645 mm | 654 mm |
| Reach | 422.5 mm | 447.5 mm | 472.5 mm | 497.5 mm | 522.5 mm |
| Top Tube Length | 565 mm | 589 mm | 613 mm | 637 mm | 661 mm |
| Seat Tube Angle | 77 ° | 77.25 ° | 77.5 ° | 77.75 ° | 78 ° |
| Seat Tube Length | 350 mm | 370 mm | 385 mm | 430 mm | 445 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 420 mm | 424 mm | 428 mm | 432 mm | 436 mm |
| Wheelbase | 1181 mm | 1214 mm | 1247 mm | 1281 mm | 1314 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 673 mm | 679 mm | 685 mm | 708 mm | 720 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 162 cm | 170 cm | 177 cm | 185 cm |
| Rider Max Height | 165 cm | 172 cm | 180 cm | 188 cm | 195 cm |
