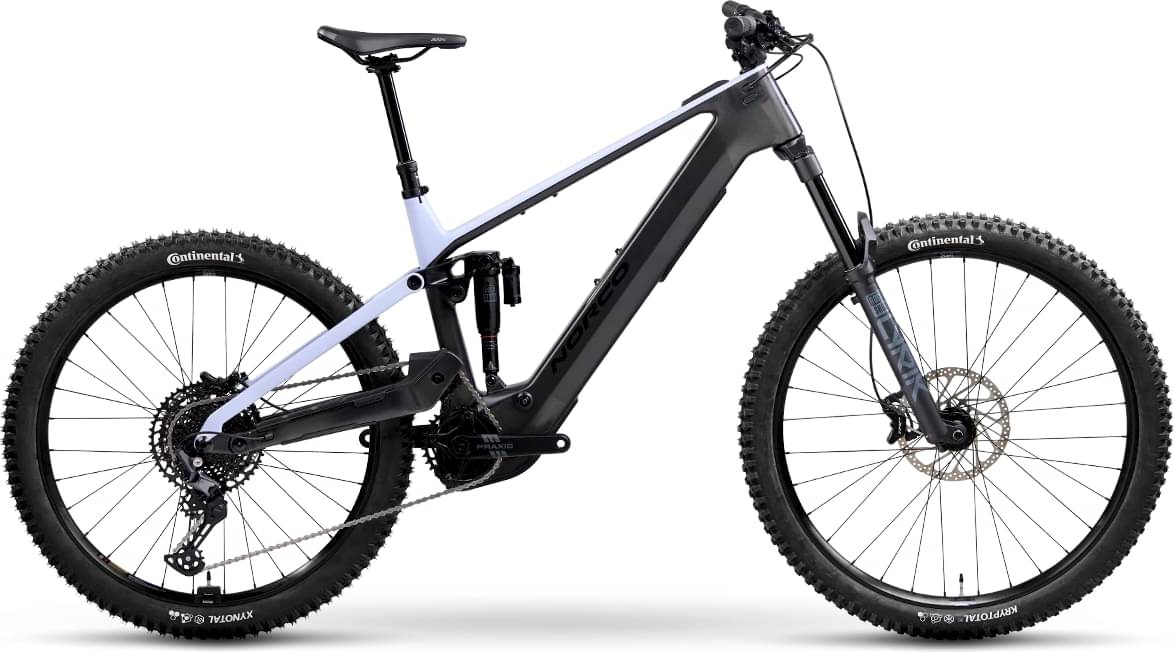

Norco Sight VLT CX C3 2025
2025 E-bike
Estimate price |
6,699$
Weight | 22.67 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox Lyrik Select
-
Groupset Deore -
Suspension Full -
Motor hub-drive -
Battery Bosch PowerTube 800 Wh -
Drivetrain 1 × 12 -
Brakes TRP Slate EVO Hydraulic Disc
Sizing
Recommended size guide.
2
162cm - 172cm
3
170cm - 180cm
4
177cm - 188cm
5
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Frame, 150mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
Suspension Fork
Rock Shox Lyrik Select 160mm
Rear Shock
Rock Shox Super Deluxe Select, 205x60mm TR
Drivetrain
Rear Derailleur
Shimano Deore RD-M6100, 12spd
Shift Levers
Shimano Deore SL-M6100-R, 12spd
Cassette
Shimano Deore CS-M6100-12, 10-51T, 12spd
Crank
Praxis HD Aluminum Bosch Cranks, 34T, 165mm
Bottom Bracket
Bosch BDU38
Chain
Shimano Deore CN-M6100, 12spd
Wheels
Front Hub
Bear Pawls BMB-013, 15x110 Boost, 32H, 6 Bolt
Rear Hub
Bear Pawls BMB-007, 12x148 Boost, HG, 32H, 6 Bolt
Rims
WTB STi30,30 mm, 32H, 29"-27.5 F/R
Tires
Front: Continental Kryptotal-F, Enduro, Soft, 29" x 2.4", Foldable, Rear: Continental Xynotal, Enduro, Soft, 27.5" x 2.4", Foldable
Brakes
Brakes
Front: TRP Slate EVO, Metallic Pads, Rear: TRP Slate EVO, Metallic Pads
Brake Levers
TRP Slate EVO
Cockpit
Stem
Norco Alloy, 40mm Length, 35mm Clamp
Handlebar
Norco 6061 DB Alloy, 800mm, 25mm
Grips
WTB Wavelength, 130mm Length
Headset
FSA No.55 Sealed Bearing, 1 1/8" - 1.5" Tapered, ( ZS44/28.6 | ZS56/40 )
Seat
Saddle
Fizik Terra Aidon X5
Seatpost
TranzX YSP23, 31.6mm, 125mm (S1) -150mm (S2) -170mm (S3) -200mm (S4, S5)
Motor & Battery
Motor
Drive Unit Performance Line CX BDU38
Battery
Bosch PowerTube 800 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 2 | 3 | 4 | 5 |
|---|---|---|---|---|
| Stack Reach Ratio | 1.401 mm | 1.346 mm | 1.296 mm | 1.252 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm | 349 mm |
| Front Center | 791 mm | 820 mm | 850 mm | 879 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 133 mm | 133 mm | 133 mm | 133 mm |
| Stack | 627 mm | 636 mm | 645 mm | 654 mm |
| Reach | 447.5 mm | 472.5 mm | 497.5 mm | 522.5 mm |
| Top Tube Length | 589 mm | 613 mm | 637 mm | 661 mm |
| Seat Tube Angle | 77.25 ° | 77.5 ° | 77.75 ° | 78 ° |
| Seat Tube Length | 395 mm | 415 mm | 445 mm | 475 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 432 mm | 436 mm | 440 mm | 444 mm |
| Wheelbase | 1222 mm | 1255 mm | 1289 mm | 1322 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 701 mm | 711 mm | 714 mm | 729 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 170 cm | 177 cm | 185 cm |
| Rider Max Height | 172 cm | 180 cm | 188 cm | 195 cm |
