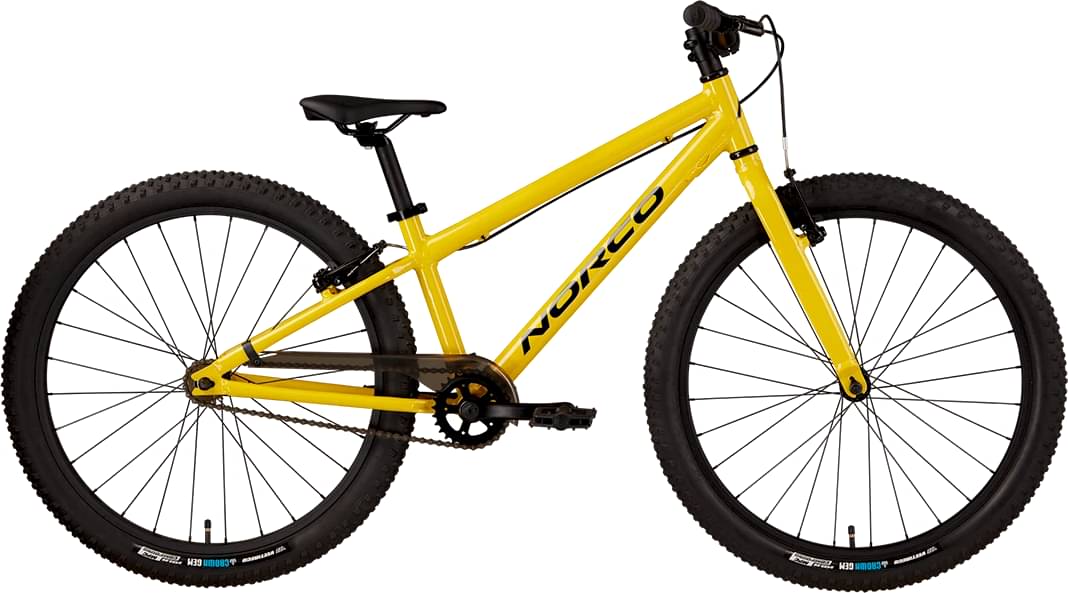

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 24" -
Suspension Rigid -
Drivetrain Single Speed -
Brakes Rim
Sizing
Recommended size guide.
24"
128cm - 142cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Rigid Alloy
Drivetrain
Cassette
16T Freewheel
Crank
Alloy Jr, 28T, 140mm
Bottom Bracket
Sealed Bearing
Chain
KMC
Pedals
Jr. MTB Flat
Wheels
Front Hub
Alloy Nutted
Rear Hub
Alloy Nutted Freewheel
Rims
Alloy 24", 28H
Tires
Front: Vee Crown Gem 2.25", Rear: Vee Crown Gem 2.25"
Brakes
Brakes
Front: Tektro Linear Pull, Rear: Tektro Linear Pull
Brake Levers
Tektro Linear Pull, 2-Finger, Reach Adjust
Cockpit
Stem
Alloy, 35mm Length, 31,8mm Clamp
Handlebar
Alloy Jr. Riser, 600mm, 30mm Rise
Grips
Norco Youth
Headset
Ball Bearing
Seat
Saddle
Norco Youth
Seatpost
Alloy 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 24" |
|---|---|
| Stack Reach Ratio | 1.344 mm |
| Bottom Bracket Height | 260 mm |
| Front Center | 587 mm |
| Rake | 41 mm |
| Stack | 484 mm |
| Reach | 360 mm |
| Top Tube Length | 527 mm |
| Seat Tube Angle | 71 ° |
| Seat Tube Length | 305 mm |
| Head Tube Angle | 67.5 ° |
| Head Tube Length | 108 mm |
| Chainstay Length | 385 mm |
| Wheelbase | 967 mm |
| Bottom Bracket Drop | 47 mm |
| Wheels | 24" |
| Rider Min Height | 128 cm |
| Rider Max Height | 142 cm |
