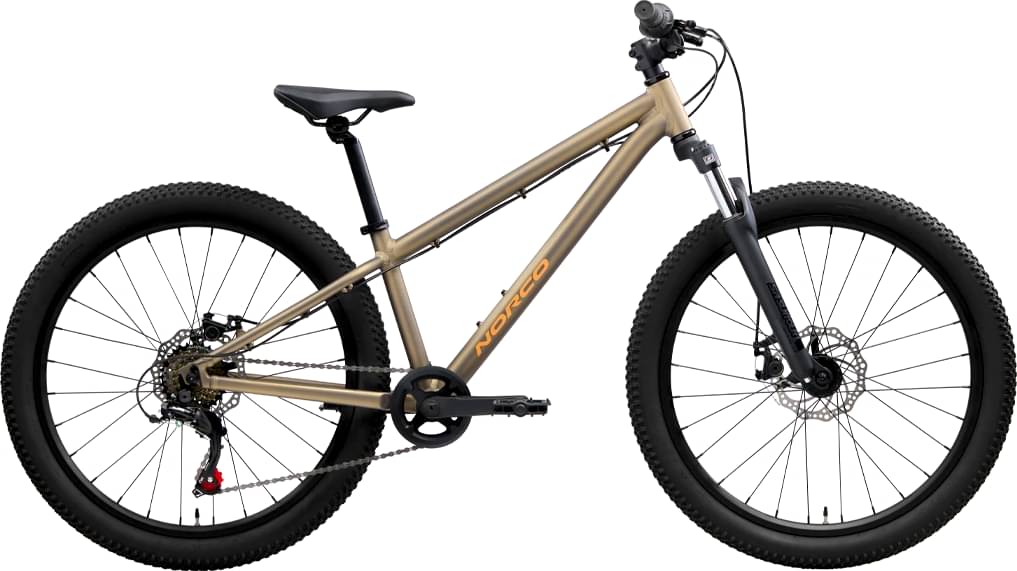

Norco Storm Youth 24 2025
2025 Youth
Estimate price |
541$
Weight | 12.04 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Suntour XCT
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 1 × 6 -
Brakes Tektro Mechanical Disc
Sizing
Recommended size guide.
24"
128cm - 142cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum, 9x135mm QR, 24"
Suspension Fork
SR Suntour XCT Coil w/Soft Spring and Preload, 80mm, 9X100 QR
Drivetrain
Rear Derailleur
Shimano TZ-500, 6sp, Direct mount
Shift Levers
Shimano SL-RV200-6R, 6sp, gripshift
Cassette
Shimano MF-TZ500-6, 14-28T, 6sp, Freewheel
Crank
Alloy 3pc, 140mm, 28T Narrow Wide
Bottom Bracket
Sealed bearing, ST 68mm
Chain
KMC Z6
Pedals
Jr. MTB Flat, 9/16"
Wheels
Front Hub
Formula DC-1420 , 9x100mm QR, 28h, 6-bolt
Rear Hub
Formula DC-31R-7S, 9x100mm QR, Freewheel, 28h, 6-bolt
Rims
Aluminum DW, 28h, 24" MTB
Tires
Front: CY Trail, 24x2.25", Wire, Rear: CY Trail, 24x2.25", Wire
Brakes
Brakes
Front: Tektro Aries, Resin pads, Mechanical Disc, Rear: Tektro Aries, Resin pads, Mechanical Disc
Brake Levers
Tektro Aries alloy Jr. Levers w/reach adjust
Cockpit
Stem
Alloy 40mm Length, 31.8mm Clamp
Handlebar
Alloy Jr. Riser, 600mm, 30mm Rise
Grips
Norco Youth, 115mm Length
Headset
External Cup Ball Bearing, 1-1/8" EC 34
Seat
Saddle
Norco Jr XC, Steel Rail
Seatpost
Norco Alloy 27.2mm, 250mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 24" |
|---|---|
| Stack Reach Ratio | 1.433 mm |
| Bottom Bracket Height | 267 mm |
| Front Center | 624 mm |
| Rake | 40 mm |
| Trail | 94 mm |
| Stack | 523 mm |
| Reach | 365 mm |
| Top Tube Length | 525 mm |
| Seat Tube Angle | 73 ° |
| Seat Tube Length | 305 mm |
| Head Tube Angle | 66 ° |
| Head Tube Length | 90 mm |
| Chainstay Length | 380 mm |
| Wheelbase | 1000 mm |
| Bottom Bracket Drop | 43 mm |
| Standover Height | 532 mm |
| Wheels | 24" |
| Rider Min Height | 128 cm |
| Rider Max Height | 142 cm |
