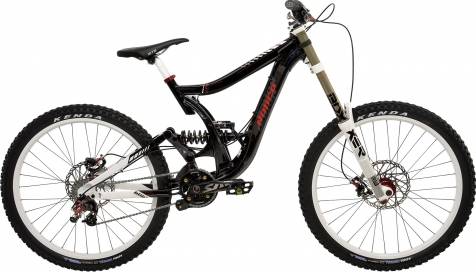

Norco Team DH 2010
2010 Mountain
Estimate price |
4,750$
Weight | 18 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 29" -
Travel Rear 228mm -
Fork RockShox BoXXer -
Groupset X0, X7 -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
2010 Team DH frame 228 mm travel
Suspension Fork
Rockshox Boxxer Team
Rear Shock
Rockshox Vivid Coil
Drivetrain
Rear Derailleur
SRAM X-0 Short cage
Front Derailleur
N/A
Shift Levers
SRAM X-7 with match maker lever
Cassette
SRAM DH cassette 11-26 T
Crank
Shimano Saint 170 mm
Bottom Bracket
with crank
Chain
KMC EX 9 SL chrome super light chain
Chain Tensioner
E13 LG1 w/taco guard
Pedals
DMR V 12 Magnesium
Wheels
Front Hub
Sun Jumping Flea 20 mm 32H disc
Rear Hub
Sun Jumping Flea 150 x 12 32H disc
Rims
Alex Supra D welded
Spokes
DT Super comp butted
Tires
Kenda Nevagal 26 x 2.35 Stick E , Cap Casing
Brakes
Brakes
Elixier CR (with match maker lever , rear only)
Brake Levers
Elixier CR (with match maker lever , rear only)
Cockpit
Stem
Sunline Boxxer direct mount stem , grey
Handlebar
Sunline V1 19 mm bar grey 711 or 737 mm
Grips
Sunline "S" lock on grip
Headset
FSA Orbit DL integrated 1.5" to 1-1/8"
Seat
Saddle
WTB Silverado with nicro tubular rail
Seatpost
Norco double bolt 2014
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 358 mm | 358 mm | 358 mm |
| Front Center | 709 mm | 724 mm | 753 mm |
| Top Tube Length | 571 mm | 591 mm | 621 mm |
| Seat Tube Angle | 70.8 ° | 70.8 ° | 70.8 ° |
| Seat Tube Length | 406 mm | 432 mm | 457 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 125 mm | 125 mm | 125 mm |
| Chainstay Length | 451 mm | 451 mm | 451 mm |
| Wheelbase | 1154 mm | 1174 mm | 1204 mm |
| Bottom Bracket Drop | 16 mm | 16 mm | 16 mm |
| Standover Height | 820 mm | 813 mm | 810 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Team DH belongs to the Norco Team Dh model. 6 bikes variations carry this model name so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Downhill bikes average price
According to our math, the average price for a trustworthy Downhill bike is 3391$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Downhill bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4750$. Comparing the average cost of a Downhill bike to this one, you will see that Team DH price is 40.08% more expensive.
Average weight for Downhill bikes
Downhill bikes have an average weight of 15.89 kg (35.03 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 18 kg (39.68 lbs), Norco bike is considerably heavier than average. In conclusion, the average Downhill bike weighs 13.28% less than Team DH.
Team DH components
Fork
The Team DH comes factory-installed with the RockShox BoXXer fork. This has a travel range of mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Team DH has a rear shock with a travel of 228mm. The model Rockshox Vivid Coil is the one installed in this bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the Team DH model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
