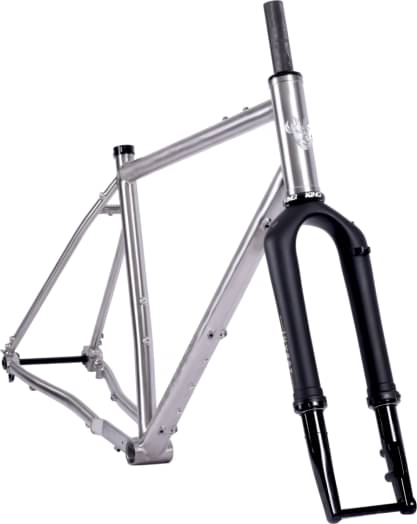

nordest 3003 TI CANE CREEK INVERT CS Frameset 2024
2024 Road
Estimate price |
3,612$
Weight | 1.75 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Titanium -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Seatclamp 31.8mm, include with frame
Suspension Fork
Design for 400mm taper fork with 52mm Rake
Drivetrain
Crank
46T max chainring in 1x or 50T/34/ in 2x
Seat
Seatpost
For 27.2mm seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.586 mm | 1.536 mm | 1.495 mm | 1.458 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm |
| Front Center | 620 mm | 645 mm | 671 mm | 696 mm |
| Rake | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 78 mm | 78 mm | 78 mm | 78 mm |
| Stack | 582 mm | 596 mm | 610 mm | 624 mm |
| Reach | 367 mm | 388 mm | 408 mm | 428 mm |
| Top Tube Length | 529 mm | 553 mm | 577 mm | 607 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 530 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 140 mm | 155 mm | 170 mm | 185 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1025 mm | 1051 mm | 1077 mm | 1102 mm |
| Bottom Bracket Drop | 85 mm | 85 mm | 85 mm | 85 mm |
| Wheels | 700 | 700 | 700 | 700 |
