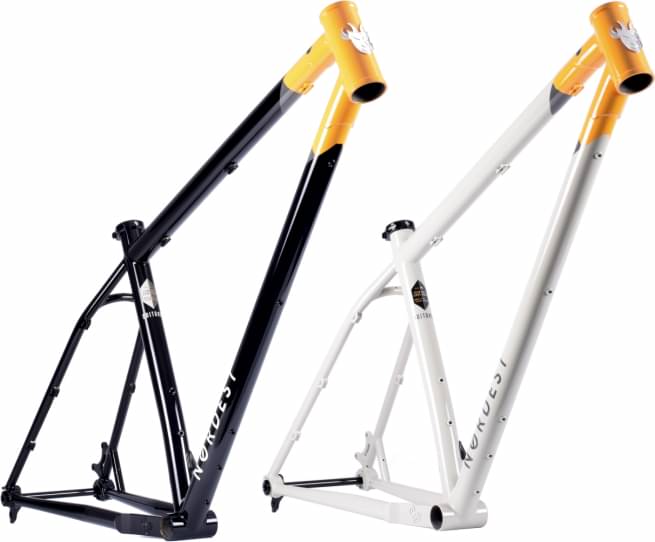

nordest BRITANGO 3 FRAME 2024
2024 Mountain
Estimate price |
802$
Weight | 2.69 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Suspension Full
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Thru Axle, seat clamp and dropouts includes with frame
Seat
Seatpost
For 31.6mm seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | MD/LG | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.377 mm | 1.339 mm | 1.315 mm |
| Bottom Bracket Height | 295 mm | 295 mm | 295 mm |
| Front Center | 760 mm | 780 mm | 800 mm |
| Rake | 48 mm | 44 mm | 37 mm |
| Trail | 113 mm | 117 mm | 125 mm |
| Stack | 614 mm | 624 mm | 639 mm |
| Reach | 446 mm | 466 mm | 486 mm |
| Top Tube Length | 609 mm | 634 mm | 656 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 440 mm | 465 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1178 mm | 1198 mm | 1218 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 27" | 27" | 27" |
