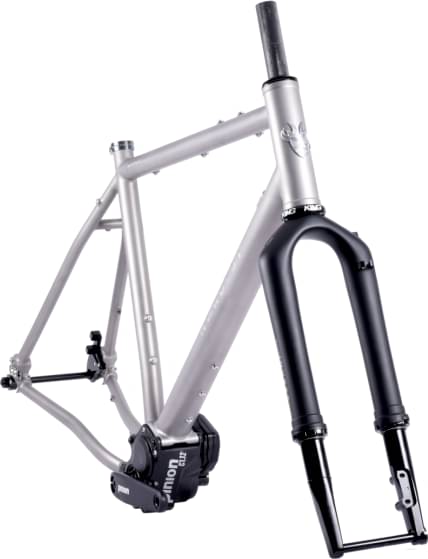

nordest CANDONGA 2 TI CANE CREEK INVERT CS Frameset 2024
2024 Road
Estimate price |
4,759$
Weight | 4.97 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Titanium -
Groupset Pinion -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Seatclamp 31.8mm, include with frame
Suspension Fork
Design for 400mm fork with 52mm Rake
Drivetrain
Shift Levers
Pinion C1.12 o C1.12i (SMART SHIFTER) gearbox
Seat
Seatpost
For 27.2mm seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.588 mm | 1.571 mm | 1.564 mm | 1.565 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm |
| Front Center | 607 mm | 626 mm | 637 mm | 650 |
| Rake | 42 mm | 43 mm | 42 mm | 42 mm |
| Trail | 86 mm | 85 mm | 86 mm | 86 mm |
| Stack | 586 mm | 600 mm | 610 mm | 623 mm |
| Reach | 369 mm | 382 mm | 390 mm | 398 mm |
| Top Tube Length | 537 mm | 554 mm | 565 mm | 576 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 480 mm | 500 mm | 520 mm | 545 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 140 mm | 155 mm | 165 mm | 180 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1023 mm | 1042 mm | 1053 mm | 1066 mm |
| Bottom Bracket Drop | 85 mm | 85 mm | 85 mm | 85 mm |
| Wheels | 700 | 700 | 700 | 700 |
