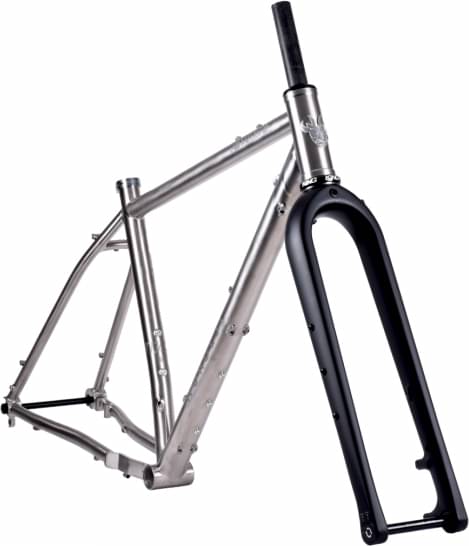

nordest KUTXO TI Frameset 2024
2024 Road
Estimate price |
2,442$
Weight | 1.84 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Titanium -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Frame Ti3Al2.5V titanium double butted.
Suspension Fork
Nordest Kutxo Carbon fork with 490mm A-C and 51mm rake. For postmount brake caliper.
Drivetrain
Crank
1x Chainring 36T max.
Bottom Bracket
Bottom bracket 68 mm BSA.
Wheels
Tires
Tires until 29er 2.4?.
Seat
Seatpost
For 31.6mm seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | MD/LG | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.483 mm | 1.467 mm | 1.435 mm |
| Front Center | 680 mm | 699 mm | 724 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 86 mm | 86 mm | 86 mm |
| Stack | 599 mm | 613 mm | 627 mm |
| Reach | 404 mm | 418 mm | 437 mm |
| Top Tube Length | 569 mm | 586 mm | 609 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 460 mm | 480 mm | 510 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 115 mm | 130 mm | 145 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1103 mm | 1122 mm | 1147 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" |
