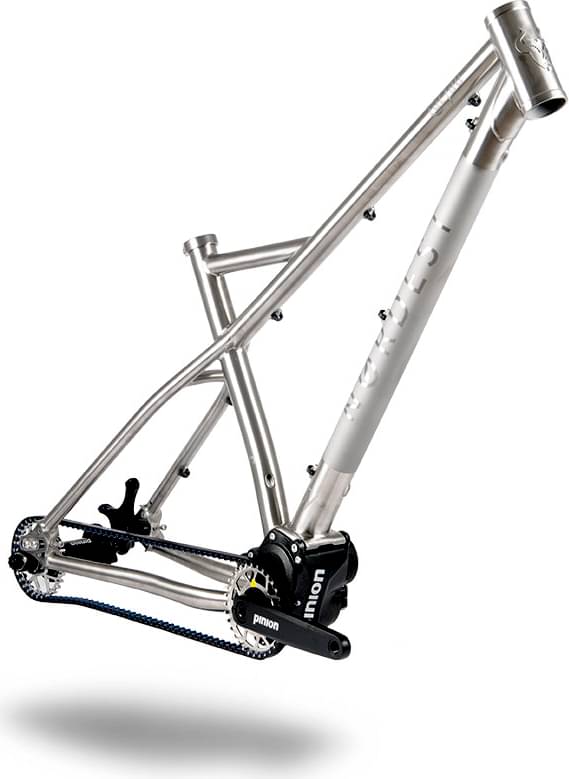

nordest LACRAU 3 TI FRAME 2023
2023 Mountain
Estimate price |
3,440$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Titanium -
Groupset Pinion -
Suspension Full
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Thru axle, seat clamp and dropout includes with frame.
Drivetrain
Shift Levers
Pinion C1.12 or C12i SMART SHIFTER gearbox.
Seat
Seatpost
Inner routing for dropper seatpost 31.6mm.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | MD/LG | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.426 mm | 1.372 mm | 1.334 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm |
| Front Center | 763 mm | 788 mm | 811 mm |
| Rake | 35 mm | 37 mm | 36 mm |
| Trail | 131 mm | 129 mm | 130 mm |
| Stack | 633 mm | 638 mm | 647 mm |
| Reach | 444 mm | 465 mm | 485 mm |
| Top Tube Length | 614 mm | 637 mm | 665 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75 ° |
| Seat Tube Length | 405 mm | 430 mm | 465 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1188 mm | 1213 mm | 1237 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm |
| Wheels | 27" | 27" | 27" |
