nordest MIRANDA TI FRAME 2024

2024 Road

Estimate price | 1,949$

Weight | 1.75 kg

Open compare Use advisor

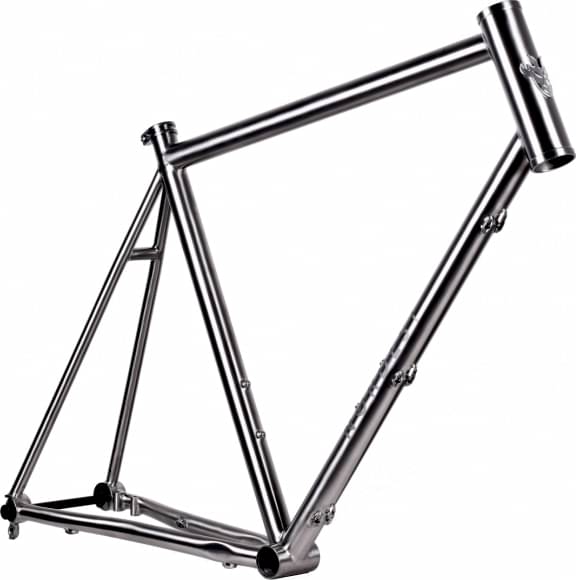

Nordest Miranda Ti Frame 2024

Bike details

Overview

Key information split into simple groups.

Frame summary

Category
- Road
- |
- Race
Frame Titanium
Suspension Rigid

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Seatclamp 31.8mm, include with frame

Drivetrain

Crank

53/36T max chainrings in 2x or 46T in 1x

Seat

Seatpost

For 27.2mm seatpost

Fit data

Geometry

Numbers for sizing and ride feel.

Size	50cm	52cm	54cm	56cm	58cm
Stack Reach Ratio	1.484 mm	1.509 mm	1.535 mm	1.554 mm	1.575 mm
Bottom Bracket Height	260 mm	260 mm	260 mm	263 mm	263 mm
Front Center	580 mm	588 mm	596 mm	604 mm	612 mm
Rake	43 mm	43 mm	43 mm	43 mm	43 mm
Trail	70 mm	70 mm	70 mm	70 mm	70 mm
Stack	546 mm	560 mm	574 mm	586 mm	600 mm
Reach	368 mm	371 mm	374 mm	377 mm	381 mm
Top Tube Length	521 mm	528 mm	540 mm	553 mm	565 mm
Seat Tube Angle	74.5 °	74.5 °	74 °	73.5 °	73 °
Seat Tube Length	460 mm	480 mm	500 mm	520 mm	545 mm
Head Tube Angle	71 °	71 °	71 °	71 °	71 °
Head Tube Length	130 mm	145 mm	160 mm	175 mm	190 mm
Chainstay Length	408 mm	408 mm	408 mm	410 mm	410 mm
Wheelbase	976 mm	984 mm	992 mm	1003 mm	1011 mm
Bottom Bracket Drop	76 mm	76 mm	76 mm	73 mm	73 mm
Wheels	700	700	700	700	700
