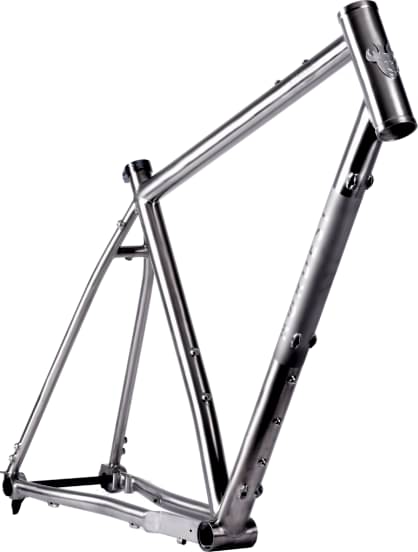

nordest SUPER ALBARDA 3 TI FRAME 2024
2024 Road
Estimate price |
1,977$
Weight | 1.75 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Titanium -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Seatclamp 31.8mm, include with frame
Suspension Fork
Design for 400mm taper fork with 52mm Rake
Drivetrain
Crank
46T max chainring in 1x or 50T/34/ in 2x
Seat
Seatpost
For 27.2mm seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | MD/LG | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.409 mm | 1.373 mm | 1.336 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 271 mm |
| Front Center | 682 mm | 709 mm | 730 mm |
| Rake | 52 mm | 52 mm | 52 mm |
| Trail | 85 mm | 85 mm | 85 mm |
| Stack | 586 mm | 600 mm | 609 mm |
| Reach | 416 mm | 437 mm | 456 mm |
| Top Tube Length | 578 mm | 603 mm | 625 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 500 mm | 520 mm | 485 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 155 mm | 170 mm | 180 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1090 mm | 1117 mm | 1139 mm |
| Bottom Bracket Drop | 78 mm | 78 mm | 78 mm |
| Wheels | 700 | 700 | 700 |
