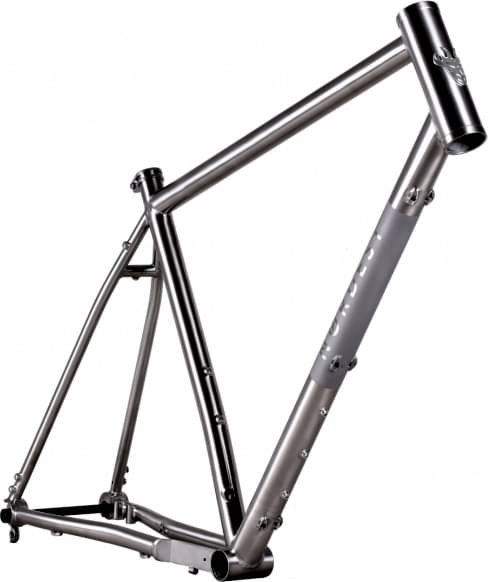

nordest SUPER ALBARDA TI FRAME 2024
2024 Road
Estimate price |
2,006$
Weight | 1.85 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Titanium -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Seatclamp 31.8mm, include with frame
Suspension Fork
Design for 400mm taper fork with 52mm Rake
Drivetrain
Crank
46T max chainring in 1x or 50T/34/ in 2x
Seat
Seatpost
For 27.2mm seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.471 mm | 1.431 mm | 1.397 mm | 1.355 mm |
| Bottom Bracket Height | 269 mm | 269 mm | 269 mm | 269 mm |
| Front Center | 652 mm | 676 mm | 702 mm | 725 mm |
| Rake | 52 mm | 51 mm | 52 mm | 51 mm |
| Trail | 85 mm | 86 mm | 85 mm | 86 mm |
| Stack | 575 mm | 588 mm | 602 mm | 611 mm |
| Reach | 391 mm | 411 mm | 431 mm | 451 mm |
| Top Tube Length | 551 mm | 579 mm | 604 mm | 625 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 480 mm | 500 mm | 520 mm | 545 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 140 mm | 155 mm | 170 mm | 180 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1059 mm | 1084 mm | 1110 mm | 1133 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm |
| Wheels | 700 | 700 | 700 | 700 |
