Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Performance Float 36
-
Groupset GX Eagle, NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

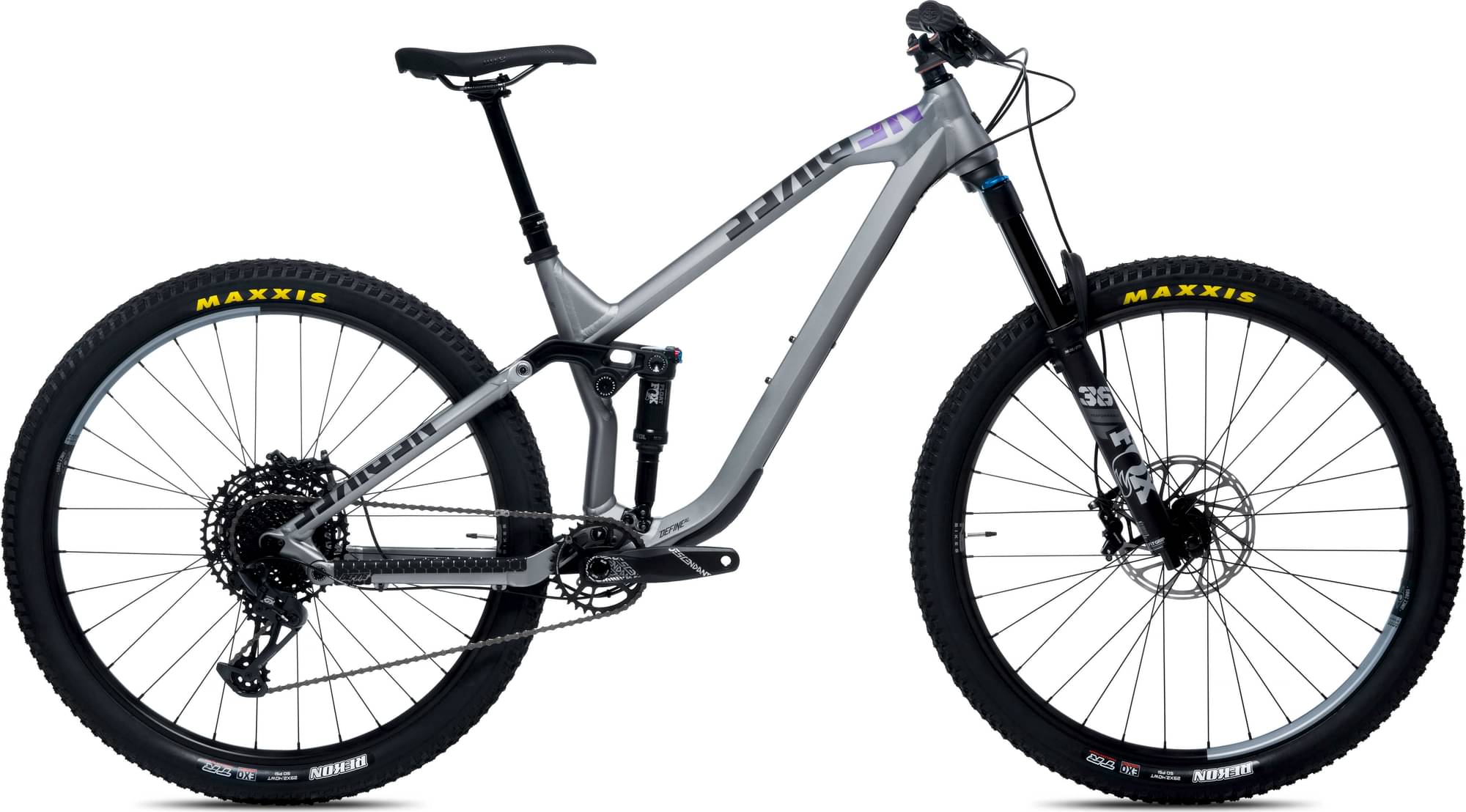

NS Bikes Define AL w/ 140mm travel
Suspension Fork
Fox Performance 36 Float Grip, 150mm travel, 3pos-Adj w/ Open Mode Adj, 15x110mm Boost, 1.5 tapered steerer tube, 44mm offset
Rear Shock
Fox Performance Float 2pos-Adj Evol LV Trunnion 205x57.5
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM NX Eagle
Cassette
SRAM PG-1210, 11-50t, 12spd
Crank
Truvativ Descendant 6K DUB 170 32t
Bottom Bracket
SRAM DUB BSA 73mm
Chain
SRAM SX Eagle
Wheels
Front Hub
NS Bikes Rotary
Rear Hub
NS Bikes Rotary
Rims
Octane One Solar 29”, 32h, tubeless ready
Tires
Maxxis Rekon EXO TR 29x2.4WT
Brakes
Brakes
Front: SRAM G2 R 4 piston, 200mm, Rear: SRAM G2 R 4 piston, 180mm
Cockpit
Stem
NS Bikes Quantum Lite 45mm, 35mm diameter
Handlebar
NS Bikes 35, 780mm, 20mm rise
Grips
NS Bikes Hold Fast supersoft
Headset
GW integrated tapered IS42/IS52, sealed bearings
Seat
Saddle
WTB Volt Medium Cromoly
Seatpost
Race Face Aeffect R 31,6mm diameter. S - 125mm, M - 150mm, L - 170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.374 mm | 1.313 mm |
| Bottom Bracket Height | 333 mm | 333 mm | 333 mm |
| Front Center | 761 mm | 795 mm | 829 mm |
| Rake | 46 mm | 47 mm | 48 mm |
| Trail | 124 mm | 123 mm | 122 mm |
| Stack | 628 mm | 636 mm | 646 mm |
| Reach | 433 mm | 463 mm | 492 mm |
| Top Tube Length | 585 mm | 618 mm | 651 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 396 mm | 432 mm | 483 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1198 mm | 1233 mm | 1267 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm |
| Standover Height | 742 mm | 738 mm | 735 mm |
| Front Travel | 150 mm | 150 mm | 150 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
