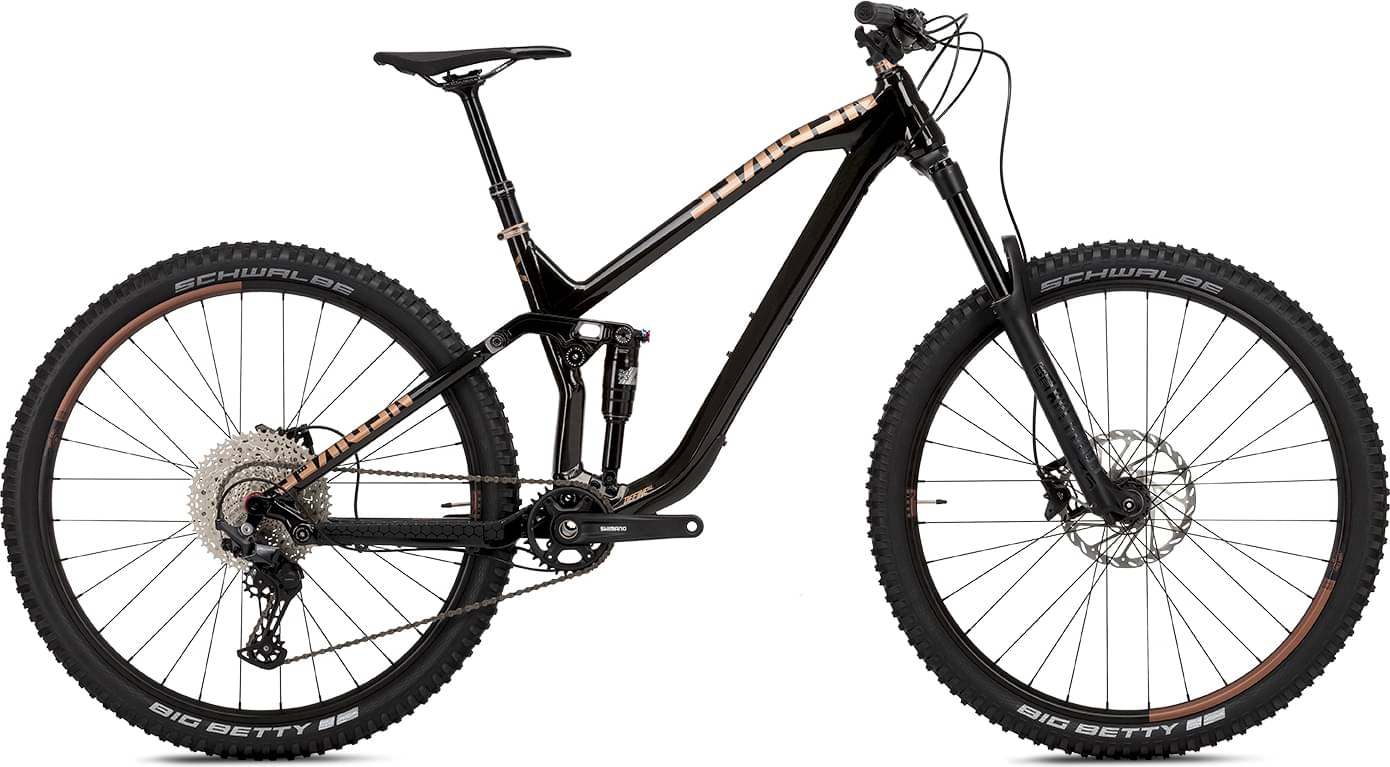

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox 35 Gold RL
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NS Define AL w/ 150mm travel, AL6061-T6 + AL6066-T6, custom hydroformed tubes,
Suspension Fork
Rock Shox 35 Gold RL 160mm travel, 15x110mm Boost, 1.5 tapered steerer tube
Rear Shock
Rock Shox Deluxe Select+ Trunnion 205x62,5
Drivetrain
Shift Levers
Shimano Deore M6100, 12spd
Cassette
Sunrace CSMZ800, 12spd 11-51T
Crank
Shimano Deore FC-MT510-1 170mm 32t
Bottom Bracket
Shimano BSA 73mm
Chain
Shimano, 12 spd
Chain Guide
/
Pedals
/
Wheels
Front Hub
NS 110x15mm Boost (sealed bearings)
Rear Hub
NS 148x12mm Boost (sealed bearings)
Rims
Octane One Solar 29”, tubeless compatible
Spokes
Spokes w/14mm nipples
Tires
Schwalbe Big Betty BikePark 29x2.4"
Brakes
Brakes
Shimano MT410, 200mm
Cockpit
Stem
NS Tone 35, 45mm
Handlebar
NS Bar 35, 800mm, 20mm rise
Grips
NS Hold Fast
Headset
integrated tapered IS42/IS52, sealed bearings
Seat
Saddle
WTB Volt Medium Steel SL
Seatpost
Kind shox rage i internal S-125, M-150, L-170mm, 31,6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.465 mm | 1.389 mm | 1.322 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm |
| Front Center | 763 mm | 798 mm | 832 mm |
| Rake | 14 mm | 14 mm | 14 mm |
| Trail | 163 mm | 163 mm | 163 mm |
| Stack | 630 mm | 639 mm | 648 mm |
| Reach | 430 mm | 460 mm | 490 mm |
| Top Tube Length | 586 mm | 619 mm | 652 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 396 mm | 432 mm | 483 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° |
| Chainstay Length | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1201 mm | 1236 mm | 1270 mm |
| Bottom Bracket Drop | -35 mm | -35 mm | -35 mm |
| Standover Height | 746 mm | 742 mm | 739 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
