Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Travel Rear 155mm -
Fork Fox Performance Float 36
-
Groupset NX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes SRAM Guide RE Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

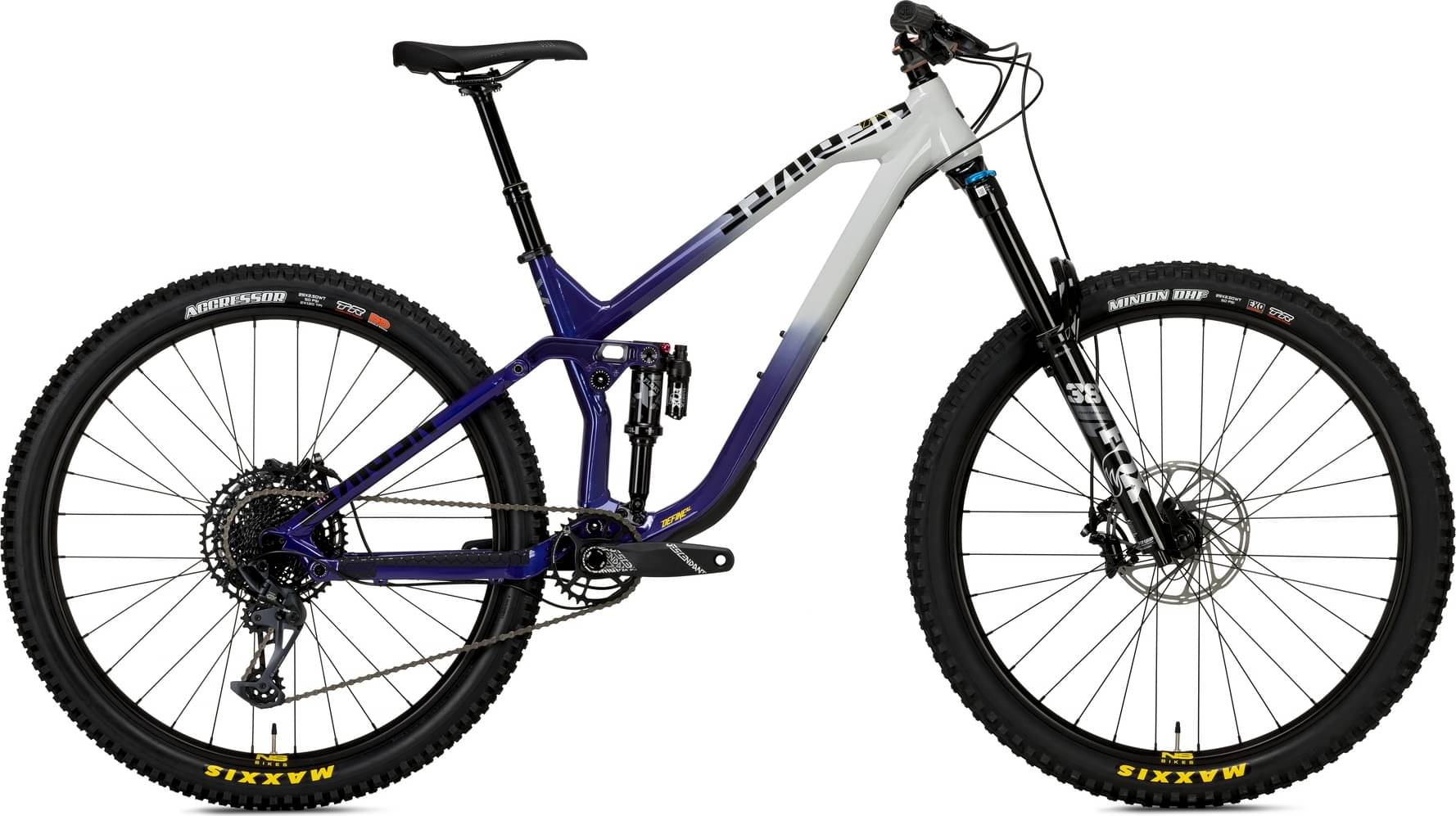

NS Define AL w/ 155mm travel
Suspension Fork
Fox Float 36 Performance Float Grip, 170mm travel, 3pos-Adj, 110x15mm Boost, 1.5" Tapered
Rear Shock
Fox Performace Float X 2pos-Adj Trunnion, Evol LV, DPX2 205x65
Drivetrain
Shift Levers
SRAM NX EAGLE, 12spd
Cassette
SRAM PG-1210, 12spd, 11-50t
Crank
Truvativ Descendant 6K DUB 170mm 32t
Bottom Bracket
SRAM DUB BSA 73mm
Chain
SRAM, 12 spd
Wheels
Front Hub
NS Rotary 15 Boost 15x110 disc (sealed bearings)
Rear Hub
NS Rotary Cassette 148x12mm Boost (sealed bearings)
Rims
Octane One Solar 29”, tubeless compatible
Tires
Maxxis DHF EXO/TR 29x2.5" WT
Brakes
Brakes
SRAM Guide RE, 200mm
Cockpit
Stem
NS Quantum Lite 35, 45mm
Handlebar
NS Bar 35, 800mm, 20mm rise
Grips
NS Hold Fast
Headset
integrated tapered IS42/IS52, sealed bearings
Seat
Saddle
WTB Volt Medium Cromoly
Seatpost
Race Face Aeffect R | S: 125, M: 150, L: 170mm, 31,6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.498 mm | 1.425 mm | 1.357 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm |
| Front Center | 770 mm | 804 mm | 838 mm |
| Rake | 22 mm | 20 mm | 20 mm |
| Trail | 158 mm | 160 mm | 160 mm |
| Stack | 632 mm | 644 mm | 654 mm |
| Reach | 422 mm | 452 mm | 482 mm |
| Top Tube Length | 587 mm | 621 mm | 652 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 396 mm | 432 mm | 483 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Chainstay Length | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1208 mm | 1242 mm | 1277 mm |
| Bottom Bracket Drop | -30 mm | -30 mm | -30 mm |
| Standover Height | 765 mm | 757 mm | 752 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
