Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 180mm -
Travel Rear 170mm -
Fork RockShox ZEB
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

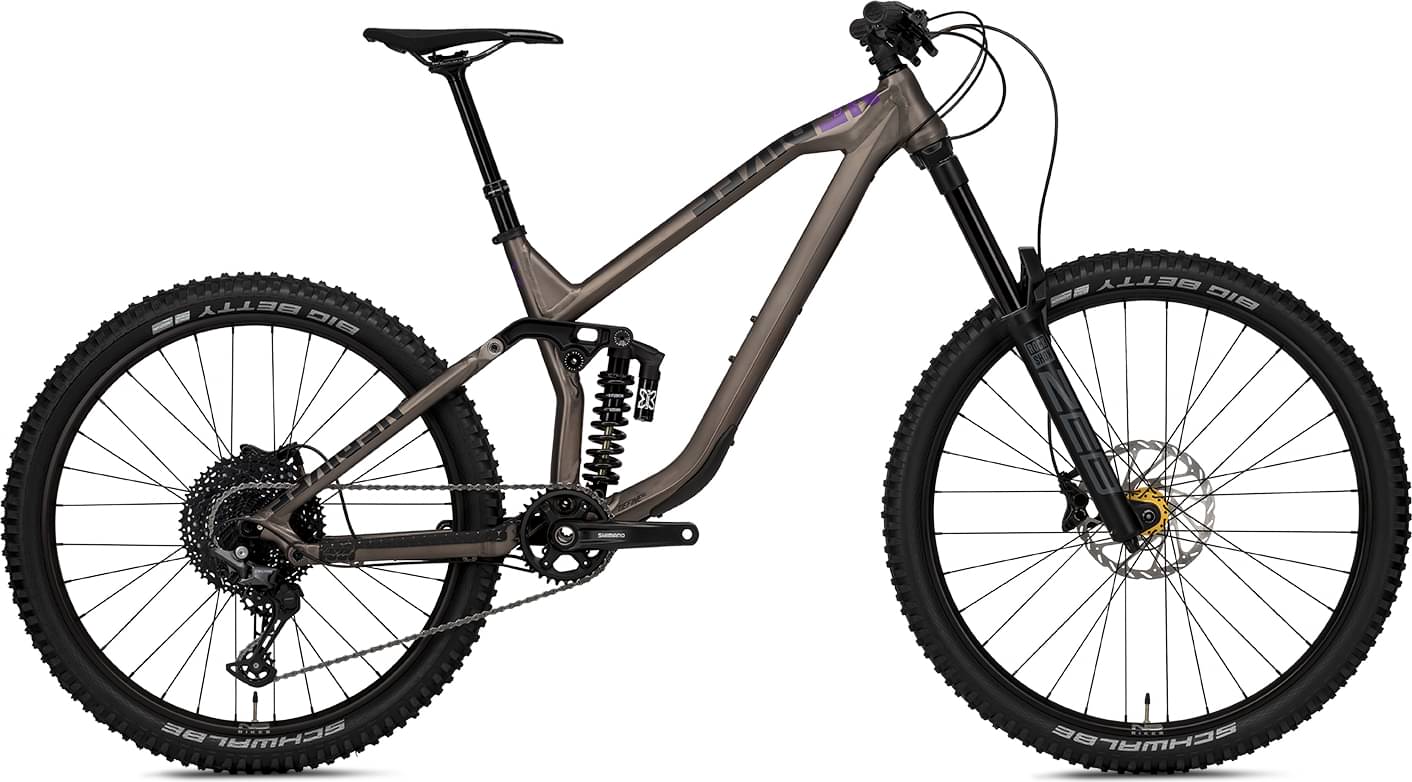

NS Define AL w/ 170mm travel, AL6061-T6 + AL6066-T6, custom hydroformed tubes, semi internal cable routing
Suspension Fork
RockShox ZEB 180mm travel, 110x15mm Boost, 1.5T, 44mm offset
Rear Shock
Marzocchi Bomber CR Trunnion 225x70, S-400, M-450, L-500 lbs/in
Drivetrain
Rear Derailleur
Shimano Deore M6100, 12spd
Shift Levers
Shimano Deore M6100, 12spd
Cassette
Sunrace CSMZ800, 12spd 11-51T
Crank
Shimano Deore FCMT510-1 170mm 34t
Bottom Bracket
Shimano BSA 73mm
Chain
Shimano, 12 spd
Chain Guide
/
Pedals
/
Wheels
Front Hub
NS 15 Boost 110x15mm disc (sealed bearings)
Rear Hub
NS 148x12mm Boost (sealed bearings)
Rims
Octane One Solar 29” front, Octane One Solar 27.5” rear, 32h, tubeless ready
Spokes
Spokes w/14mm nipples
Tires
Schwalbe Big Betty BikePark 29x2.4" / Schwalbe Big Betty BikePark 27.5x2.4"
Brakes
Brakes
Front: Shimano MT420, 200mm, Rear: Shimano MT420, 200mm
Cockpit
Stem
NS Tone 35, 45mm
Handlebar
NS Bar 35, 800mm, 20mm rise
Grips
NS Hold Fast
Headset
GW integrated tapered IS42/IS52, sealed bearings
Seat
Saddle
Octane OneRocket2, CrMo hollow rails
Seatpost
X-Fusion Manic internal S
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.498 mm | 1.4 mm | 1.333 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm |
| Front Center | 781 mm | 811 mm | 846 mm |
| Rake | 35 mm | 35 mm | 37 mm |
| Trail | 140 mm | 140 mm | 138 mm |
| Stack | 644 mm | 644 mm | 653 mm |
| Reach | 430 mm | 460 mm | 490 mm |
| Top Tube Length | 592 mm | 624 mm | 654 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 396 mm | 432 mm | 483 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1218 mm | 1248 mm | 1284 mm |
| Bottom Bracket Drop | -7 mm | -7 mm | -7 mm |
| Standover Height | 765 mm | 757 mm | 752 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
