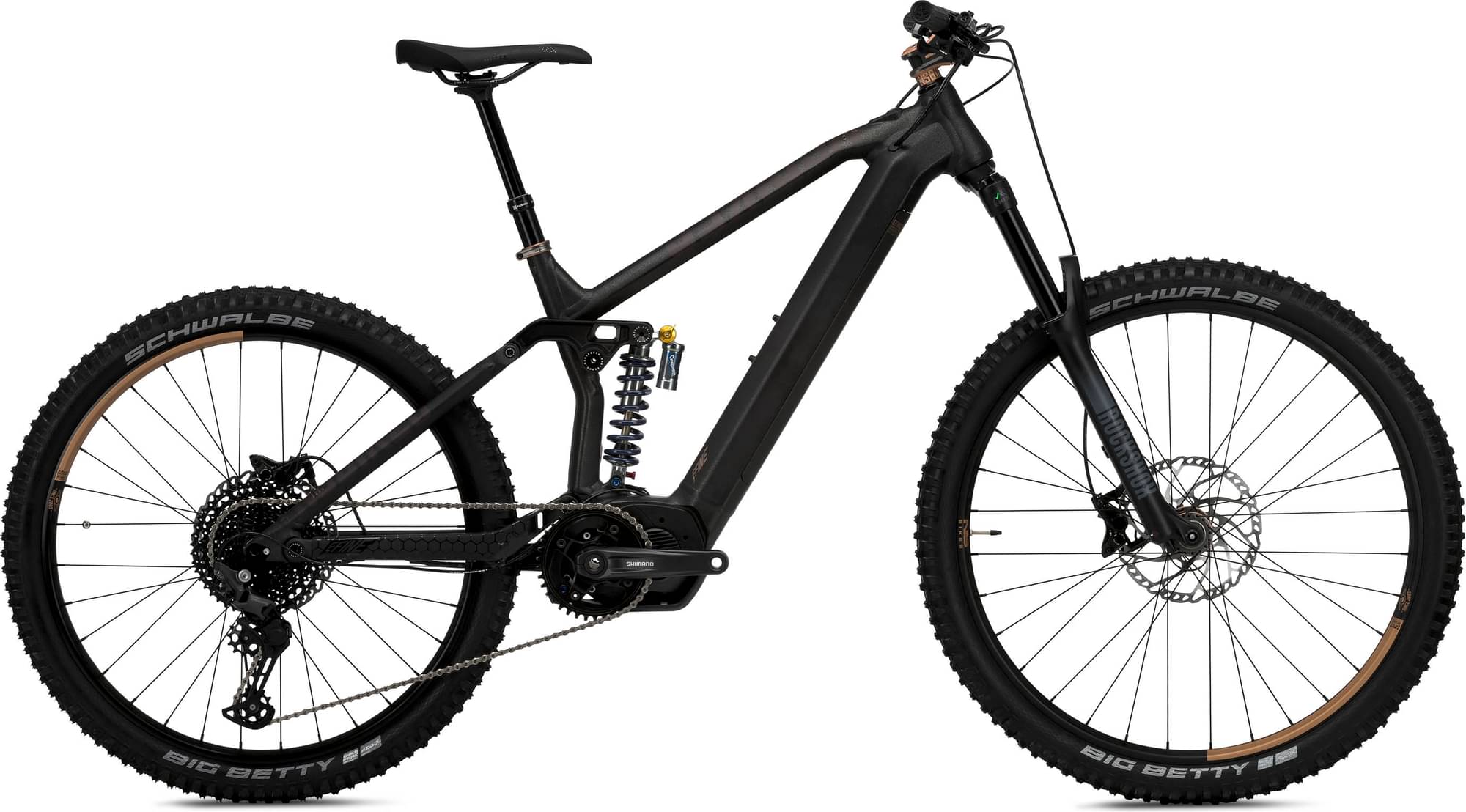

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox 35 Gold RL
-
Groupset Deore -
Suspension Full -
Motor Shimano 250W 60Nm mid-drive -
Battery SHIMANO STEPS -
Drivetrain 1 × 11 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NS Bikes E-fine AL w/ 150mm travel, AL6061-T6 + AL6066-T6, custom hydroformed tubes, Shimano Steps E7000 system 504WH integrated Shimano battery
Suspension Fork
Rock Shox 35 GOLD RL CROWN ADJUST 29, DEBONAIR 160MM travel E-MTB,15x110mm Boost, 1.5 tapered steerer tube, 44mm offset
Rear Shock
X-FUSION H3C Trunnion 205x62,5, spring
Drivetrain
Rear Derailleur
Shimano Deore RD-M5100, 11spd
Shift Levers
Shimano Deore SL-M5100-R, 11spd
Cassette
Sun Race CSMS7, 11-46t, 11spd
Crank
Shimano FC-E8000, 165mm, 38t
Bottom Bracket
Shimano Steps E7000
Chain
KMC e11 Silver, 11spd
Chain Guide
/
Pedals
/
Wheels
Front Hub
NS Bikes Rotary 110x15mm Boost (sealed bearings)
Rear Hub
NS Rotary Cassette 148x12mm Boost (sealed bearings)
Rims
Octane One Solar 29” front, Octane One Solar 27.5” rear, 32h, tubeless ready
Spokes
Spokes w/14mm nipples
Tires
Schwalbe big betty BikePark 29x2.4" / Schwalbe big betty BikePark 27.5x2.4"
Brakes
Brakes
Front: Shimano Deore MT420 4 piston, 203mm, Rear: Shimano Deore MT420 4 piston, 203mm
Cockpit
Stem
NS Quantum Lite 35, 45mm
Handlebar
NS Bar 35, 800mm, 20mm rise
Grips
NS Hold Fast
Headset
NS Bikes custom tapered IS42/IS52, sealed bearing
Seat
Saddle
WTB Volt Medium Cromoly
Seatpost
X-Fusion Manic internal S
Motor & Battery
Motor
Shimano E7000
Battery
SHIMANO STEPS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.496 mm | 1.429 mm | 1.365 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 335 mm |
| Front Center | 779 mm | 805 mm | 838 mm |
| Rake | 32 mm | 26 mm | 27 mm |
| Trail | 149 mm | 155 mm | 154 mm |
| Stack | 636 mm | 646 mm | 655 mm |
| Reach | 425 mm | 452 mm | 480 mm |
| Top Tube Length | 597 mm | 622 mm | 654 mm |
| Seat Tube Angle | 75.2 ° | 75.2 ° | 75.2 ° |
| Seat Tube Length | 396 mm | 432 mm | 480 mm |
| Head Tube Angle | 63.8 ° | 63.8 ° | 63.8 ° |
| Head Tube Length | 120 mm | 120 mm | 120 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1233 mm | 1259 mm | 1292 mm |
| Bottom Bracket Drop | -10 mm | -10 mm | -10 mm |
| Standover Height | 783 mm | 786 mm | 789 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
