Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 200mm -
Travel Rear 203mm -
Fork RockShox BoXXer Select
-
Groupset GX -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

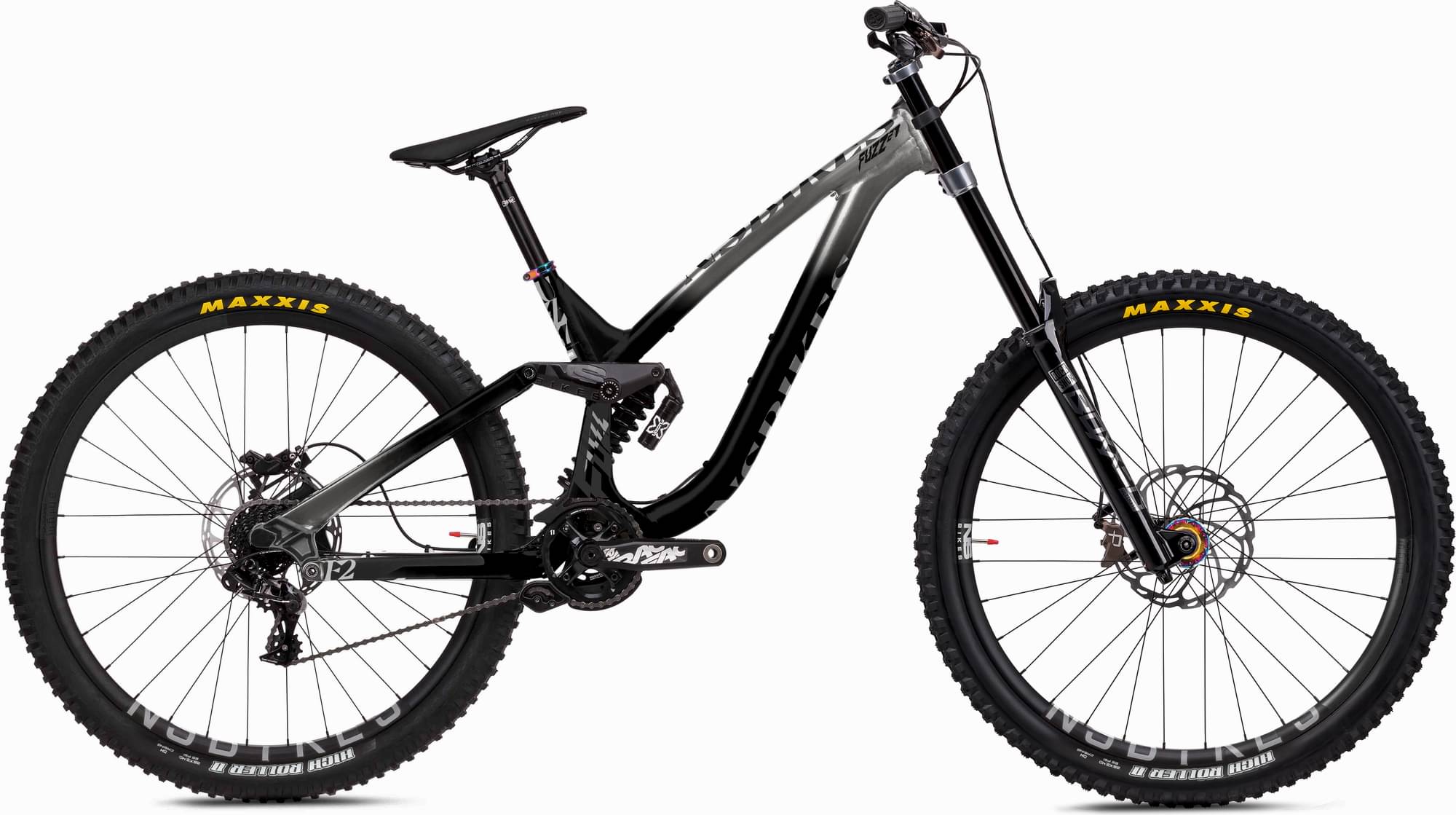

NS Fuzz 27.5 w/ 203mm travel, adjustable CS length, 1.5'' head tube with custom reach adjustable offset cups (+/- 16mm), AL6061-T6 +AL6066-T6, custom formed and butted tubes
Suspension Fork
Rock Shox Boxxer Select RC 27.5, DebonAir Charger RC, 200mm travel, 46mm rake, 20x110mm Boost, 1&1/8” steerer
Rear Shock
Marzocchi Bomber CR Trunnion 240x76, M-400, L-450 lbs/in
Drivetrain
Shift Levers
SRAM GX, 10spd
Cassette
Sunrace CSMS1 TAW 11-32t, 10spd
Crank
Race Face Chester Affect 165mm 36t
Bottom Bracket
Race Face BSA 83mm
Chain
KMC, 10 spd
Chain Guide
Mozartt Presto ST with bashguard
Pedals
/
Wheels
Front Hub
NS Rotary 20 Boost 110x20 disc (sealed bearings)
Rear Hub
NS Rotary Cassette 157x12mm (sealed bearings)
Rims
Octane One Solar 27.5”, 32h, tubeless compatible
Spokes
Spokes w/14mm nipples
Tires
Maxxis High Roller II DH 3C MaxxGrip 27.5x2.4"
Brakes
Brakes
SRAM Guide RE, 200mm
Cockpit
Stem
NS Direct Mount 31.8 (40-48mm / 2 positions)
Handlebar
NS Bar 780mm, 20mm rise
Grips
NS Hold Fast
Headset
NS custom 1.5" EX56/56, sealed bearings, reach adjustable offset cups (+/- 16mm)
Seat
Saddle
WTB Volt Medium Steel SL
Seatpost
Kalloy, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.342 mm | 1.304 mm |
| Bottom Bracket Height | 360 mm | 360 mm |
| Front Center | 809 mm | 834 mm |
| Rake | 43 mm | 44 mm |
| Trail | 133 mm | 132 mm |
| Stack | 604 mm | 613 mm |
| Reach | 450 mm | 470 mm |
| Top Tube Length | 631 mm | 655 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 411 mm |
| Head Tube Angle | 63 ° | 63 ° |
| Head Tube Length | 110 mm | 120 mm |
| Chainstay Length | 447 mm | 454 mm |
| Wheelbase | 1256 mm | 1288 mm |
| Bottom Bracket Drop | -5 mm | -5 mm |
| Standover Height | 689 mm | 688 mm |
| Wheels | 27" | 27" |
