Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 200mm -
Travel Rear 190mm -
Fork RockShox BoXXer Select
-
Groupset GX -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

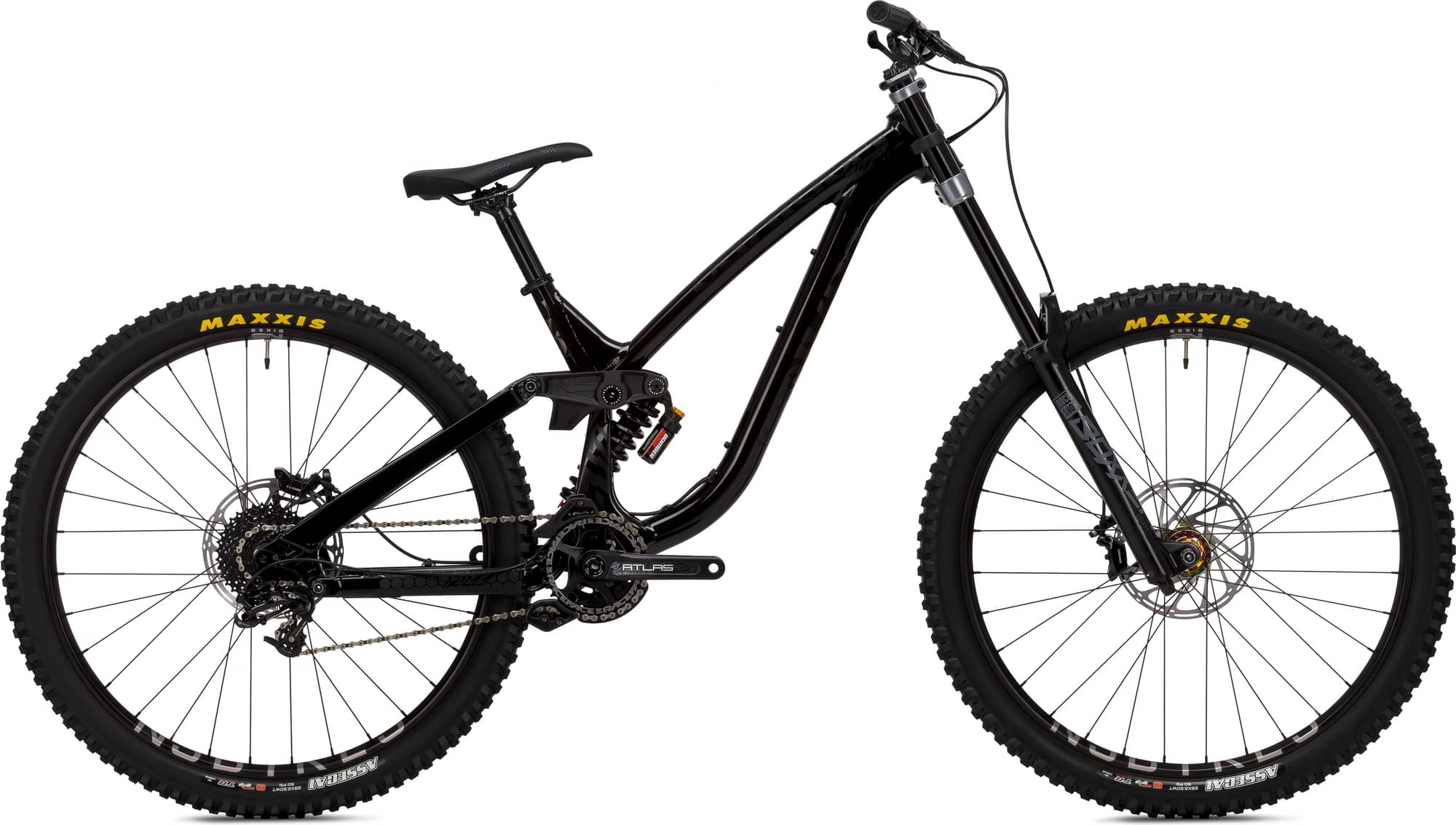

NS Fuzz 29 w/ 190mm travel, 1.5'' head tube with custom reach adjustable offset cups (+/- 16mm), AL6061-T6 +AL6066-T6, custom formed and butted tubes
Suspension Fork
Rock Shox Boxxer Select RC 29, DebonAir Charger RC, 200mm travel, 46mm rake, 20x110mm Boost, 1&1/8” steerer
Rear Shock
Marzocchi Bomber CR Trunnion Trunion 225x75, M-450, L-500 lbs/in
Drivetrain
Shift Levers
SRAM GX, 10spd
Cassette
Sunrace 10spd 11-32
Crank
Race Face Chester Affect 165mm 36t
Bottom Bracket
Race Face BSA 83mm
Chain
KMC, 10 spd
Chain Guide
Mozartt Presto ST with bashguard
Pedals
/
Wheels
Front Hub
NS Rotary 20 Boost 110x20 disc (sealed bearings)
Rear Hub
NS Rotary Cassette 157x12mm (sealed bearings)
Rims
Octane One Solar 29”, 32h, tubeless compatible
Spokes
Spokes w/14mm nipples
Tires
Maxxis Assegai MaxxGrip 3C DH TR 29.5x2.50
Brakes
Brakes
SRAM Guide RE, 200mm
Cockpit
Stem
NS Direct Mount 31.8 (40-48mm / 2 positions)
Handlebar
NS Bar 31.8, 780mm, 30mm rise
Grips
NS Hold Fast supersoft
Headset
NS custom 1.5" EX56/56, sealed bearings, reach adjustable offset cups (+/- 16mm)
Seat
Saddle
Octane One Rocket2, CrMo hollow rails
Seatpost
Kalloy, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.402 mm | 1.35 mm |
| Bottom Bracket Height | 390 mm | 390 mm |
| Front Center | 820 mm | 849 mm |
| Rake | 39 mm | 40 mm |
| Trail | 147 mm | 146 mm |
| Stack | 628 mm | 637 mm |
| Reach | 448 mm | 472 mm |
| Top Tube Length | 649 mm | 678 mm |
| Seat Tube Angle | 72 ° | 72 ° |
| Seat Tube Length | 402 mm | 402 mm |
| Head Tube Angle | 63 ° | 63 ° |
| Head Tube Length | 100 mm | 110 mm |
| Chainstay Length | 455 mm | 455 mm |
| Wheelbase | 1275 mm | 1304 mm |
| Bottom Bracket Drop | -16 mm | -16 mm |
| Standover Height | 718 mm | 720 mm |
| Wheels | 29" | 29" |
