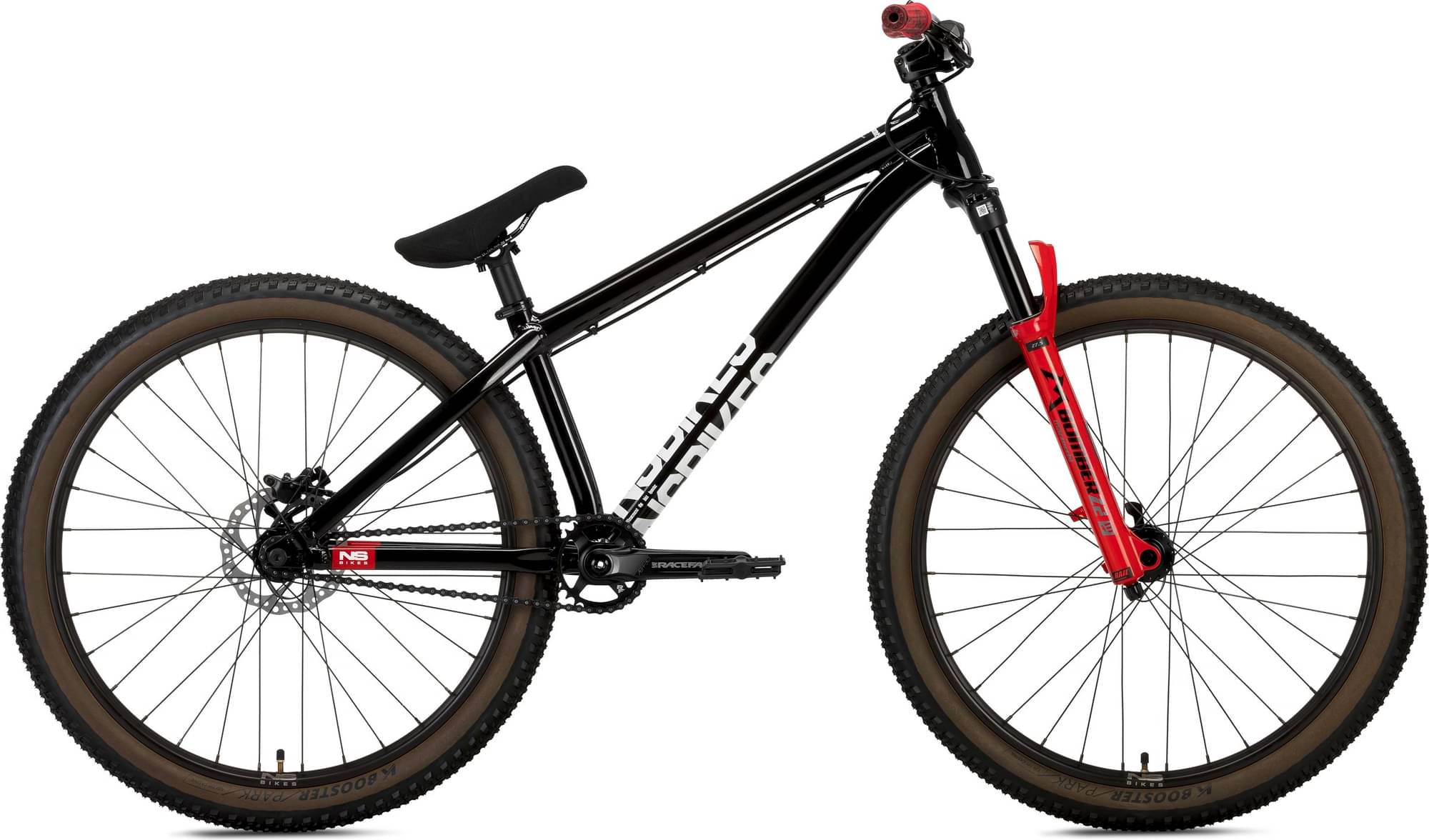

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Marzocchi Bomber Z2
-
Groupset Race Face -
Suspension Hardtail -
Brakes Tektro Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NS Bikes AL6061-T6 custom formed and butted tubes, 135x10 horizontal dropouts w/ tensioners
Suspension Fork
Marzocchi Bomber Z2 E-bike+, 100mm travel, 110x15mm, 1.5T
Rear Shock
-
Drivetrain
Shift Levers
-
Cassette
Driver 10t
Crank
RaceFace Aeffect 170mm
Bottom Bracket
RafeFace BSA 73mm (sealed bearings)
Chain
PYC P510H, 1spd
Chain Guide
-
Pedals
NS Nylon
Wheels
Front Hub
NS 110x15mm (sealed bearings)
Rear Hub
NS 135x10mm single speed, 10T driver (sealed bearings)
Rims
NS Bikes Dirt 26", 29mm wide, 32h
Spokes
Spokes w/14mm nipples
Tires
Kenda Booster Pro 26x2.25"
Brakes
Brakes
Tektro MD-M280 Aries Mechanical disc brake, 160mm
Cockpit
Stem
NS Chemical 31.8, 40mm
Handlebar
NS Bikes Dirt 760mm, 1.5" rise
Grips
NS Hold Fast Unlocked
Headset
GW integrated tapered IS42/IS52, sealed bearings
Seat
Saddle
NS Dirt slim saddle
Seatpost
NS Dirt 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 26" |
|---|---|
| Stack Reach Ratio | 1.366 mm |
| Bottom Bracket Height | 320 mm |
| Front Center | 652 mm |
| Rake | 40 mm |
| Trail | 82 mm |
| Stack | 560 mm |
| Reach | 410 mm |
| Top Tube Length | 593 mm |
| Seat Tube Length | 328 mm |
| Head Tube Angle | 70 ° |
| Head Tube Length | 115 mm |
| Chainstay Length | 381 mm |
| Wheelbase | 1032 mm |
| Bottom Bracket Drop | 15 mm |
| Standover Height | 743 mm |
| Wheels | 26" |
| Rider Min Height | 120 cm |
