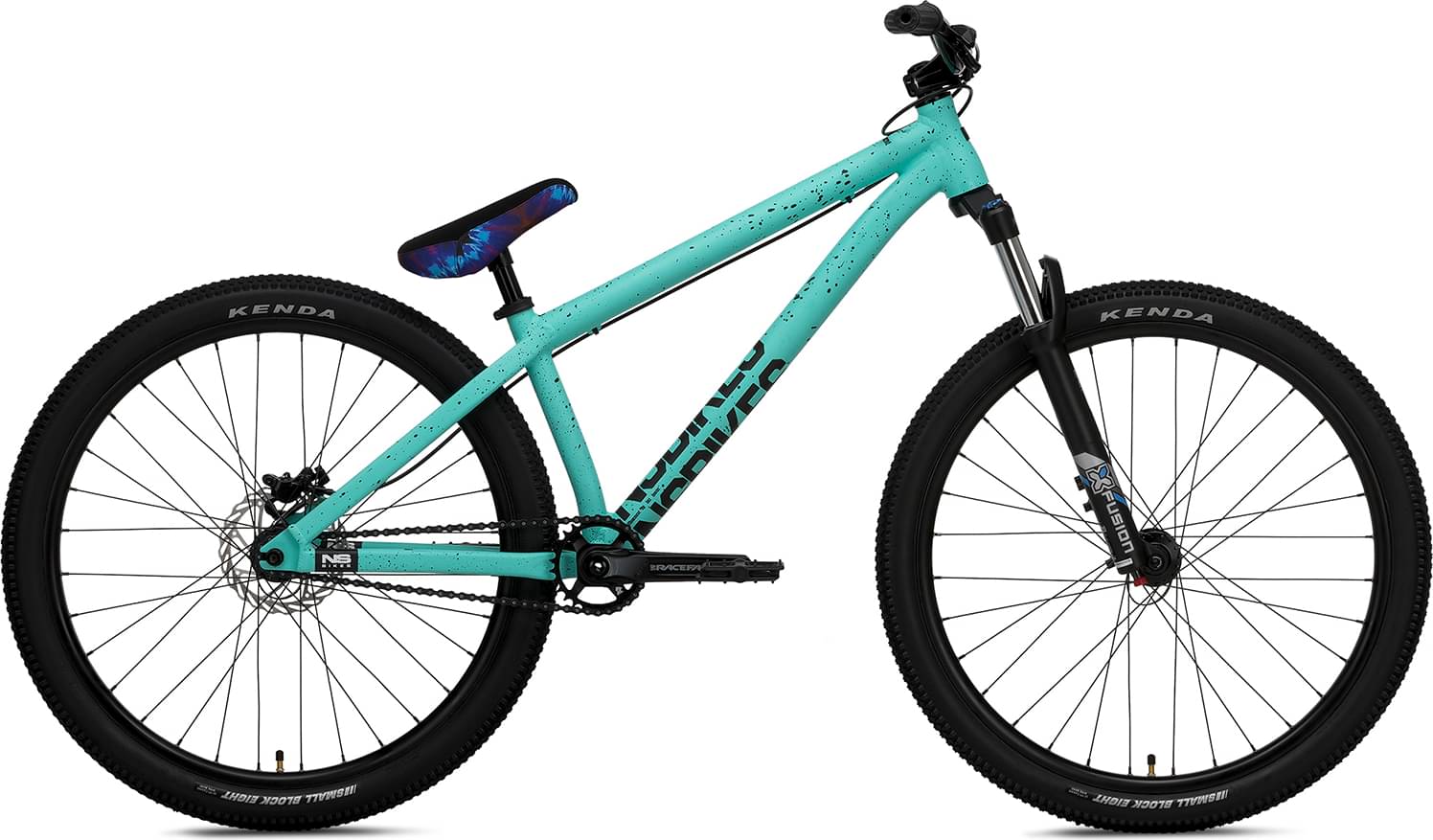

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork X-Fusion MIG
-
Groupset Race Face -
Suspension Hardtail -
Drivetrain Single Speed -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NS AL6061-T6 custom formed and butted tubes, tapered integrated headtube
Suspension Fork
X-Fusion MIG RC, 100mm travel, 110x15mm Boost, 1.5T
Rear Shock
/
Drivetrain
Rear Derailleur
/
Shift Levers
/
Cassette
/
Crank
Race Face Aeffect 170mm 28t
Bottom Bracket
Race Face BSA 68mm
Chain
PYC-510H, 1spd
Chain Guide
/
Pedals
NS Nylon
Wheels
Front Hub
NS 110x15mm (sealed bearings)
Rear Hub
NS Bikes 135x10mm single speed, 10T driver (loose ball)
Rims
NS Bikes Rival 30 26”, 32h
Spokes
Spokes w/14mm nipples
Tires
Kenda Small Block 8 26x2.1
Brakes
Brakes
Front: Shimano BR-M375 160mm, Rear: Nutt Y-2-1 hydraulic, 160mm
Cockpit
Stem
NS Chemical 25.4
Handlebar
NS Lick, 740mm
Grips
NS Hold Fast Unlocked
Headset
GW integrated tapered IS42/IS52, sealed bearings
Seat
Saddle
NS Bikes 30.9
Seatpost
NS Bikes Rails
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Stack Reach Ratio | 1.383 mm |
| Bottom Bracket Height | 358 mm |
| Front Center | 648 mm |
| Rake | 31 mm |
| Trail | 92 mm |
| Stack | 560 mm |
| Reach | 405 mm |
| Top Tube Length | 589 mm |
| Seat Tube Angle | 70 ° |
| Seat Tube Length | 328 mm |
| Head Tube Angle | 70 ° |
| Chainstay Length | 381 mm |
| Wheelbase | 1028 mm |
| Bottom Bracket Drop | -15 mm |
| Standover Height | 743 mm |
| Wheels | 26" |
| Rider Min Height | 120 cm |
