Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Factory Float 32
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

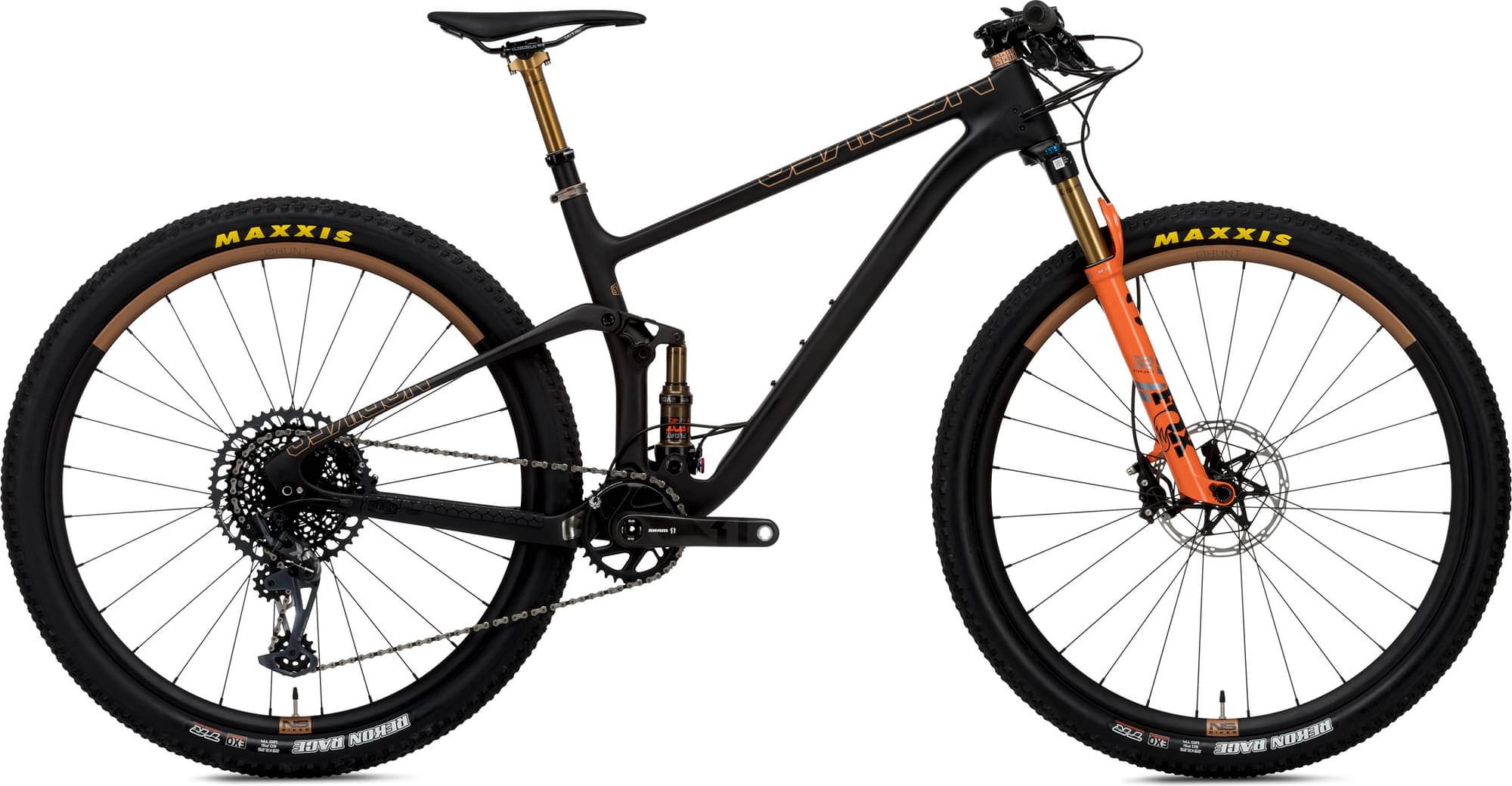

NS Synonym, superlite carbon fibre w/ 100mm travel
Suspension Fork
Fox Factory 32 Step Cast Float FIT4, 100mm travel, 2pos remote lockout w/ Open Mode Adj, push-to-unlock, 15x110mm Boost, 1.5 tapered steerer tube, 44 offset
Rear Shock
Fox Factory Float DPS 2pos remote lockout, push-to-unlock, Evol LV Trunnion 165x37.5
Drivetrain
Shift Levers
SRAM GX Eagle, 12spd
Cassette
SRAM XG-1295, 10-50t 12 speed
Crank
Truvativ X1 Carbon DUB 170mm 34t (XL size 175mm)
Bottom Bracket
SRAM DUB Press Fit BB92
Chain
SRAM, 12 spd
Chain Guide
/
Pedals
/
Wheels
Front Hub
NSBikesxHunt straight pull 110x15mm Boost (sealed bearings)
Rear Hub
NSBikesxHunt straight pull 148x12mm Boost (sealed bearings)
Rims
NSBikesxHunt 29", 32h, tubeless ready
Spokes
Straight Pull Spokes
Tires
Maxxis Ikon 2.2 TR / Recon Race 2.25 EXO/TR
Brakes
Brakes
SRAM Level TLM, 180mm
Cockpit
Stem
Synonym Race 31.8 (S:60, M:70, L & XL:80mm), angle - 8°
Handlebar
NS Licence Carbon Flat Lite 31.8, 750mm
Grips
NS Silicone Lite
Headset
FSA NO.42/47/ACB
Seat
Saddle
Fizik Antares R3
Seatpost
Fox Transfer SL Factory, 100mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.31 mm | 1.246 mm | 1.212 mm | 1.2 mm |
| Bottom Bracket Height | 319 mm | 319 mm | 319 mm | 319 mm |
| Front Center | 725 mm | 759 mm | 789 mm | 817 mm |
| Rake | 11 mm | 11 mm | 10 mm | 10 mm |
| Trail | 147 mm | 147 mm | 148 mm | 148 mm |
| Stack | 583 mm | 592 mm | 606 mm | 624 mm |
| Reach | 445 mm | 475 mm | 500 mm | 520 mm |
| Top Tube Length | 579 mm | 612 mm | 640 mm | 664 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 410 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1159 mm | 1193 mm | 1223 mm | 1251 mm |
| Bottom Bracket Drop | -45 mm | -45 mm | -45 mm | -45 mm |
| Standover Height | 742 mm | 741 mm | 742 mm | 743 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
