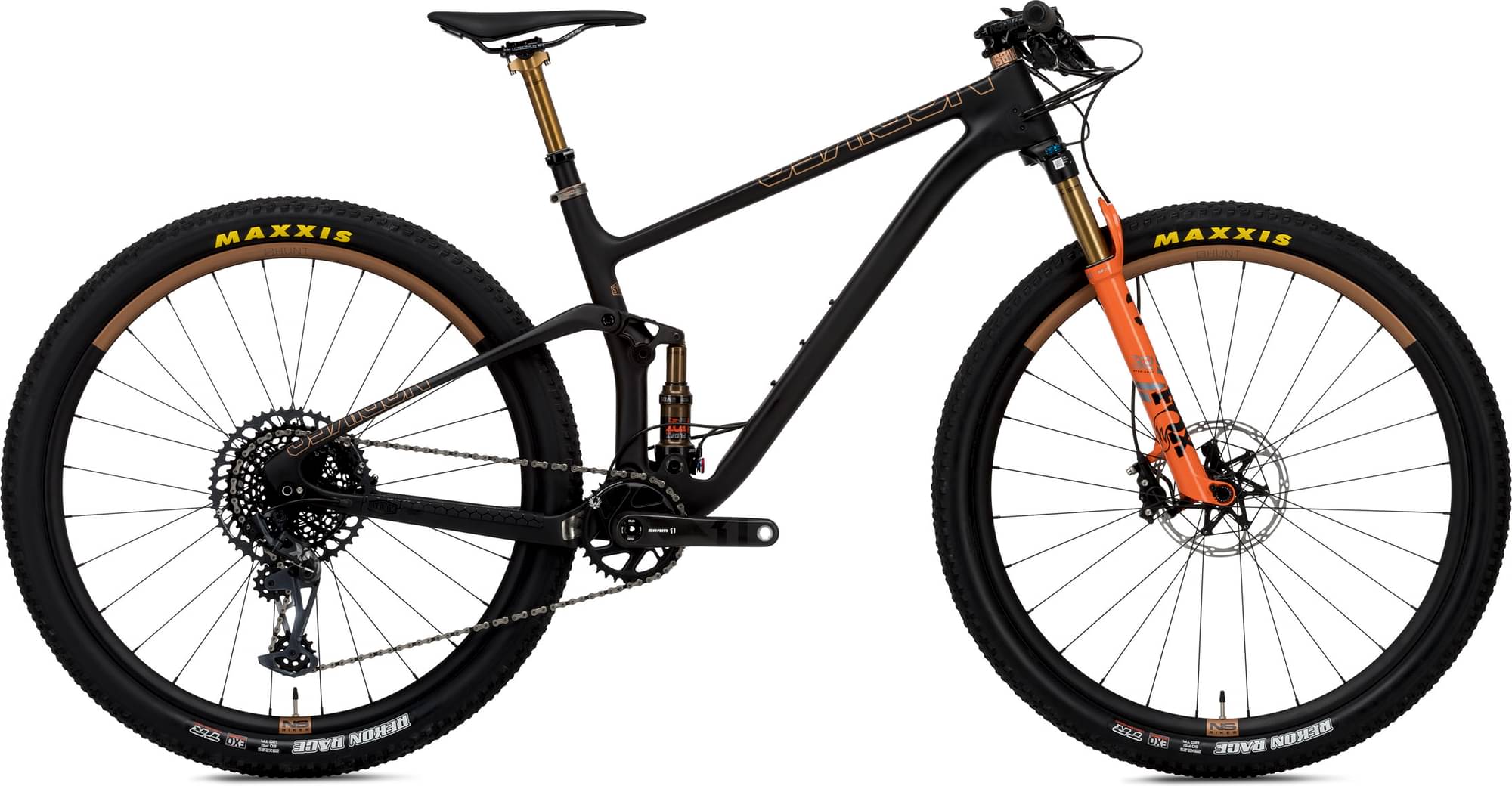

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Factory Float 32
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes SRAM Level TL Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NS Synonym, superlite carbon fibre w/ 100mm travel
Suspension Fork
Fox Factory 32 Step Cast Float FIT4, 100mm travel, 2pos remote lockout w/ Open Mode Adj, push-to-unlock, 15x110mm Boost, 1.5 tapered steerer tube, 44 offset
Rear Shock
Fox Factory Float DPS 2pos remote lockout, push-to-unlock, Evol LV Trunnion 165x37.5
Drivetrain
Shift Levers
SRAM GX Eagle, 12spd
Cassette
SRAM XG-1295, 10-50t 12 speed
Crank
Truvativ X1 Carbon DUB 170mm 34t (XL size 175mm)
Bottom Bracket
SRAM DUB Press Fit BB92
Chain
SRAM, 12 spd
Chain Guide
/
Pedals
/
Wheels
Front Hub
NSBikes x Hunt straight pull 110x15mm Boost (sealed bearings)
Rear Hub
NSBikes x Hunt straight pull 148x12mm Boost (sealed bearings)
Rims
NSBikes x Hunt 29", 32h, tubeless ready
Spokes
Straight Pull Spokes
Tires
Maxxis Ikon 2.2 TR / Recon Race 2.25 EXO/TR
Brakes
Brakes
SRAM Level TL, 180mm
Cockpit
Stem
Synonym Race 31.8 (S:60, M:70, L & XL:80mm), angle - 8°
Handlebar
NS Licence Carbon Flat Lite 31.8, 750mm
Grips
NS Silicone Lite
Headset
FSA NO.42/47/ACB
Seat
Saddle
Fizik Antares R3
Seatpost
Fox Transfer SL Factory, 100mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.31 mm | 1.246 mm | 1.212 mm | 1.2 mm |
| Bottom Bracket Height | 319 mm | 319 mm | 319 mm | 319 mm |
| Front Center | 725 mm | 759 mm | 789 mm | 817 mm |
| Rake | 11 mm | 11 mm | 10 mm | 10 mm |
| Trail | 147 mm | 147 mm | 148 mm | 148 mm |
| Stack | 583 mm | 592 mm | 606 mm | 624 mm |
| Reach | 445 mm | 475 mm | 500 mm | 520 mm |
| Top Tube Length | 579 mm | 612 mm | 640 mm | 664 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 410 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1159 mm | 1193 mm | 1223 mm | 1251 mm |
| Bottom Bracket Drop | -45 mm | -45 mm | -45 mm | -45 mm |
| Standover Height | 742 mm | 741 mm | 742 mm | 743 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
