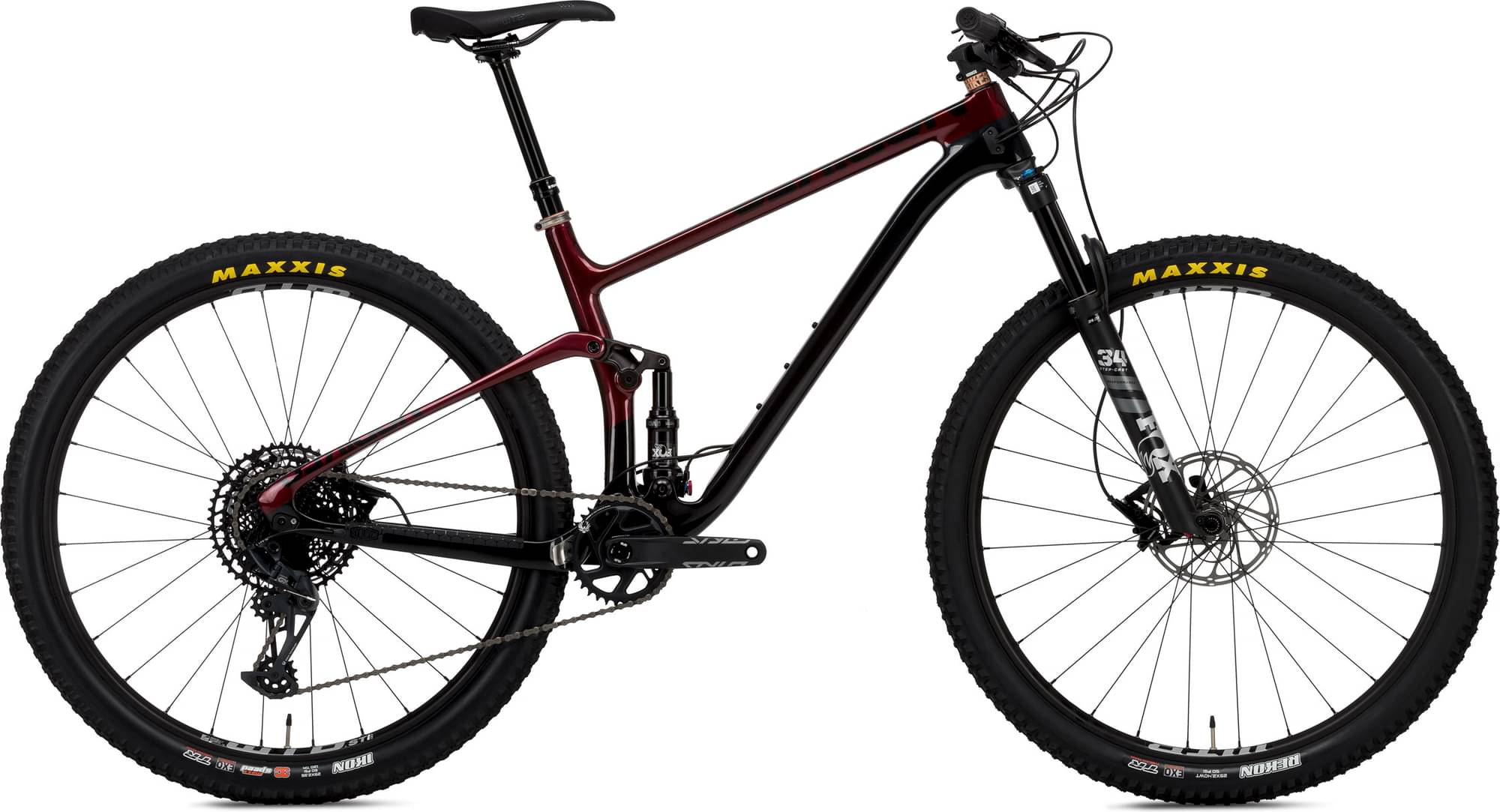

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Performance Float 34
-
Groupset NX Eagle, Truvativ Stylo -
Suspension Full -
Drivetrain 1 × 12 -
Brakes SRAM Level T Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NS Synonym, superlite carbon fibre w/ 120mm travel
Suspension Fork
Fox Performance 34 Step Cast Float Grip, 120mm travel, 2pos remote lockout w/ Open Mode Adj, push-to-unlock, 15x110mm Boost, 1.5 tapered steerer tube, 44mm offset
Rear Shock
Fox Performance Elite Float DPS 2pos remote lockout, push-to-unlock, Evol LV Trunnion 165x42.5
Drivetrain
Shift Levers
SRAM NX Eagle, 12spd
Cassette
SRAM PG-1210, 10-50t 12 speed
Crank
Truvativ STYLO 7K DUB 170mm 34t (XL size 175mm)
Bottom Bracket
SRAM DUB Press Fit BB92
Chain
SRAM, 12 spd
Chain Guide
/
Pedals
/
Wheels
Front Hub
NS Rotary Straight Pull 15 Boost 15x110 disc (sealed bearings)
Rear Hub
NS Rotary Straight Pull Cassette 148x12mm Boost (sealed bearings)
Rims
WTB ST Light i25 TCS 2.0 29”, 28h, tubeless compatible
Spokes
Straight Pull Spokes
Tires
Maxxis Recon 2.4WT EXO/TR / Maxxis Ikon 2.35 EXO/TR
Brakes
Brakes
SRAM Level T, 180mm
Cockpit
Stem
Synonym Trail 31.8 (S: 50, M, L & XL: 60mm), angle +5°
Handlebar
NS Licence Mini Rise Lite 31.8, 760mm, 15mm rise
Grips
NS Hold Fast supersoft
Headset
FSA NO.42/47/ACB
Seat
Saddle
WTB Volt Medium Cromoly
Seatpost
Race Face Aeffect R internal S: 120mm, M, L, XL: 150mm 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.353 mm | 1.285 mm | 1.251 mm | 1.237 mm |
| Bottom Bracket Height | 326 mm | 326 mm | 326 mm | 326 mm |
| Front Center | 732 mm | 766 mm | 796 mm | 824 mm |
| Rake | 14 mm | 14 mm | 13 mm | 13 mm |
| Trail | 151 mm | 151 mm | 153 mm | 153 mm |
| Stack | 590 mm | 599 mm | 614 mm | 632 mm |
| Reach | 436 mm | 466 mm | 491 mm | 511 mm |
| Top Tube Length | 582 mm | 615 mm | 644 mm | 667 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 410 mm | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1167 mm | 1201 mm | 1232 mm | 1260 mm |
| Bottom Bracket Drop | -38 mm | -38 mm | -38 mm | -38 mm |
| Standover Height | 754 mm | 753 mm | 753 mm | 754 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
