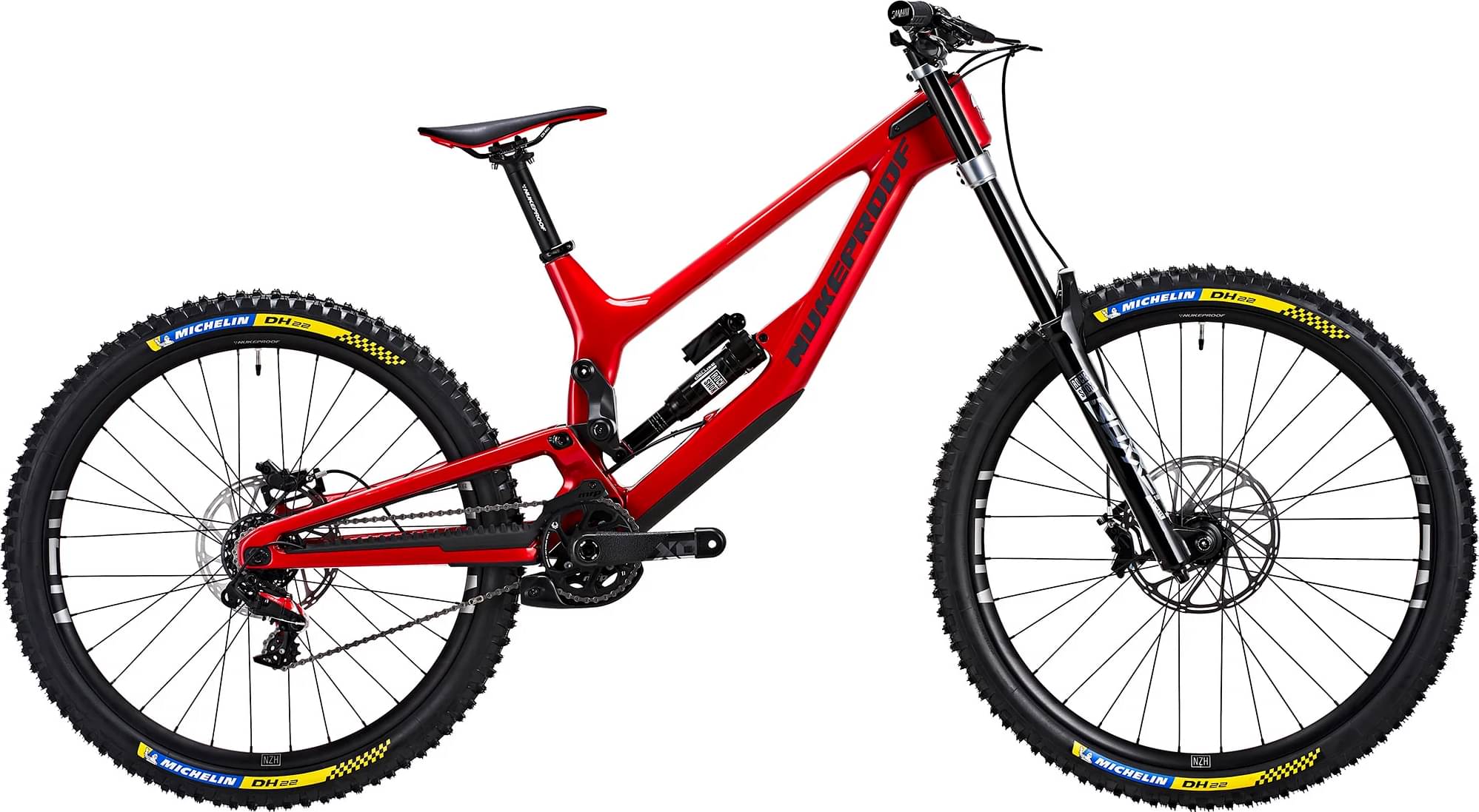

Nukeproof Dissent Carbon 297 RS 2024
2024 Mountain
Estimate price |
8,128$
Weight | 16.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 200mm -
Travel Rear 200mm -
Fork RockShox BoXXer Ultimate
-
Groupset X01 -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nukeproof Dissent 297 Carbon, 200mm Travel, ultra-strong monocoque UD Carbon Fibre DH Specific frame. With adjustable 3 position progression settings, +/6mm Reach, Chain Stay length Flip Chip and rear wheel 297/290 Flip Chip. Internally piped cable routing, ISCG 05 mounts, Enduro Bearings, Threaded 83mm BB, Boost 157x12mm rear axle spacing, 3D contoured Rubber frame protection and factory fitted clear paint protection kit.
Suspension Fork
RockShox Boxxer Ultimate, Charger 2, RC2 World Cup, 29", 200mm travel, 46mm Offset, BOOST 20x110mm, Debonair, Boxxer Red
Rear Shock
RockShox Super Deluxe Ultimate Air, 250X75mm, Bearing End, Custom Tune 0L2 LNL SB C1
Drivetrain
Rear Derailleur
SRAM XO1 DH 7-Speed
Shift Levers
SRAM XO1 7-Speed
Cassette
SRAM GX DH 7-Speed, PG720 11-25T
Crank
SRAM XO1 DH Carbon X-Sync, 165mm, 34T, DUB83mm
Bottom Bracket
BSA, 83mm, threaded
Chain
SRAM PC-1110 11-Speed
Chain Guide
MRP G4 CS 34-38T ISCG 05
Wheels
Rims
Front: Nukeproof Horizon V2 29", 20x110mm Boost, Rear: Nukeproof Horizon V2 27.5", HG Freehub, 157x12mm Boost
Tires
Front: Michelin DH22 29”x2.4, TLR/ Rear: Michelin DH22 27.5”x2.4, TLR.
Brakes
Brakes
SRAM Code R, Sintered pads
Cockpit
Stem
Nukeproof Horizon Direct Mount, 31.8mm, 45mm, Black
Handlebar
Nukeproof Horizon V2, 31.8mm, 25mm Rise, Width - NP1/780mm, NP2/L800mm, NP3/XL800mm
Grips
Nukeproof Sam Hill Signature
Headset
Nukeproof, ZS56/56, 1 1/8", +/-6mm
Seat
Saddle
Nukeproof Vector DH Comp
Seatpost
Nukeproof Neutron, 31.6mm, 300mm, 0mm Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM/MD | MD/LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.379 mm | 1.331 mm | 1.285 mm |
| Bottom Bracket Height | 360 mm | 360 mm | 360 mm |
| Front Center | 806 mm | 828 mm | 851 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 139.5 mm | 139.5 mm | 139.5 mm |
| Stack | 622 mm | 627 mm | 631 mm |
| Reach | 451 mm | 471 mm | 491 mm |
| Top Tube Length | 601 mm | 616 mm | 636 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 405 mm | 405 mm | 405 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1251 mm | 1273 mm | 1295 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm |
| Standover Height | 705 mm | 705 mm | 705 mm |
| Front Travel | 200 mm | 200 mm | 200 mm |
| Wheels | 29" | 29" | 29" |
