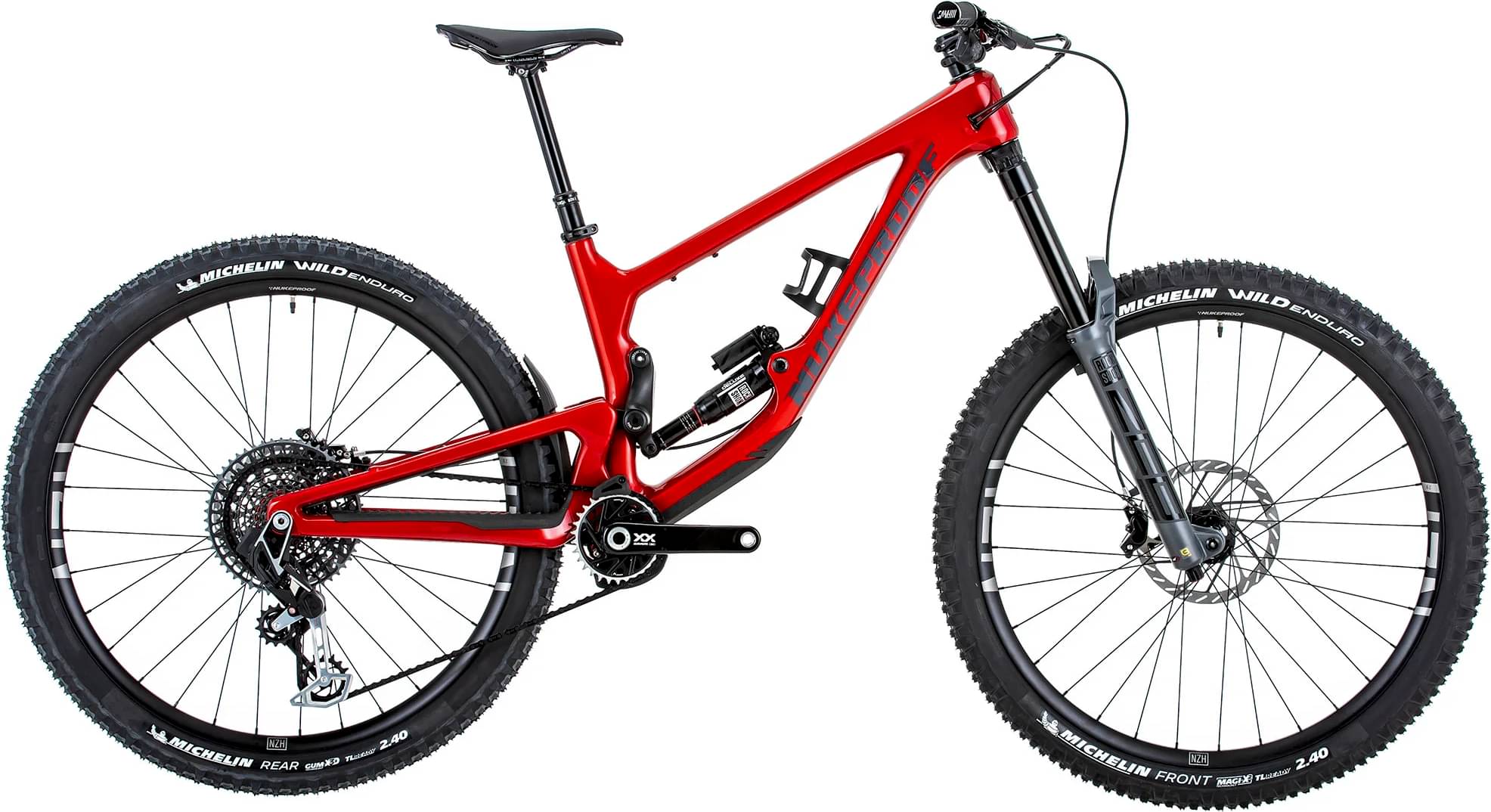

Nukeproof Giga 290 Carbon RS 2024
2024 Mountain
Estimate price |
8,805$
Weight | 14.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 180mm -
Travel Rear 170mm -
Fork RockShox ZEB Ultimate
-
Groupset XX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nukeproof Giga 290 Carbon, 170mm Travel, ultra-strong monocoque UD Carbon Fibre frame, adjustable main pivot, internally piped cable routing, ISCG 05 mounts, Enduro Bearings, Threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured Rubber frame protection and Factory fitted clear paint protection kit covering TT/DT/CS/SS
Suspension Fork
RockShox Zeb Ultimate Charger 3 RC2, 180mm, 44mm Offset, BOOST, Debonair, Black
Rear Shock
RockShox Super Deluxe Ultimate Air, Custom Tune, M – 0L1 LNL 32TB C1 / L/XL/XXL - 0L1 LNM 32TB C1, 205x60mm
Drivetrain
Rear Derailleur
SRAM XX Eagle, AXS T-Type, 12-Speed, Black
Shift Levers
SRAM AXS POD Ultimate, T-Type, 12-speed
Cassette
SRAM XO Eagle, T-Type, 12-Speed, CS-1295, 10-52T
Crank
SRAM XX Carbon Eagle, T-Type, 12-Speed, 170mm, 30T, DUB, 55mm CL
Bottom Bracket
BSA, 73mm, threaded
Chain
SRAM XO Eagle, T-Type, 12-Speed. Flattop, PowerLock
Chain Guide
Nukeproof guide with Bash, 28-36T, ISCG-05, 55mm CL, Black
Wheels
Rims
Front: Nukeproof Horizon V2, 29", 6 Bolt, 110x15mm, Rear: Nukeproof Horizon V2, 29", 6 Bolt, XD Driver, 148x12mm
Tires
Front: Michelin Wild Enduro 29" x 2.4, MAGI-X TS TLR, Rear: Michelin Wild Enduro 29" x 2.4, GUM-X TS TLR
Brakes
Brakes
SRAM Code RSC, Sintered pads
Cockpit
Stem
Nukeproof Horizon, 45mm, Black
Handlebar
Nukeproof Horizon Carbon V2 25mm Rise, Width - M780mm, L/XL/XXL800mm
Grips
Nukeproof Sam Hill Signature
Headset
Nukeproof, 44-56 IITS
Seat
Saddle
Nukeproof
Seatpost
Bikeyoke Revive Stealth with Triggy 1x Remote, 31.6mm; M:160mm drop; L:185mm drop; XL/XXL:213mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.447 mm | 1.368 mm | 1.329 mm | 1.293 mm | 1.261 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 768.03 mm | 793.03 mm | 817.42 mm | 841.8 mm | 866.18 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 136.17 mm | 136.17 mm | 136.17 mm | 136.17 mm | 136.17 mm |
| Stack | 622.26 mm | 622.26 mm | 631.25 mm | 640.24 mm | 649.23 mm |
| Reach | 430 mm | 455 mm | 475 mm | 495 mm | 515 mm |
| Top Tube Length | 565.11 mm | 590.11 mm | 609.18 mm | 631.09 mm | 653 mm |
| Seat Tube Angle | 77.75 ° | 77.75 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 460 mm | 480 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1216 mm | 1241 mm | 1265 mm | 1290 mm | 1314 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 702 mm | 710 mm | 729 mm | 734 mm | 750 mm |
| Front Travel | 180 mm | 180 mm | 180 mm | 180 mm | 180 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
